2.1mm Barrel Jack Socket with Integrated Rocker Switch

SWT15

$3.00

USD

Qty
Price
1
$3.00 ea.
2+
$2.70 ea.
5+
$2.55 ea.

Step right up folks and check out the freak show, in cage #1 we have the 2.1mm Barrel socket with rocker wwitch! Who would have thought such a combination existed? Yet, it seems almost beautiful in it's design.


Description [Hide]

Looking to provide lots of power to your Freeduino, Multipack, or other circuit with a 2.1mm barrel jack socket footprint? Want to save on PCB space or just don't have room for a larger switch that can handle more power? The SWT15 is right up your alley, having a 2.1mm barrel jack socket plus a 2.5A-rated power switch built into one unit, it solves a lot of design problems. If you want a bit higher current rating, check out our SWT14, with similar functionality!

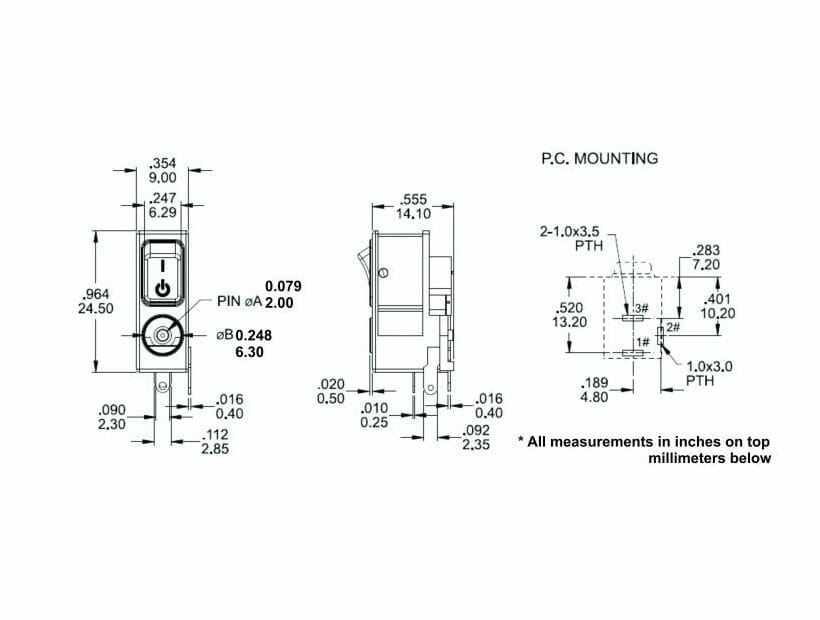

Note: The specifications show the pin inside barrel socket is actually 2.0mm but is fully compatible with the more common 2.1mm plug.

Specifications:

  • Electrical rating: 15VDC 2.5A
  • Contact Resistance: 20mOhm (initial)
  • Insulation Resistance: >1000 MOhm @ 500VDC
  • Dielectric Strength: >1500V @ 1 min.
  • Life: 6000 cycles
  • Contact material: Copper alloy with Silver plating
  • Switch Circuit: SPDT
  • RoHS compliant: Yes

Note: If mounted on an Arduino form factor board, it will likely render your board non-shield compatible without modification.
