If you're looking for a base for your next robot, look no further than the Rover 5. This 4 motor monstrosity takes any terrain by storm.... just don't take it out in a storm... please!

Description ^[Hide]

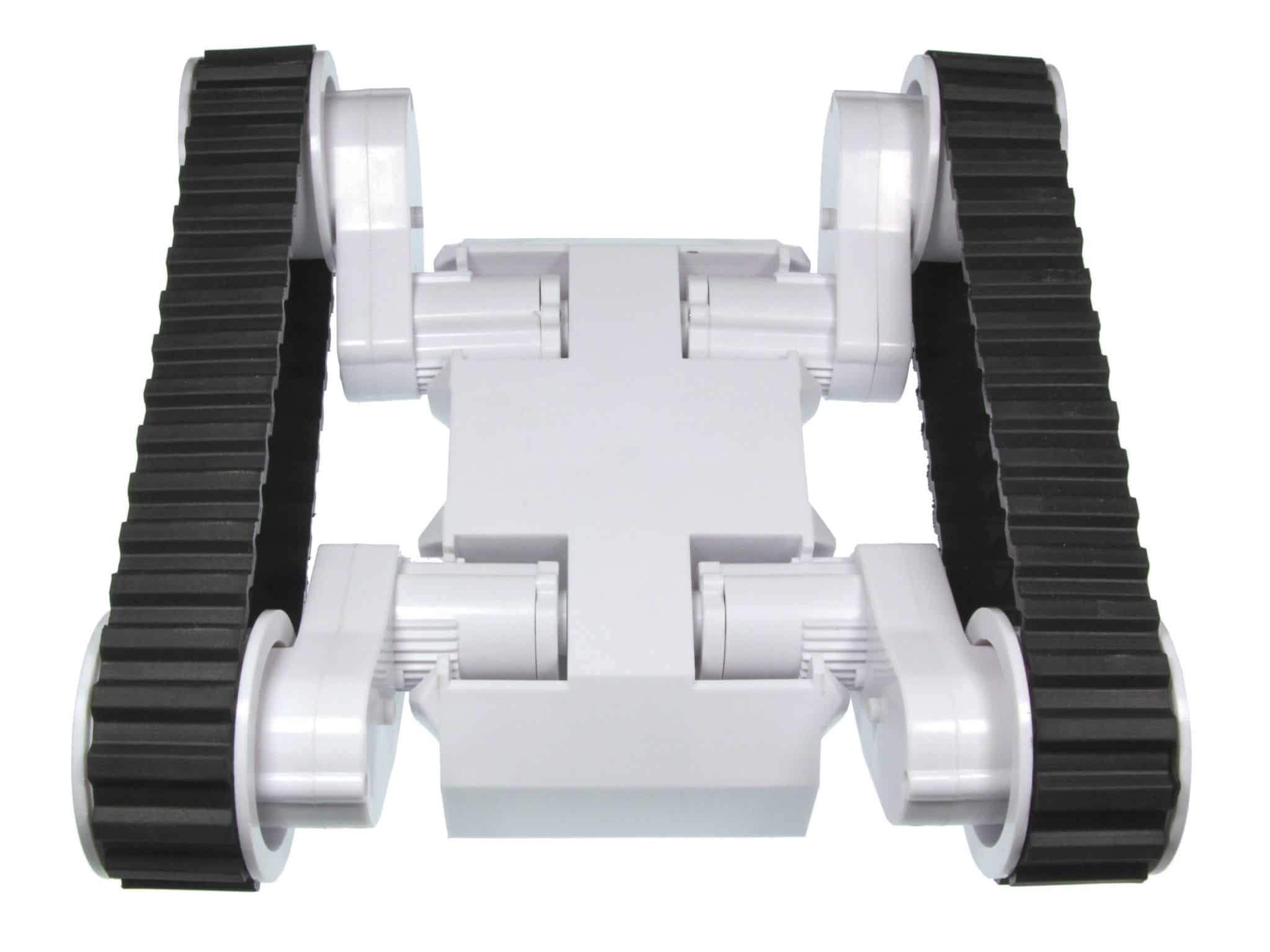

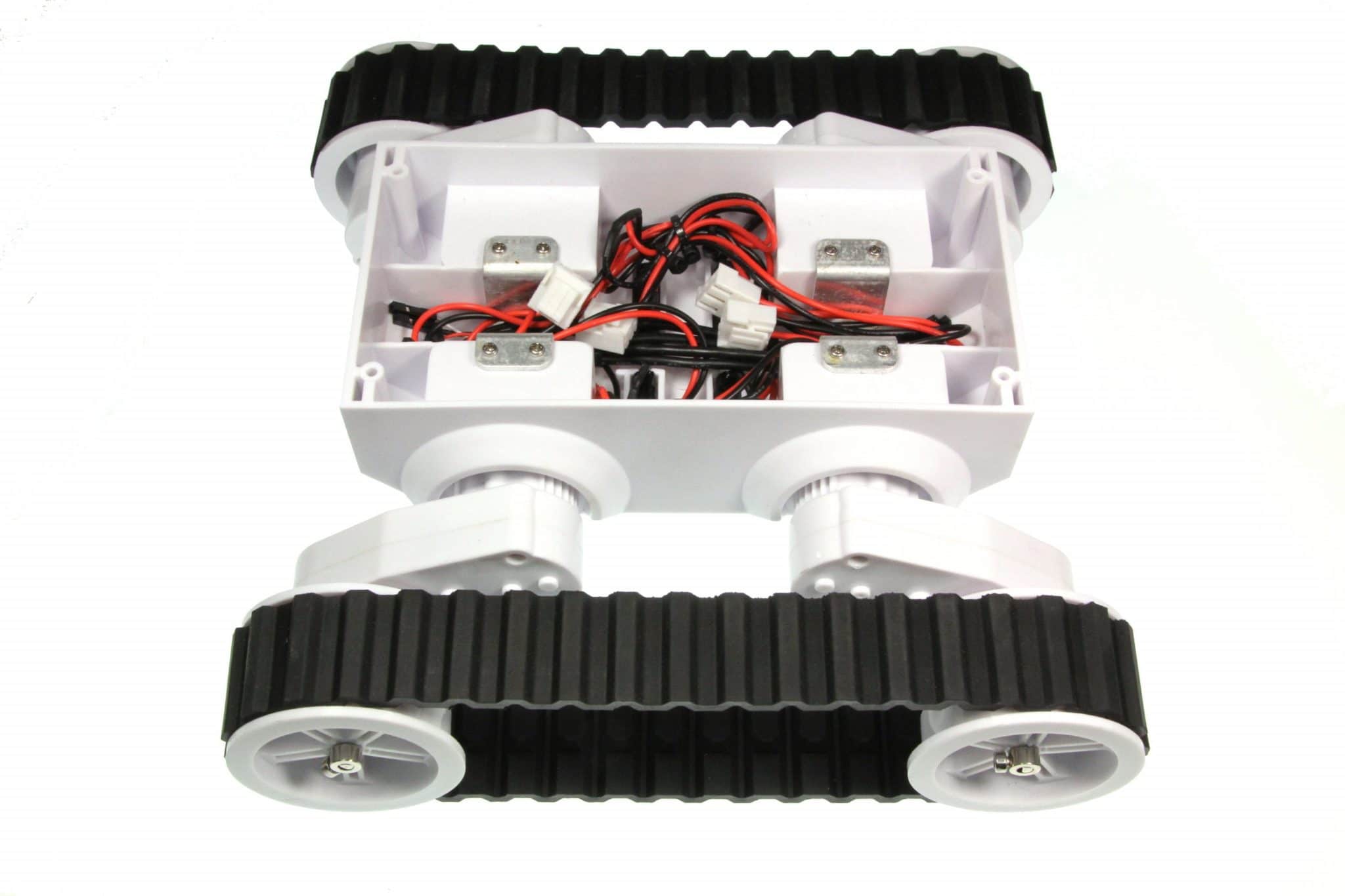

The Rover 5 uses 4 independent motors, each with an optical quadrature encoder and gearbox. The entire gearbox assembly can be rotated at 5 degree increments for different clearance configurations. You can even replace the tank treads with traditional wheels.

This isn't a wimpy or flimsy robot base. Weighing in at over 2.5 pounds without batteries, this base is heavy duty and can drive over quite a bit. Check the manual below for dimensional drawings.

Features:

Completely adjustable gear box angles for each motor
4 individually controlled DC Gear motors
4 independent optical encoders
Thick rubber tank treads
6 x 'AA' battery holder (total of 7.2V for rechargeables & 9V for Alkaline)
10Kg/cm stall torque per motor
Suppression coils attached to each motor
Replaceable hubs for swapping with wheels

Documents:
Quadrature Encoder Example

Documentation ^[Hide]

[Documentation]: Rover 5 Introduction
