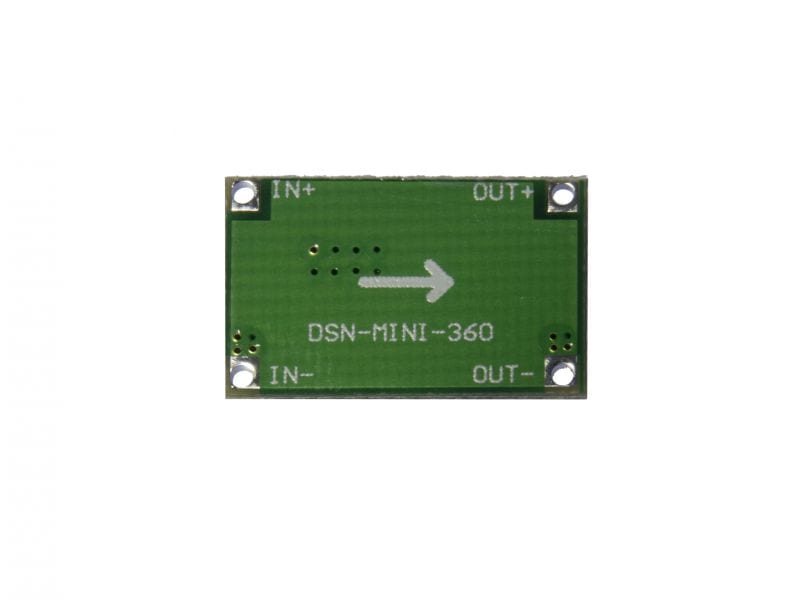

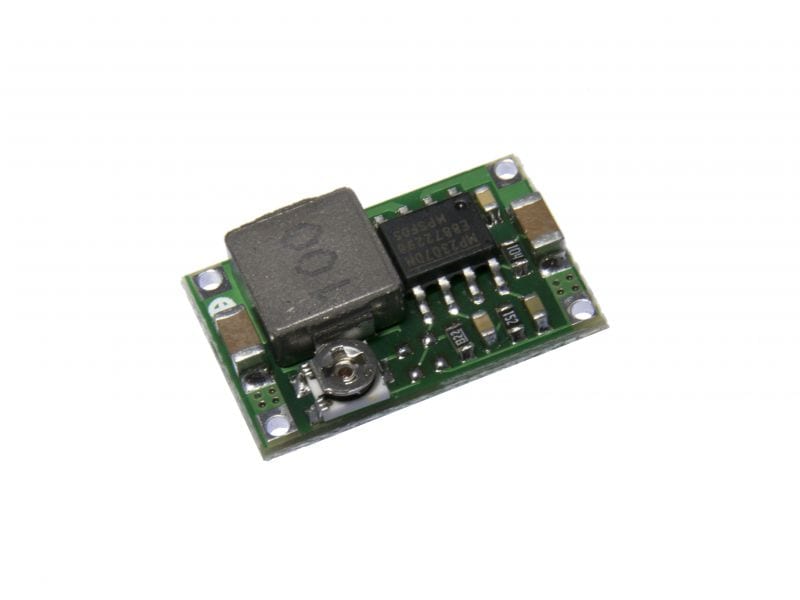

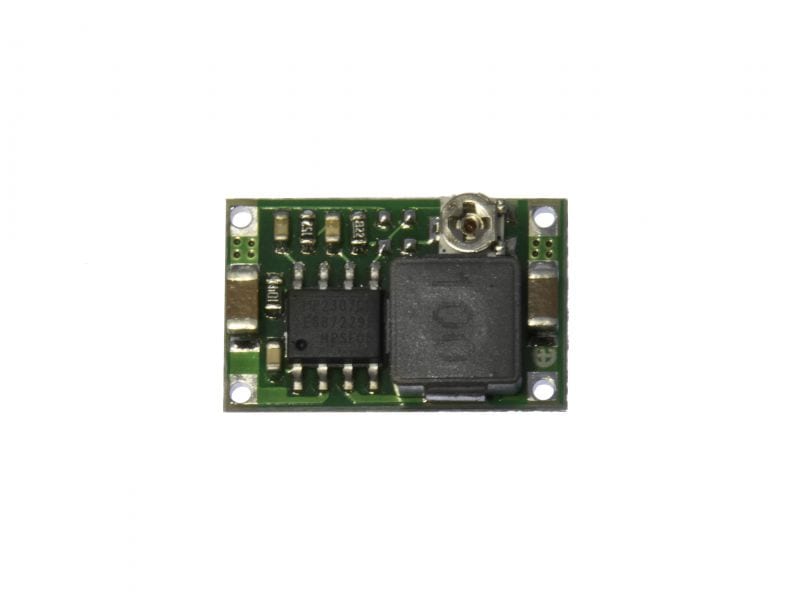

Mini-360 DC-DC Buck converter

40410

2.85 USD
Qty
Price
1
$2.85 ea.

Super compact and capable, this DC-DC buck converter can knock down a voltage from 23V to as low as 1V with up to 95% efficiency.


Description [Hide]

One of our engineers came by and showed off one of his latest finds, the Mini-360 DC-DC buck converter. He needed a small and efficient voltage-reduction circuit for a remote application, and this unit tests out quite well. Inexpensive enough to be worth having a few in the toolbox for emergency voltage regulation!

Specifications:

  • MPS MP2307DN buck regulator IC
  • 4.75 - 23VDC input voltage
  • 1.0 - 17VDC selectable output voltage
  • 3A surge current, 1.8A continuous rated current
  • Maximum conversion efficiency of 95% (5Vin, 3.3Vout ~200mA output)
  • 340kHz switching frequency
  • 30mV no-load output ripple
  • 0.5% load regulation
  • 2.5% voltage regulation
  • -40 to +85°C operational temperature range
  • Built-in 160°C thermal shutdown
  • 17x11x3.8mm (0.67x0.43x0.15")
