Phidgets SSR Relay

33040

$13.68

USD

Qty
Price
1
$13.68 ea.
25+
$13.25 ea.
100+
$12.78 ea.

Looking for a Phidgets 3052 SSR relay? Boy, do we have them! If you need Phidgets stuff, we're the place!


Description [Hide]

The Phidgets SSR relay board lets you switch up to 2.5 amps at 40VDC or 28VAC. That's some serious power. And it's solid-state! No relays to wear out or distract you with click noises!

Attach this bad-boy to any Phidget interface board digital output (like on the 8/8/8 or similar), and you can control some serious power!

Solid State Relays, or SSRs, are devices designed to operate like standard relays but without mechanical motion.

The SSR Board is safe to use with sensitive control devices like microprocessors, and will not damage a Phidget device or your PC. Optoisolation between the control inputs and outputs of the SSR in the form of a GaAs LED paired with a set of optically-controlled MOSFETs provides protection from output to input. An on-board 47V bidirectional transorb across the relay output protects the board from static electricity and surges from inductive loads.

Product Features

  • Switches up to 2.5 Amps at up to 40 Volts DC, or 28 Volts AC.
  • Can be used to control larger loads and devices like AC or DC motors, electromagnets, solenoids, and incandescent light bulbs.

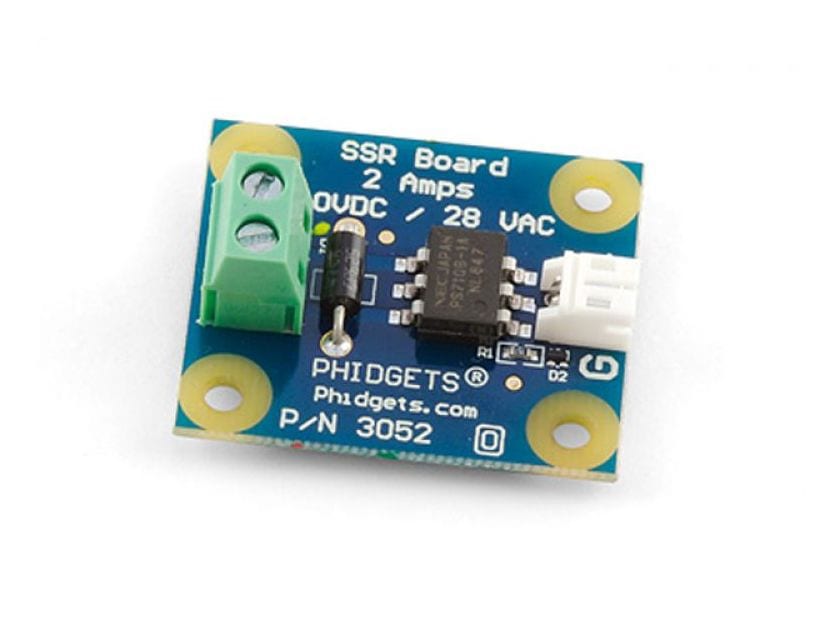

  • Note: Product now has screw-terminals on both sides, not quite as shown on the image

This relay board connects to a Digital Output on the:

PhidgetInterfaceKit 8/8/8
Phidgets White LCD with 8/8/8 Interface

Product Specifications

Output Contact on Resistance 0.05 ohms
Maximum DC Switching Voltage 40 VDC
Maximum AC Switching Voltage 28 VAC
Maximum Switching Current (AC or DC) 2.5A
Maximum Continuous Switching Current 2.5A
Maximum Pulsed Current (AC or DC, PW 100ms one shot) 5A
Maximum Switching Speed 20 cycles/second
