Pololu Dual VNH5019 Motor Driver Shield for Arduino

23220

52.95 USD
Qty
Price
1
$52.95 ea.
2+
$49.95 ea.

Pololu is known for some killer motor driver technology. They're bringing their mojo to the Arduino! Dual robust VNH5019 motor drivers take 5.5 to 24 V and punch out a continuous 12 A (30 A peak) per motor, or a continuous 24 A (60 A peak) to a single motor connected to both channels.


Description [Hide]

Pololu motor drivers are well-engineered and mapped out, and with this Arduino shield, patching the brains to brawn is now super-simple. These great drivers also offer current-sense feedback and accept ultrasonic PWM frequencies for quieter operation. The Arduino pin mappings can all be customized if the defaults are not convenient, and the motor driver control lines are broken out along the left side of the shield for general-purpose use without an Arduino.

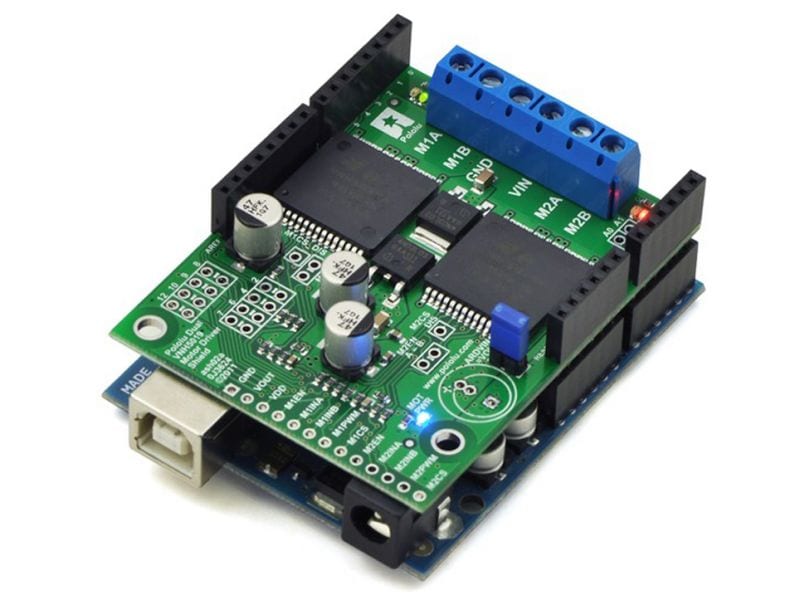

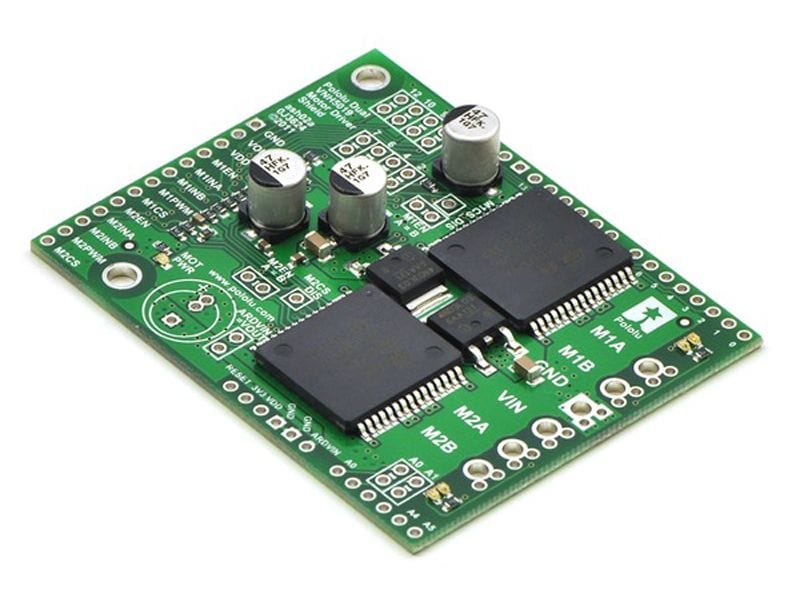

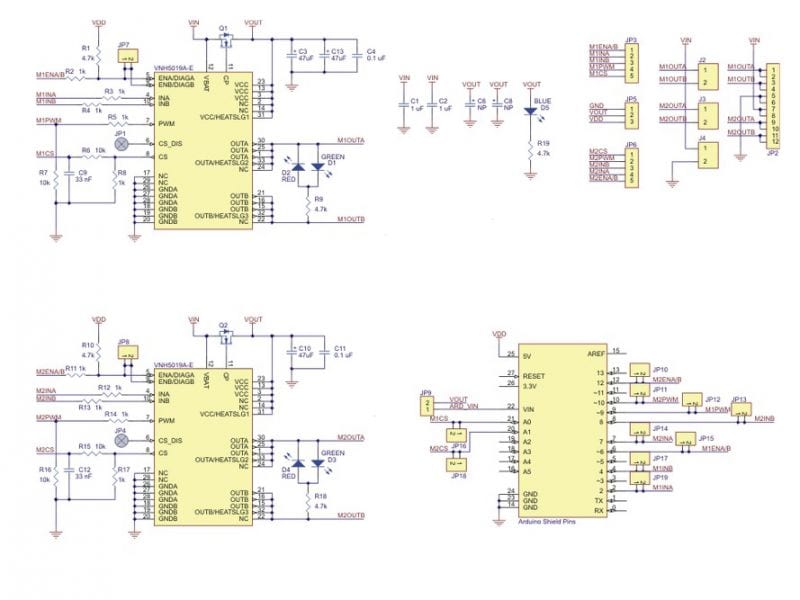

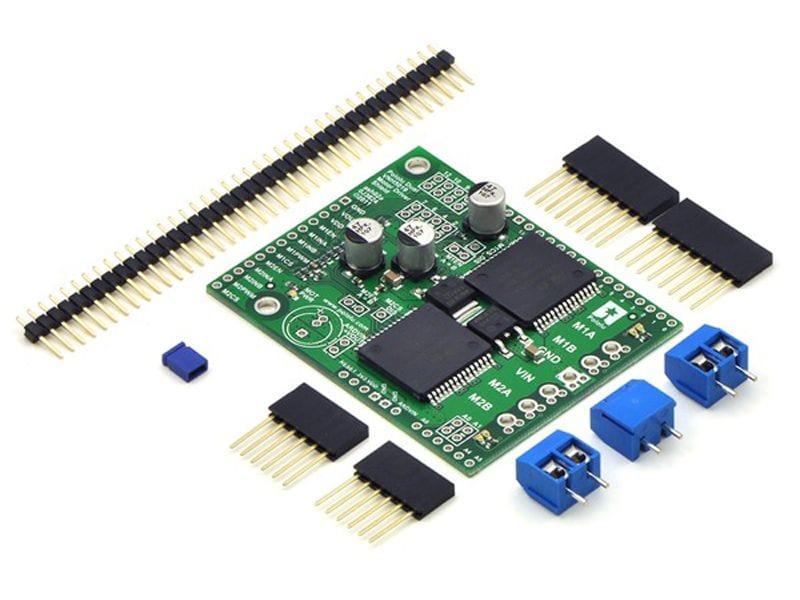

This motor driver shield and its corresponding Arduino library make it easy to control two bidirectional, high-power, brushed DC motors with an Arduino or Arduino clone. The board features a pair of robust VNH5019 motor drivers from ST, which operate from 5.5 to 24 V and can deliver a continuous 12 A (30 A peak) per channel, and incorporates most of the components of the typical application diagram on page 14 of the VNH5019 datasheet (629k pdf), including pull-up and protection resistors and FETs for reverse battery protection. It ships fully populated with its SMD components, including the two VNH5019 ICs, as shown in the picture to the right; stackable Arduino headers and terminal blocks for connecting motors and motor power are included but are not soldered in (see the Included Hardware section below).

This versatile motor driver is intended for a wide range of users, from beginners who just want a plug-and-play motor control solution for their Arduinos (and are okay with a little soldering) to experts who want to directly interface with ST’s great motor driver ICs. The Arduino pin mappings can all be customized if the defaults are not convenient, and the VNH5019 control lines are broken out along the left side of the board for general-purpose use without an Arduino (see the right connection diagram below). This versatility, along with an option to power the Arduino directly from the shield, sets this board apart from similar competing motor shields.

Data:

  • 2.56″ × 2.02″ × 0.38″ (without hardware)
  • 18g (without hardware)
  • Chipset: VNH5019
  • Motor Channels: 2
  • Operating Voltage: 5.5 - 24V (24V battery use not recommended)
  • Output Current/Channel: 12A (30A peak surge)
  • Current sensing: 0.14V per A
  • Maximum PWM frequency: 20kHz
