ULN2003 Stepper Motor Driver Board

22315

2.50 USD
Qty
Price
1
$2.50 ea.

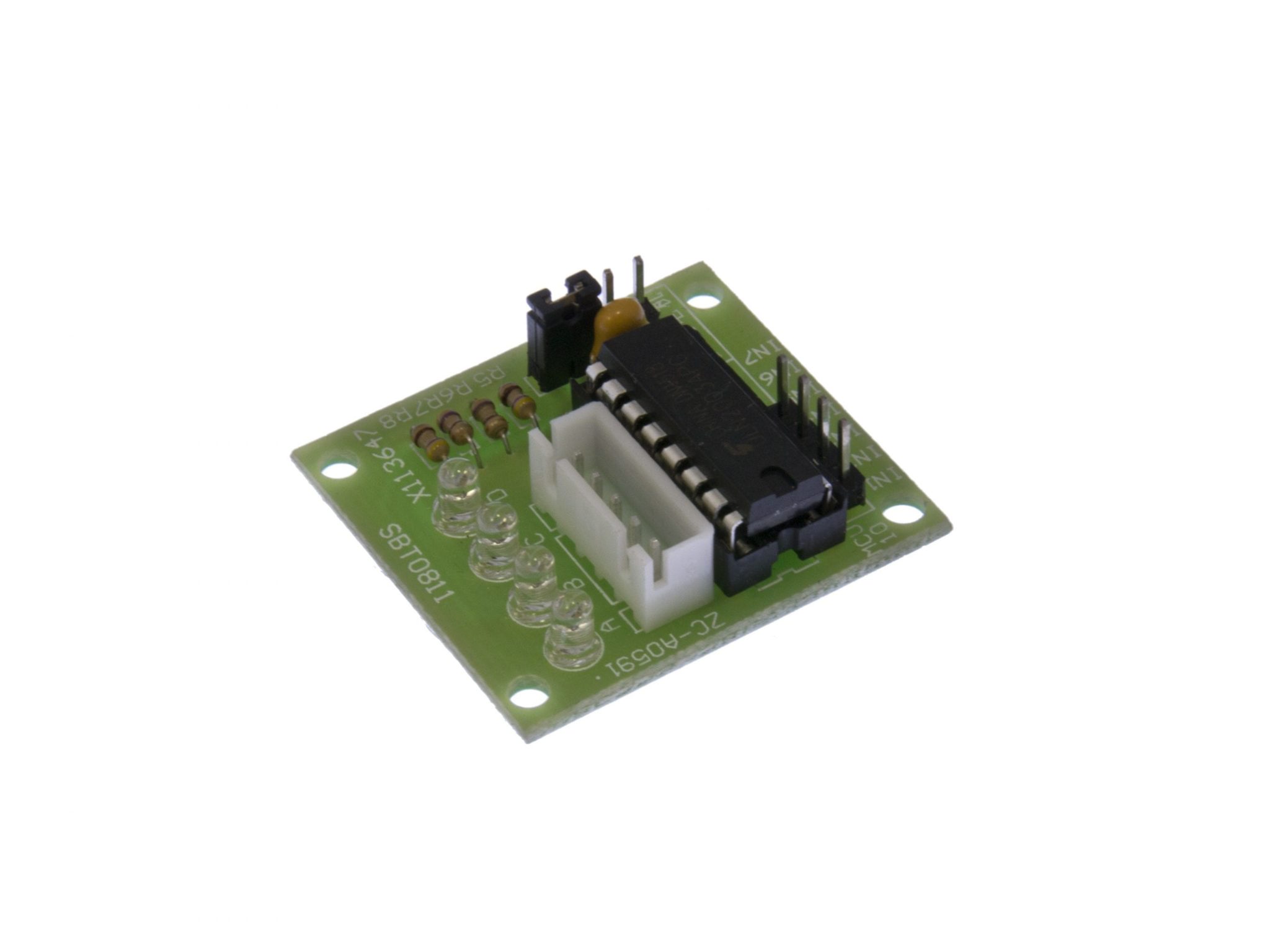

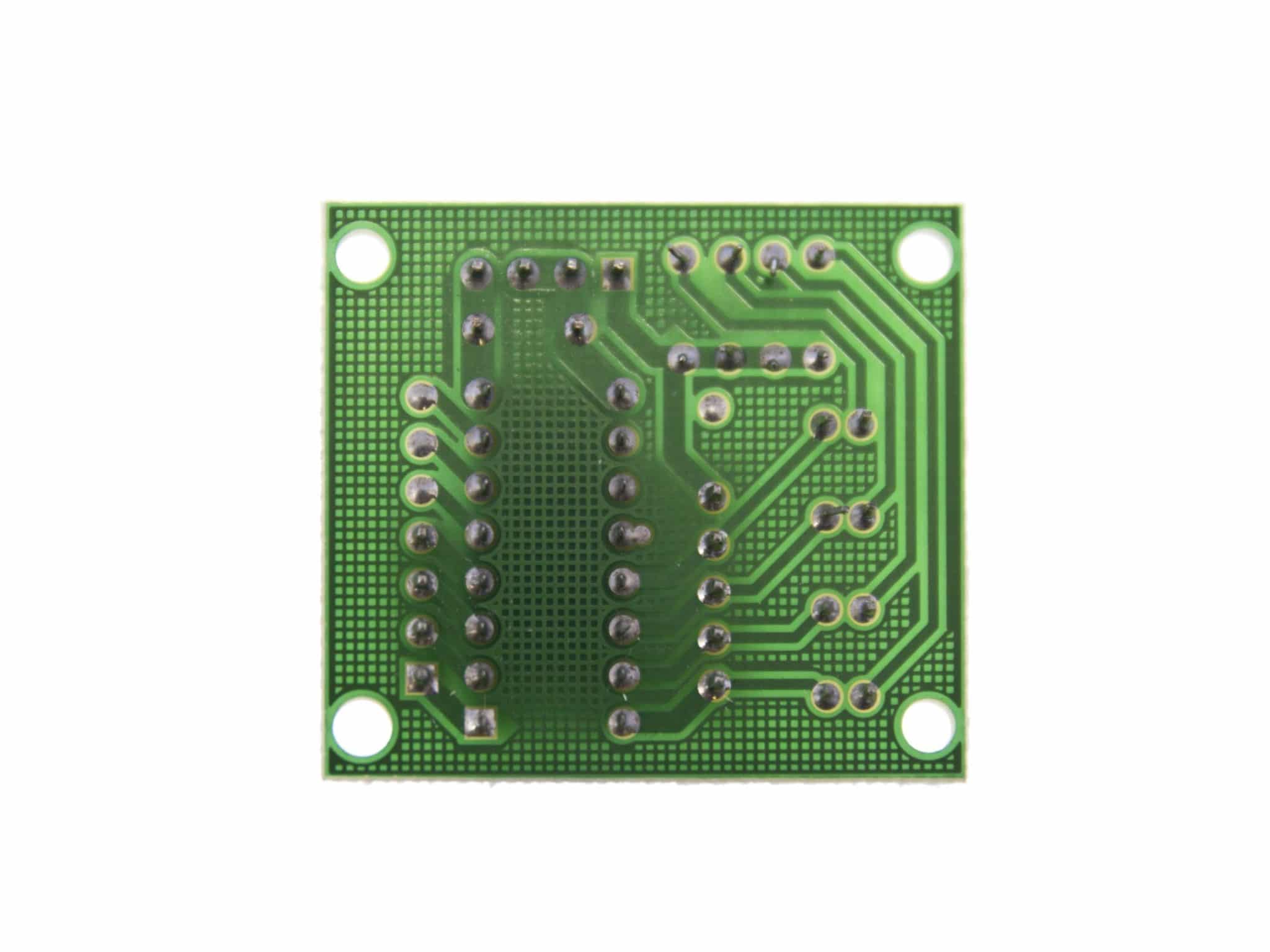

Based around the ULN20003, this tidy driver board is specifically designed to drive smaller unipolar stepper motors.


Description [Hide]

The ULN2003 is a convenient package of seven Darlington transistors, which means it's an easy way to drive up to seven loads up to 500mA to 50V maximum. This nice IC is mounted in a circuit board specifically designed to drive unipolar stepper motors, especially these 16:1 and 64:1 stepper gearmotors.

Stepper Motor Driver Features:

  • Uses well-proven ULN2003 driver IC
  • Maximum 500mA/channel (50V maximum)
  • Socketed for direct connection to the 22305 16:1 and 22310 64:1 stepper gear motors
  • Indictor LEDs show coil energization
  • 4 presoldered input channel pins
  • Works well with Arduino stepper and AccelStepper libraries
