Tamiya Twin Motor Gearbox Kit

22040

10.95 USD
Qty
Price
1
$10.95 ea.
2+
$10.40 ea.
25+
$8.21 ea.

The Tamiya Twin Motor Gearbox is a compact 2-motor package with integrated gearboxes. If you have an application for 2 motors in a tidy package, this is the what you require!


Description [Hide]

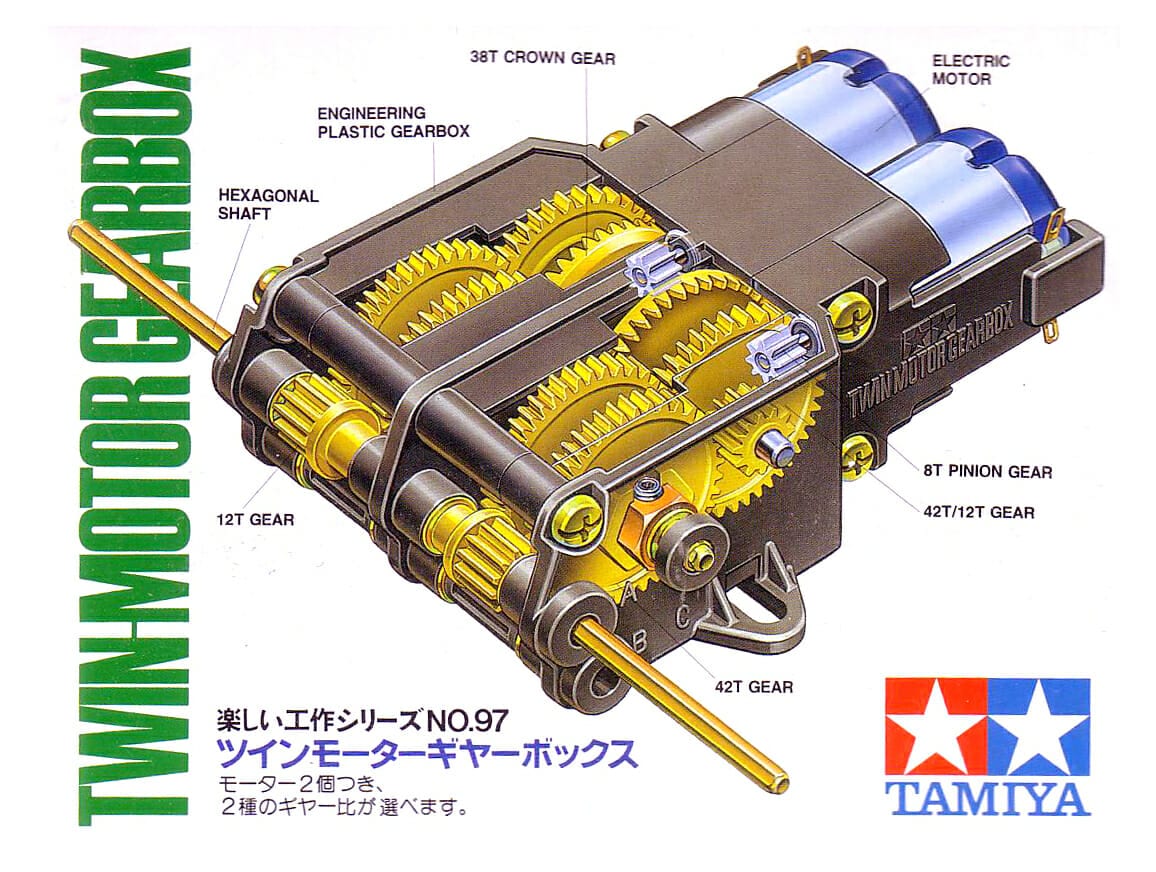

Tamiya's Twin Motor Gearbox is a dual drive train system kit that features two powerful DC motors arranged side-by-side into a tidy gearbox. This system makes for the smallest differential drive system around.

Build for speed or power, this unit measures just 3" long x 1.75" wide and comes complete with 2 motors rated for 3 VDC. No load current is approximately 200 mA/motor. Assembly required.

Use our L298 Motor Driver Kit to interface this motor directly to a microcontroller output pin.

Ratings (@3 VDC)

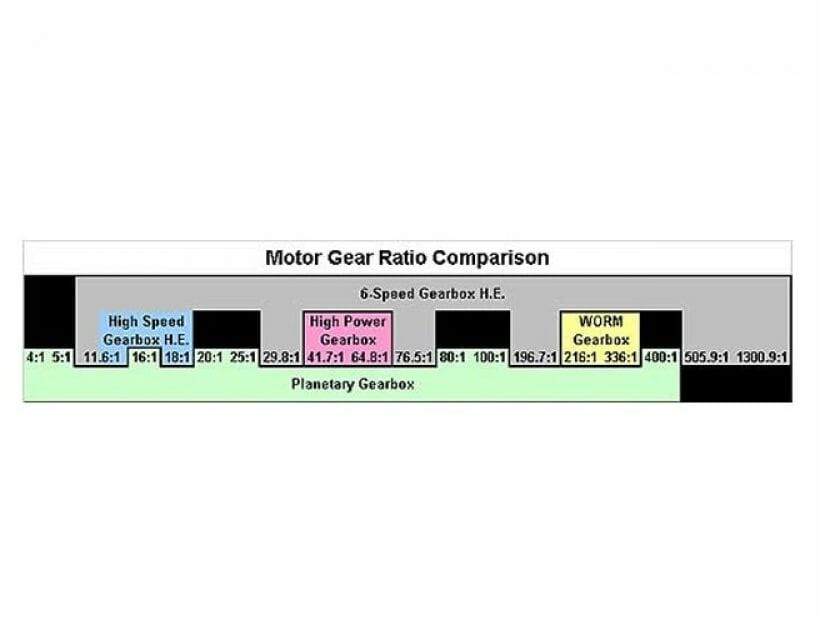

4 Configurations 58:1(Min) 203:1(Max)
Torque g-cm (oz-in) () ()
RPM 374 72
No Load Current Varies with gear ratio
Dimensions (mm) Body: 49 x 75 x 24 Shaft: 100
