SMTpads-Size1, 80x50mm, 200x100mil Pads, SMT Solder protobrd




$3.75 ea.

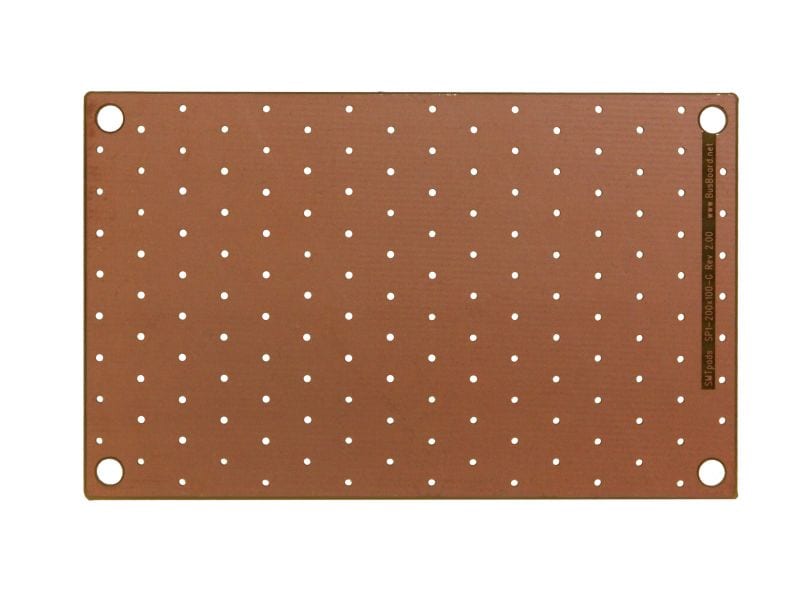

For REALLY large SMD devices, the 200x100mil pads on this smaller protoboard will make construction much easier. Has ground plane on other side.

Description [Hide]

If you're making your own circuits, you will come across the need for some surface-mount parts to be added to your design. Breadboard Prototyping Systems has made a series of boards that will make your task simpler!

These boards feature a square pad grid for 0402, 0603, 0805, 1206, and other SMT parts needing a ground plane.


  • Solid ground plane on reverse side provides easy ground connections for noise supression.

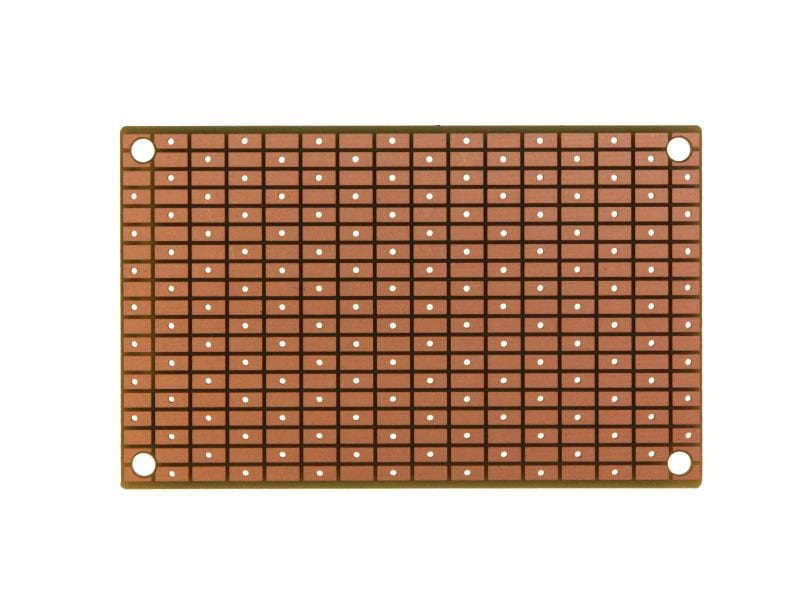

  • Grid designed with 0.180” x 0.080” rectangular pads on 0.200”/0.100” spacing
  • Pad grid fits 0402, 0603, 0805, 1206, SOT23
  • Unplated holes to the ground plane are spaced 4 pads apart for easy connection to the ground plane. Just insert a wire and solder both sides.
  • Lead free etched copper PCB with an anti-tarnish coating to preserve solderability.
  • Bridge pads or solder wires on pads to create traces wherever they are needed.
  • 1/32” thin PCB is easy to cut into smaller pieces.

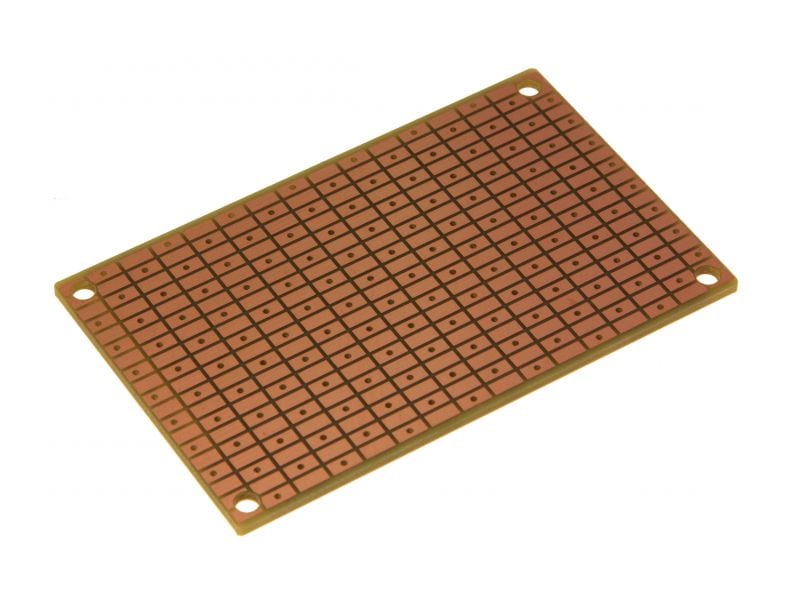

  • Busboard size 1 - 80 x 50 x 0.8mm (1.97 x 3.15 x 1/32") Standard single height (3U) Eurocard/VME size
  • 16 x 19 pad array
  • Four 0.125” mounting holes
  • High quality etched FR4 glass-epoxy circuit board. 1oz/ft2 copper.
  • Lead free copper PCB with an antitarnish coating for easy soldering. RoHS compliant.
