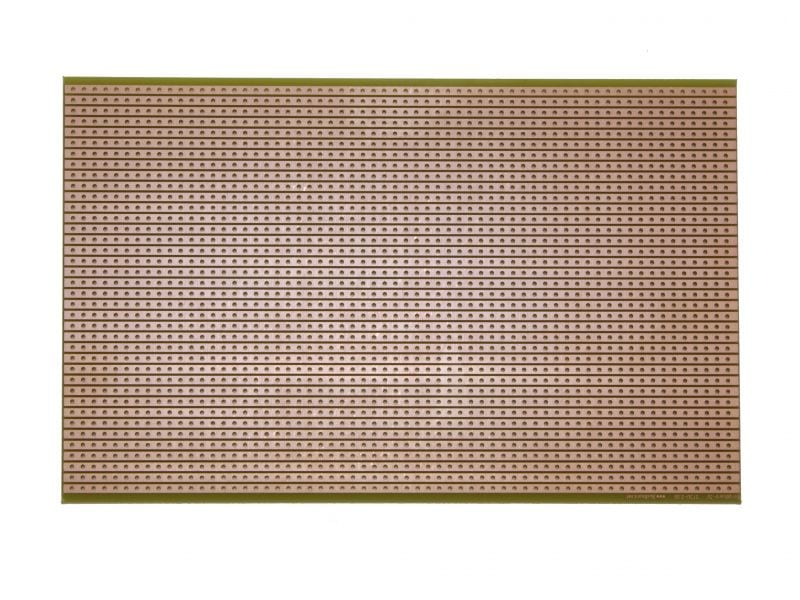

StripBoard-3U, 160x100mm Solder Protoboard
20934
10.78
USD
Qty
Price
1
$10.78 ea.
Stripboard make for fast prototyping for simple circuits.
Description [Hide]
Features:
- Full-length strips drilled with holes on 2.54mm (0.1") spacing
- High-quality FR4 glass epoxy substrate (much better than phenolic or synthetic resin bonded paper board)
- Size matches the standard 3U VME board
Specifications:
- Busboard Size 3: 160 x 100mm (6.3 x 3.9"), 1.6mm (1/16") thick
- Single-sided 1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.
- Holes are drilled on 0.1" (2.54mm) centers.
- 0.037" (0.94mm) holes sized for ICs or square post headers.
- 38 x 62 holes (in 38 strips). Four 0.125” mounting holes.
Documentation [Hide]
- [Documentation]: StripBoard-3U Rev 3.00
