ProtoBoard2H-3U, 2-hole Strips, 100x160mm Solder Protoboard
20926
10.78
USD
Qty
Price
1
$10.78 ea.
Long strips of copper too much for you? Complex zig-zags drive you nuts? Here's a nice compromise - solder prototyping with pairs of connected pads.
Description [Hide]

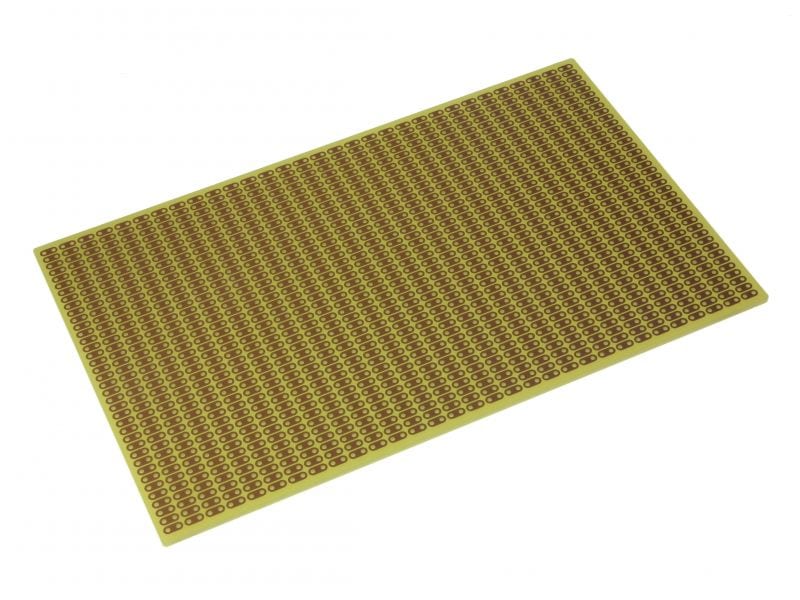

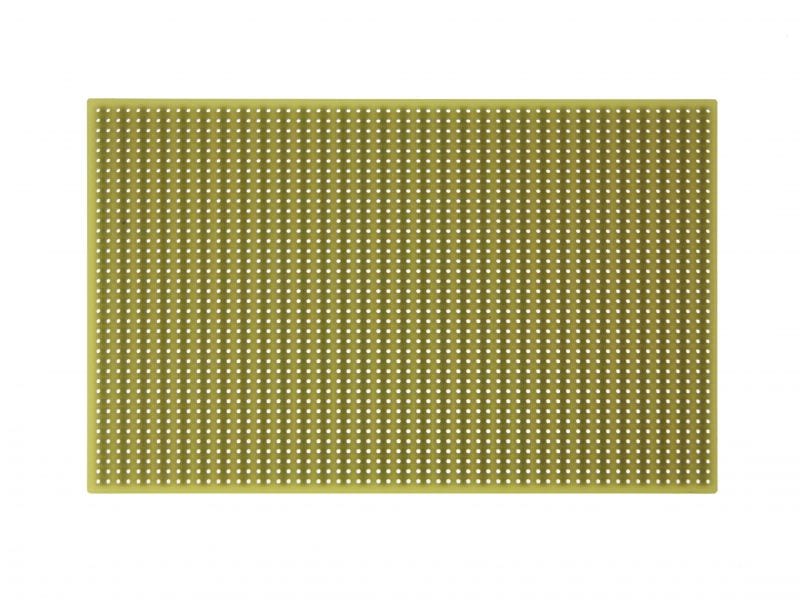

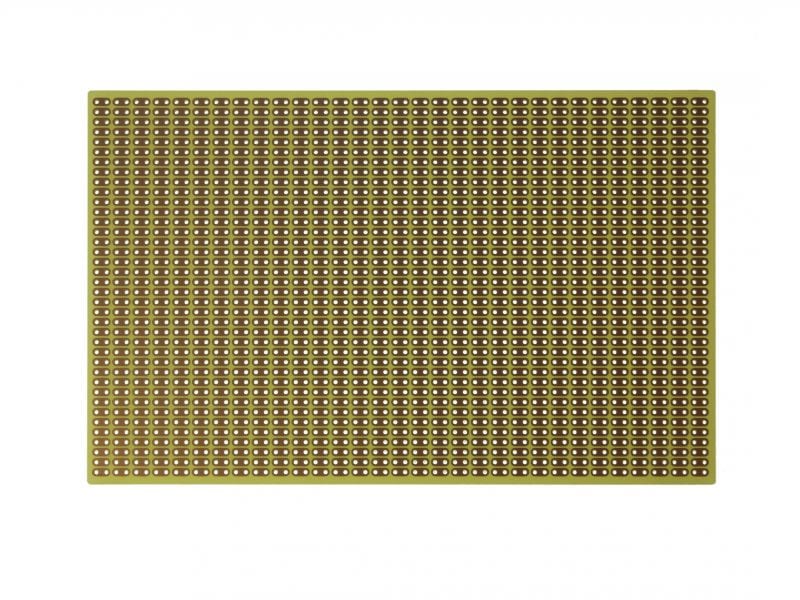

Not too complex, but just enough to make mounting parts and soldering connections easy. It's the BusBoard Prototyping Systems PR2H2 solder protoboard, with just 2 holes per segment.
Features:
- ProtoBoard-2H has a general purpose stripboard circuit pattern that is pre-cut with 2 holes per segment.
- 2.54mm (0.1") hole spacing for DIP integrated circuits and headers.
- Standard 3U size VME board.
- Four mounting holes for enclosure attachment.
Specifications:
- Etched FR4 glass-epoxy circuit board.
- Single sided, 1oz/ft 2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.
- Holes are drilled on 2.54mm (0.1") centers.
- 0.94mm (0.037") holes sized for ICs or square post headers.
- 38 x 62 holes (2356 total)
- 100 x 160mm (3.94 x6.3"), 1.6mm (1/16") thick
Documentation [Hide]
- [Documentation]: ProtoBoard2H-3U Rev 3.00
