ProtoBoard2H-1, 2-hole Strips, 1 sided, 50x80mm

20922

$3.11

USD

Qty
Price
1
$3.11 ea.

Long strips of copper too much for you? Complex zig-zags drive you nuts? Here's a nice compromise - solder prototyping with pairs of connected pads.


Description [Hide]

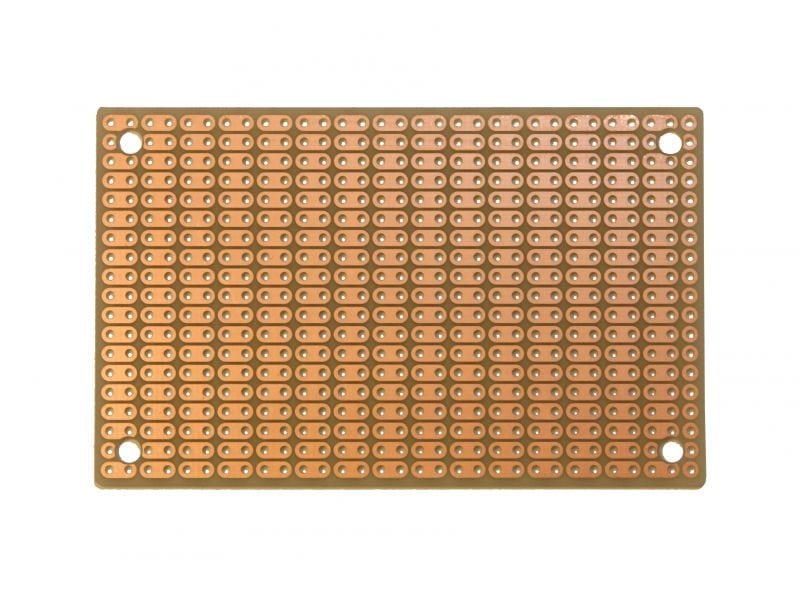

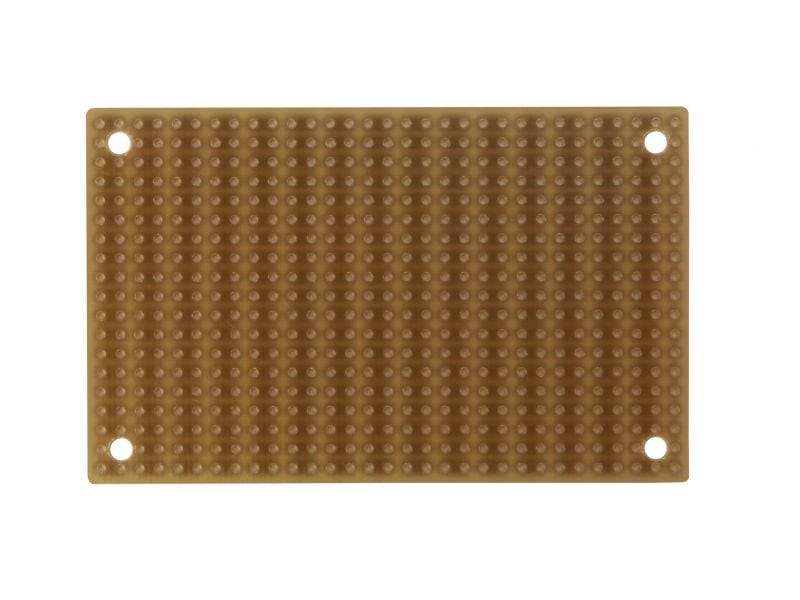

Not too complex, but just enough to make mounting parts and soldering connections easy. It's the BusBoard Prototyping Systems PR2H2 solder protoboard, with just 2 holes per segment.

Features:

  • ProtoBoard-2H has a general purpose stripboard circuit pattern that is pre-cut with 2 holes per segment.
  • 2.54mm (0.1") hole spacing for DIP integrated circuits and headers.
  • Busboard Size 1: 50 x 80mm (1.97 x 3.15in),  1.6mm (1/16") thick
  • Four mounting holes for enclosure attachment.

Specifications:

  • Etched FR4 glass-epoxy circuit board.
  • Single sided, 1oz/ft 2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.
  • Holes are drilled on 2.54mm (0.1") centers.
  • 0.94mm (0.037") holes sized for ICs or square post headers.
  • 31 x 19 holes (589 total), Four 0.125” mounting holes.
