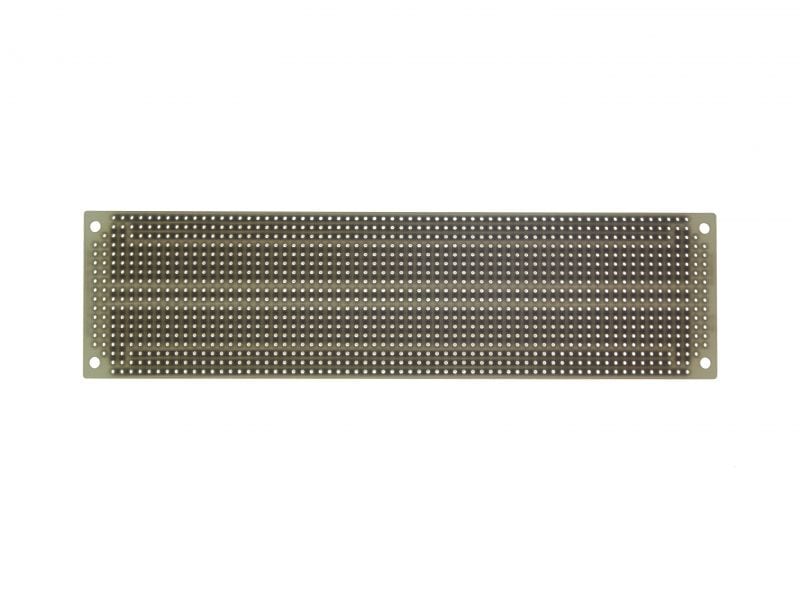

BR1 Solderable PC BreadBoard (single-panel compatible)

20910

6.50 USD
Qty
Price
1
$6.50 ea.

This bare solder protoboard matches a regular 1-panel PC breadboard, with outside-edge power rails.


Description [Hide]

You are done on the breadboarding, and now it's time to commit your design to solder! If you don't want to mess around re-jigging the wiring layout, just copy it to this cloned layout of a PC breadboard (with power-rails).

Specifications

  • 179 x 47.0mm (7.05 x 1.85") , 0.8mm (1/32") thick
  • Same pattern as a standard 830 connection point solderless plug-in breadboard.
  • Single-sided high-quality FR4 glass-epoxy circuit board.
  • 1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compliant.
  • 1226 holes, 0.042" holes are drilled on 0.1" (2.54mm) centers. 4 mounting holes.
  • Lead-free, RoHS compliant.
