SB1660 184x93mm, Double-wide Solder Protoboard

20908

12.00 USD
Qty
Price
1
$12.00 ea.

Double-wide prototyping space for those particularly large projects.


Description [Hide]

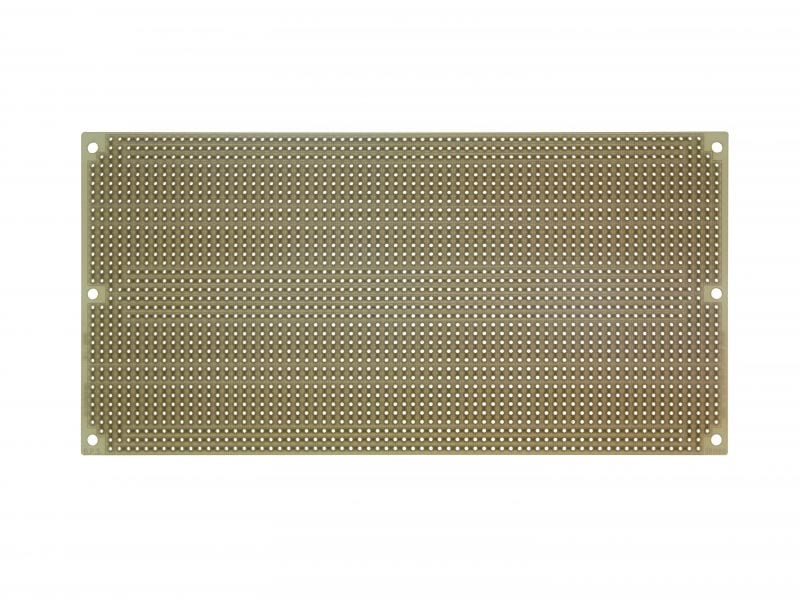

You are done your BIG design on a pair of breadboards, and now it's time to commit your design to solder! If you don't want to mess around re-jigging the wiring layout, just copy it to this cloned layout of a double-wide PC breadboard (with power-rails).

Features

  • A top-side silkscreen aids component placement.
  • Standard 5-hole strip for each IC pin, just like solderless breadboards. Pads are  connected with thinner 0.040” tracks for easier track cutting when required.
  • Eight power rails are provided along the edges like two breadboards, plus four bonus rails.
  • Bonus 2 hole pads along the centerlines provide an easy way to mount DIL headers.

Specifications

  • 184.2 x 92.7mm, 1.6mm thick (7.25 x 3.65", 1/16" thick)
  • High-quality etched FR4 glass-epoxy circuit board with top side silkscreen.
  • Single sided, 1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.
  • Holes are drilled on 0.1" (2.54mm) centers. 2528 pads total. 0.042" (1.07mm) holes sized for ICs or square post headers.
  • Six 0.125” mounting holes.
