SB830 164x47mm, Full-sized Solder BreadBoard

20906

$6.50

USD

Qty
Price
1
$6.50 ea.

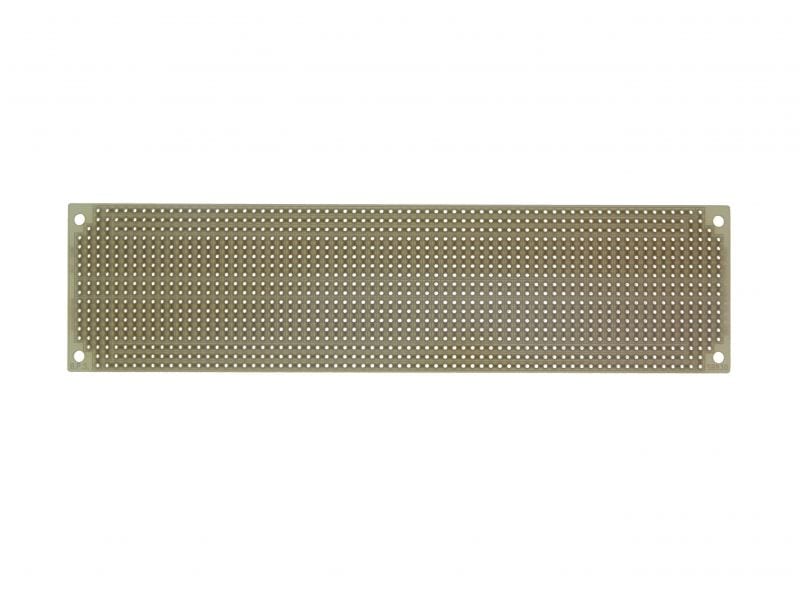

This prototyping circuit board matches a regular 1-panel PC breadboard, with handy top-print overlay, and thinner interconnections for friendly track cutting.


Description [Hide]

You are done on the breadboarding, and now it's time to commit your design to solder! If you don't want to mess around re-jigging the wiring layout, just copy it to this cloned layout of a PC breadboard (with power-rails).

Note: This is very similar to the BR1 model. The difference is this one features a top-side silkscreen, and all pads are connected with thinner 0.040” tracks for easier track cutting when required. This is a nicer, more convenient board to work with.

Specifications

  • 184.2 x 47.0mm (7.25 x 1.85") , 1.6mm (1/16") thick
  • Same pattern as a standard 830 connection point solderless plug-in breadboard.
  • Single-sided high-quality FR4 glass-epoxy circuit board.
  • 1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.
  • 1258 holes, 0.042" holes are drilled on 0.1" (2.54mm) centers. 4 mounting holes.
  • Lead-free, RoHS compliant.
