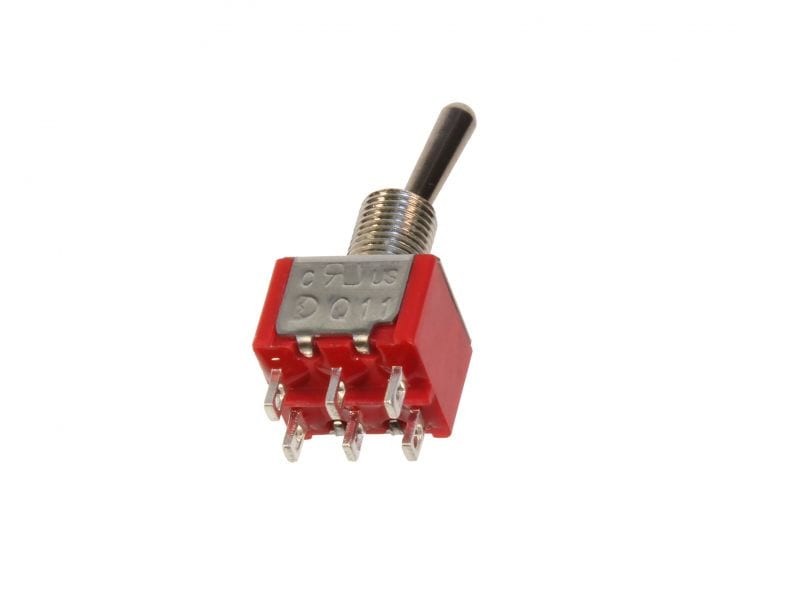

DPDT Toggle Switch

SWT8

3.00 USD
Qty
Price
1
$3.00 ea.

This DPDT (double pole-double throw) toggle switch is perfect for all kinds of useful and useless applications!


Description [Hide]

Some useful applications for the SWT8 include: a power switch for your robot, polarity reverser, ON switch. The only Useless application we can think of is this one.

Features:

  • Contact Configuration: DPDT
  • Switch Operation: ON-ON (no center position)
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 30V
  • Contact Current Max: 5A
  • Switch Terminals: Solder
  • Actuator Style: Long Bat Lever
  • Switch Mounting: Panel mount
  • Bush Thread Length: 8.9mm
  • Contact Configuration: DPDT
  • Contact Resistance: 30mohm
  • Dielectric Strength VDC: 1000V
  • External Depth: 0.45"
  • External Length / Height: 8.9mm
  • External Width: 0.5"
  • Height: 0.35"
  • No. of Mechanical Operations: 30000
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -20°C

Documentation [Hide]
