Description

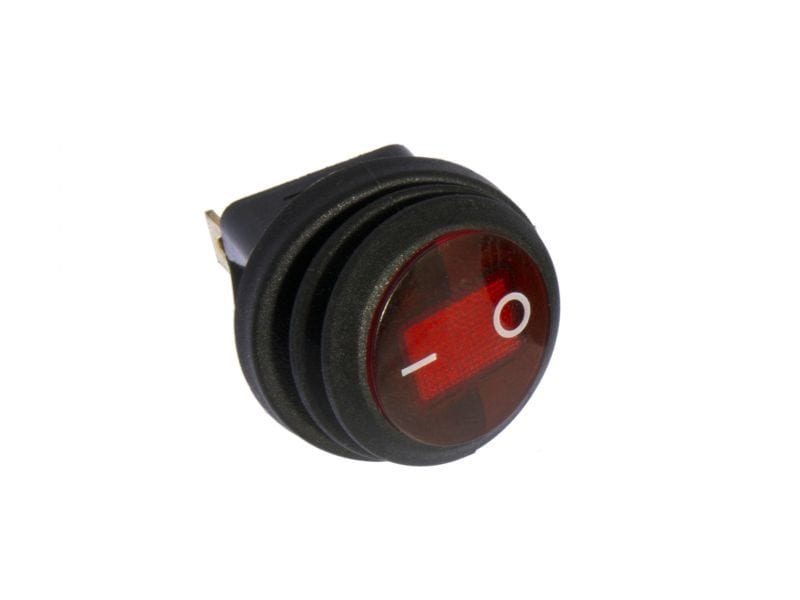

This nifty little illuminated power switch can handle 6A of 12VDC power to your load!

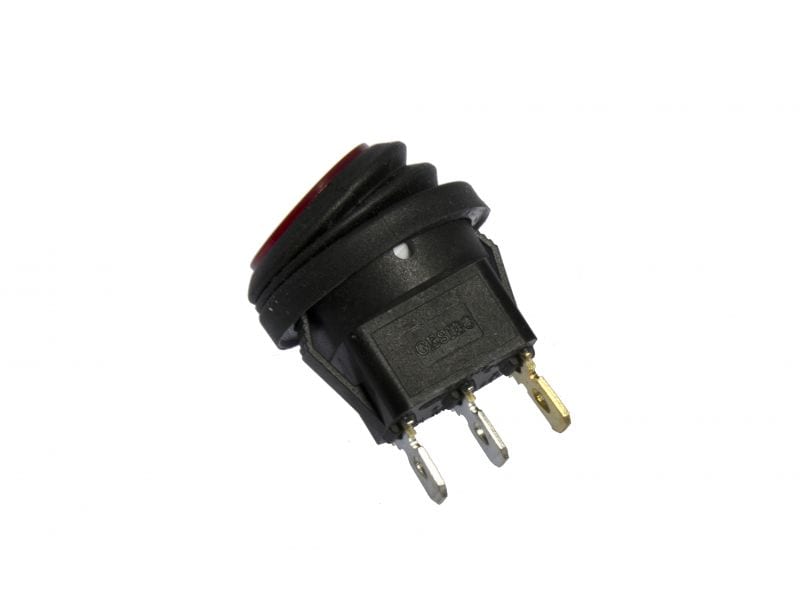

Terminals:

There are 2 types of terminals:

• +  Connect to 12VDC
• A  Switched output
• Gnd: Connect to ground

or

• 1 – Connect to 12VDC
• 2 – Connect to GND
• 3 – Switched output

Specifications:

• Color: Red
• Shape: Cat Eye Round
• Type: Rocker
• Illuminated: LED
• Seal: Waterproof
• Voltage: 12V DC
• Current: 6A
• Style: SPST
• Weight: 6.8g
• Mounting hole Diameter: 20mm
• Dimensions: 25mm wide x 27mm tall (including pins)
