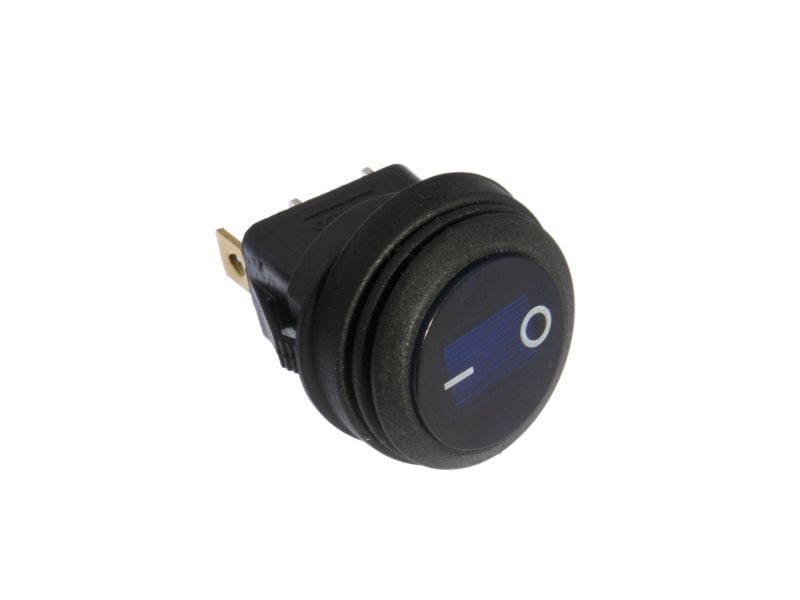

12V 6A ON/OFF Waterproof Rocker Switch in Blue

SWT18B

3.95 USD
Qty
Price
1
$3.95 ea.

Apply power through this switch and it will give you waterproof illuminated control!


Description [Hide]

This nifty little illuminated power switch can handle 6A of 12VDC power to your load!

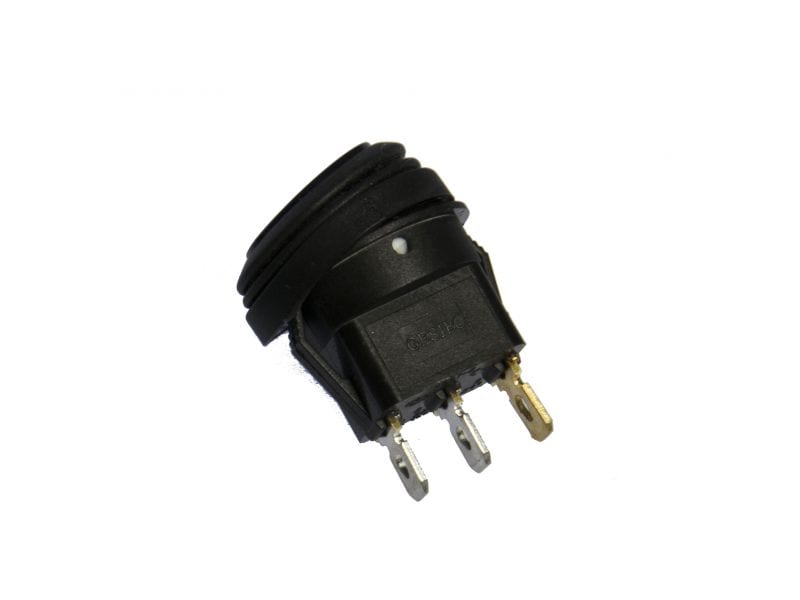

Terminals:

  • +  Connect to 12VDC
  • A  This is your switched power output
  • Gnd: Connect to ground

 or

  • 1 - Connect to 12VDC
  • 2 - Connect to GND
  • 3 - Switched output



Specifications:

  • Color: Blue
  • Shape: Cat Eye Round
  • Type: Rocker
  • Illuminated: LED
  • Seal: Waterproof
  • Voltage: 12V DC
  • Current: 6A
  • Style: SPST
  • Weight: 6.8g
  • Mounting hole Diameter: 20mm
  • Dimensions: 25mm wide x 27mm tall (including pins)
