38mm x 13mm Traction Wheel assembly - internal set screw

RW38i

4.45 USD
Qty
Price
1
$4.45 ea.
2+
$3.89 ea.
20+
$3.72 ea.

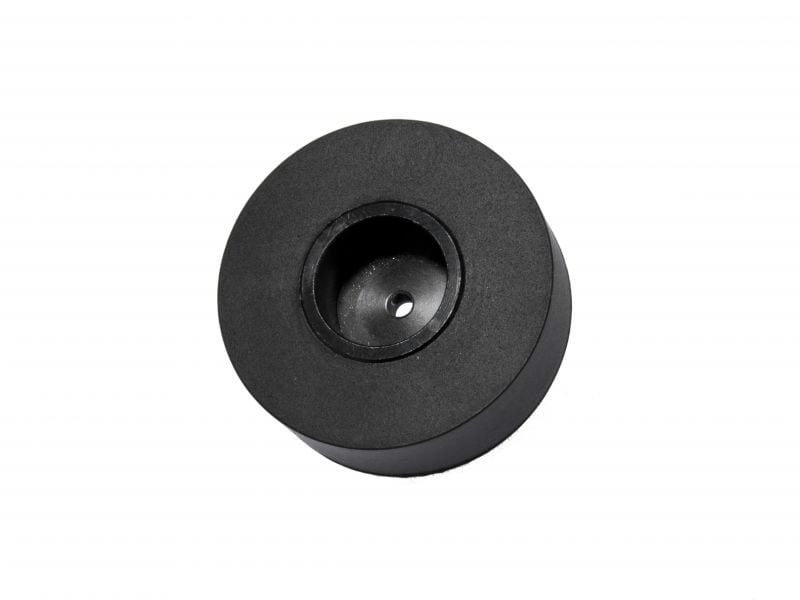

38mm diameter x 13mm wide silicone rubber wheels on narrower, internal set-screw hub


Description [Hide]

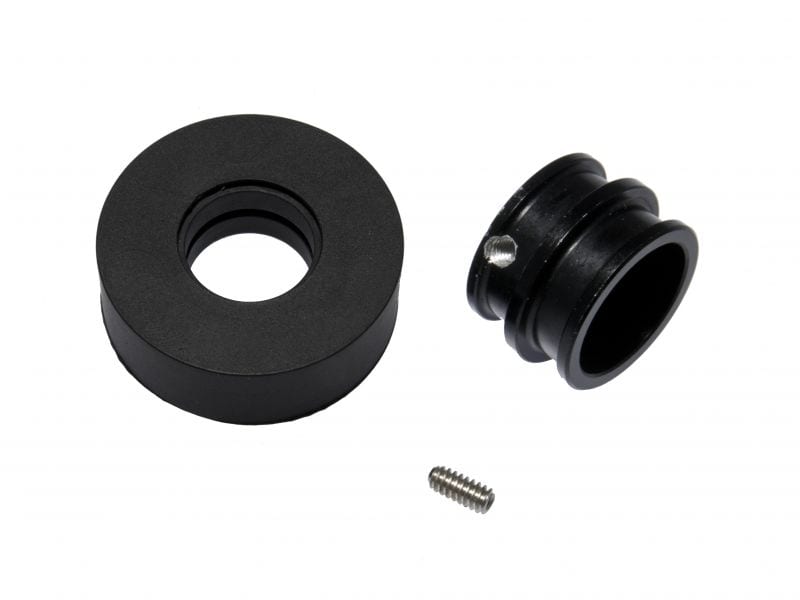

These are the big brother to the regular RW28x13 / RW2, for when you need more clearance and traction. It features a silicone rubber molded wheel on a lathe-machined aluminum hub.

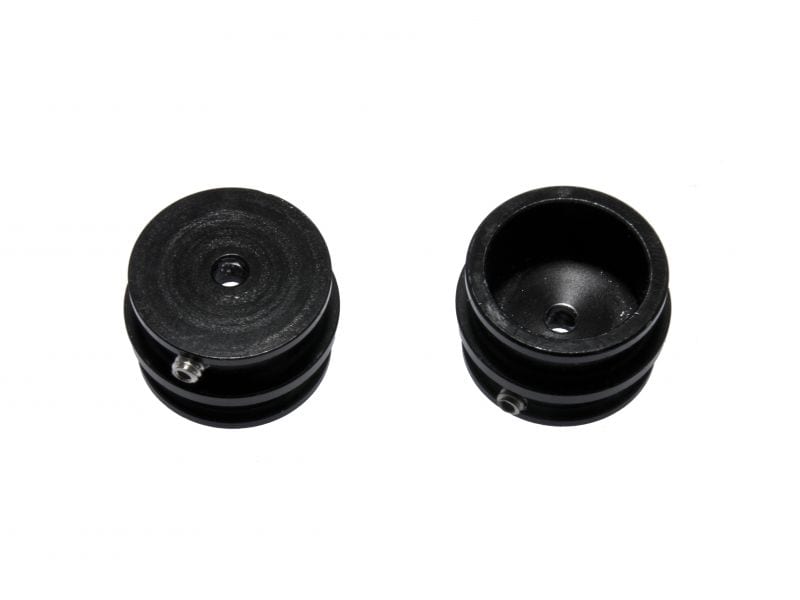

The hub is narrower than the standard version, as the set-screw hole has been removed from the collar (which was then removed), and moved to the main part of the hub, under the wheel itself.

This makes for a narrower wheel for tighter installations. We've even found we can place the gearmotor gearhead in the hub cavity itself for very tight installations.

Specifications:

  • Tire:
    • 38mm (1.5") diameter,
    • 13mm (0.5") wide
    • 12.7g (0.45 ounces)
    • 20D durometer
  • Hub:
    • Aluminum construction
    • 12.7mm wide
    • 3mm shaft hole

Secure it to your motor shaft with the included 4-40 hex grub/setscrew (requires 0.050 hex wrench, like our HexW050).
