75-Series Push Pogo Pin - 4 Point

PP2-75

1.25 USD
Qty
Price
1
$1.25 ea.
2+
$0.99 ea.
25+
$0.89 ea.
100+
$0.79 ea.

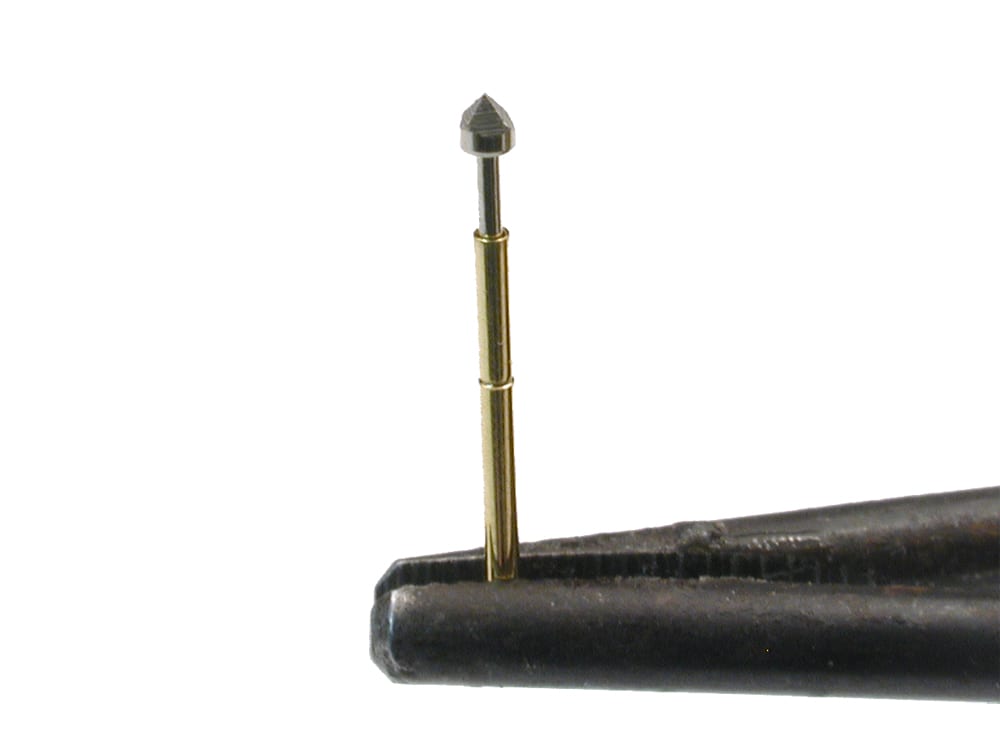

This medium 17mm long 4-sided point tipped pogo pin probe is normally used for electronic JTAG uses, but we use them for bots!


Description [Hide]

Head type: 4-sided point

Dimensions: 17 x 1.0 x 1.0mm

Recommended min-center: 1.9mm

Spring force: 120gms

Current rating: 3A

Contact resistance: 50milliohms

Full travel: 2.5mm

Mounting hole size: 1.4mm

Please Note: Unfortunately we don't have a holder for this pogo pin, sorry.
