50-Series Push Pogo Pin - 4-Sided Point

PP2-50

1.50 USD
Qty
Price
1
$1.50 ea.
2+
$1.25 ea.
25+
$1.19 ea.
100+
$1.10 ea.

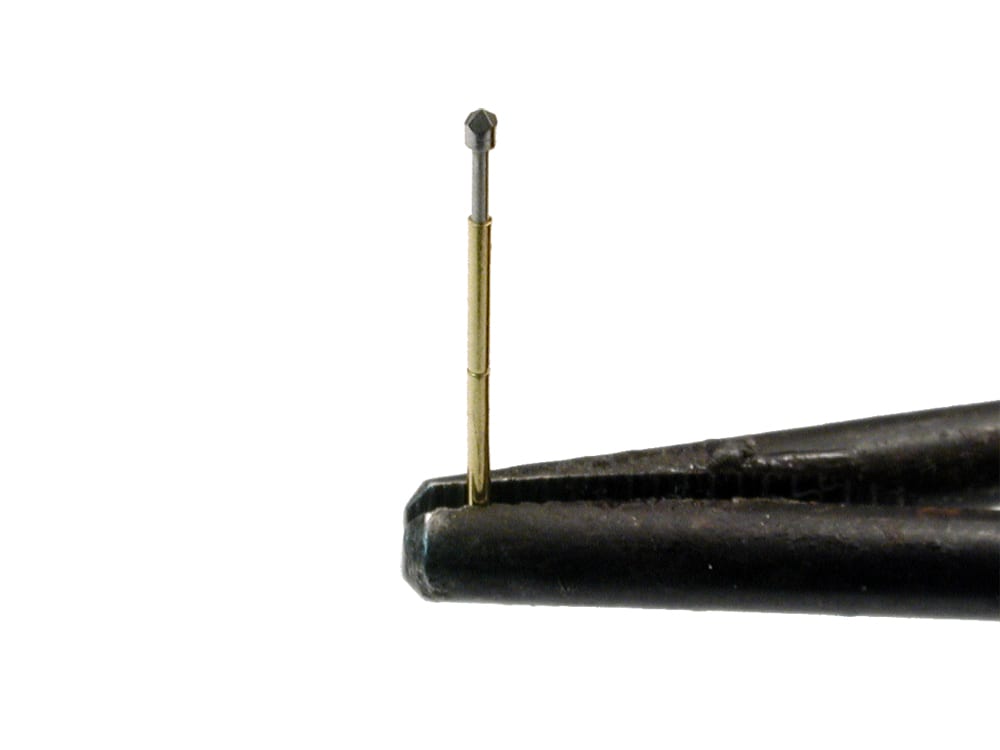

This smaller, 16.4mm long cone-tipped pogo/probe ping is normally used for electronic JTAG uses, but we use them for bots!


Description [Hide]

This pin is great for use with tiny robots or for programming chips from the tiniest of pads.The PP2-50 is perfect for use with the PPH-50 pogo pin holder for quick and easy replacement.

Features

  • Head type:4-sided point
  • Dimensions: 16.4 x 0.68 x 0.68mm
  • Recommended min-center: 1.27mm
  • Spring force: 80gms
  • Current rating: 3A
  • Contact resistance: 50milliohms
  • Full travel: 2.5mm
  • Mounting hole size: 0.91-0.95mm
