Push Pogo Pin - Cone Tip
PP12-100
1.25
USD
Qty
Price
1
$1.25 ea.
2+
$0.99 ea.
25+
$0.89 ea.
100+
$0.79 ea.

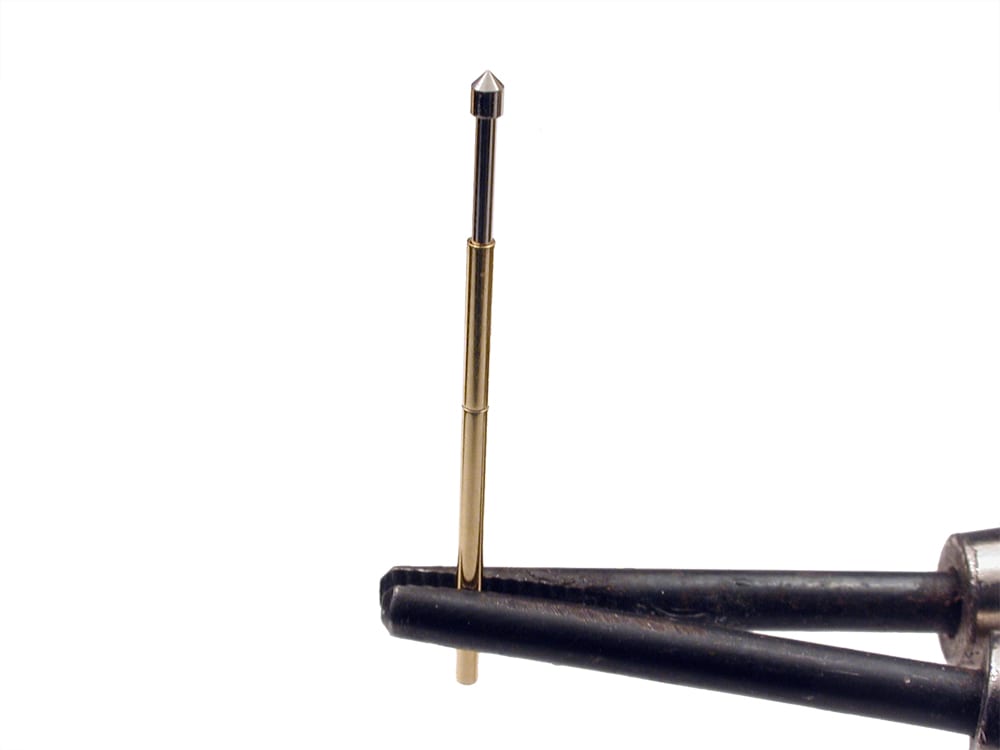

This 33mm (1.3") long cone tipped pogo pin probe is normally used for electronic JTAG uses, but we use them for bots!
Description [Hide]
These spring-loaded test Pogo / probe pins that are normally used for testing circuit boards or programming via electronic JTAG interfaces. They also make killer-looking robot feet!
Specifications
- Head type: 90 degree cone
- Dimensions: 33 x 1.35 x 1.35mm
- Recommended min-center: 2.55mm
- Spring force:200gms
- Current rating: 3A
- Contact resistance: 50mΩ
- Full travel: 6.5mm
- Mounting hole size: 1.75-1.80mm
Note: Unfortunately we don't have a holder for this pogo pin, sorry.
Documentation [Hide]
- [Data Sheet]: Pogo Push Probe Datasheet
