Microchip PIC16F887

PIC16F887

2.60 USD
Qty
Price
1
$2.60 ea.
2+
$2.16 ea.
25+
$2.10 ea.
100+
$2.05 ea.

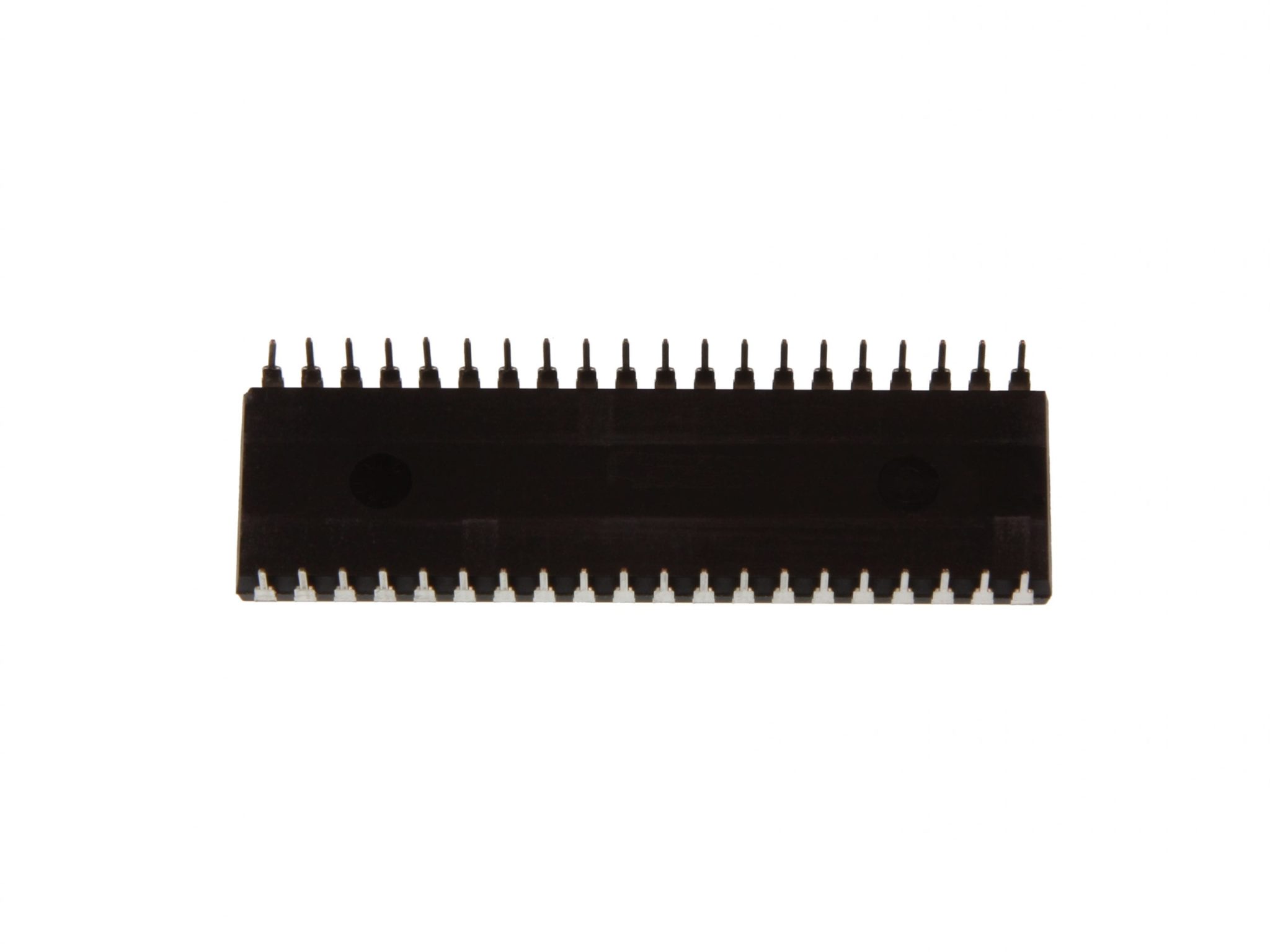

This is the Microchip 40-pin PIC16F887 microcontroller which is the newer version of the PIC16F877A.


Description [Hide]

This is a common 8 bit microcontroller with a variety of useful peripherals, including:

  • 36 I/O lines
  • 14 10-bit ADCs
  • Interface Type: MSSP, EUSART
  • Runs at 20MHz

Specifications:

  • Processor Series: PIC16F
  • Core: PIC
  • Data Bus Width: 8 bit
  • Program Memory Type: Flash
  • Program Memory Size: 14 KB
  • Data RAM Size: 368 B
  • Number of Timers: 3
  • Operating Supply Voltage: 2 V to 5.5 V
  • Maximum Operating Temperature: + 125 C°
  • Mounting Style: Through Hole
  • 3rd Party Development Tools: 52715-96, 52716-328, 52717-734, 53273-916
  • Development Tools By Supplier: PG164130, DV164035, DV244005, DV164005, PG164120, ICE2000, DM164123, DM164120-3, DV164122
  • Minimum Operating Temperature: - 40 C
