Make12 - Solar Xylophone

Make12XPhone

$28.90

USD

Qty
Price
1
$28.90 ea.
2+
$23.13 ea.
25+
$22.31 ea.
50+
$21.53 ea.
100+
$21.28 ea.

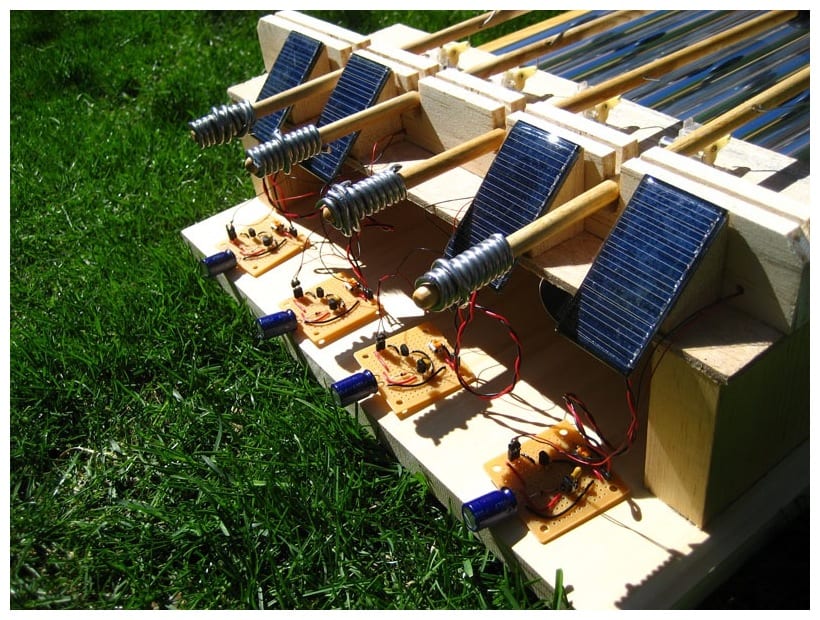

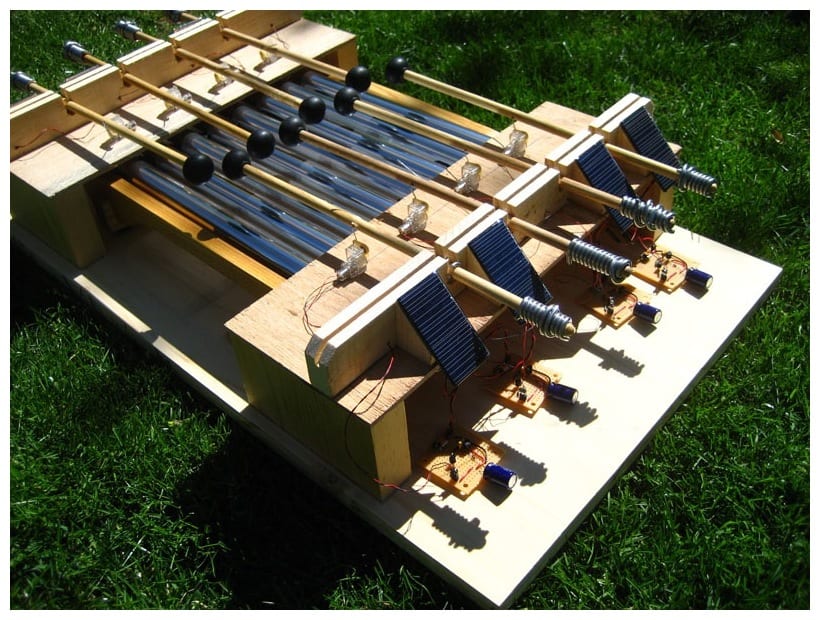

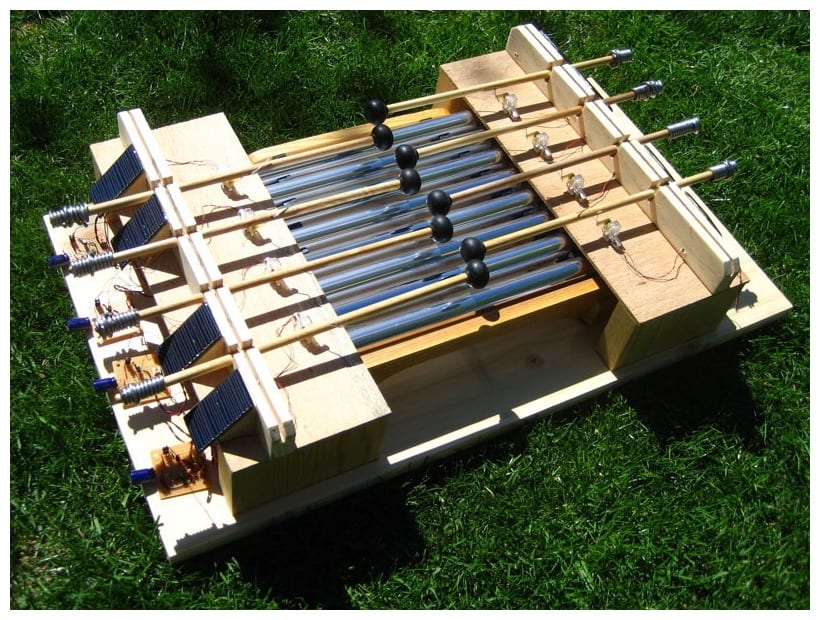

Want to build the Solar Xylophone in Make Volume 12?  This bundle will get you started on Rory Nugent's project.


Description [Hide]

We carry pretty much all of the electronic parts you need to build the Solar Xylophone by Rory Nugent in Make Volume 12. So, to save you a ton of time trying to find all of those many parts (and adding 8 of each!) we have compiled them all into one very convenient bundle.

Important - this only provides enough parts to build one of the Xylophone mallet actuators, you will need to order a total of 8 to build exactly the same as the project - or just order exactly as many you need for your project.

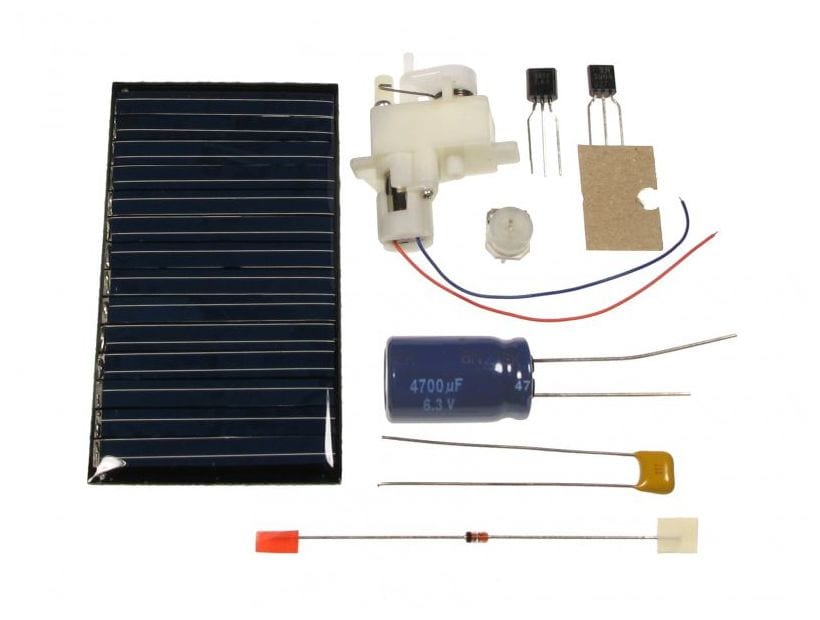

Included Parts:
1x 4.6V (U) Voltage Trigger
1x 2N3904 NPN Transistor
1x 10k Single-turn Trimpot
1x 4700µF Electrolytic Capacitor
1x 1.0uF Monolithic Capacitor
1x 1N914 Silicon Diode
1x 37 x 66mm Monocrystalline Solar Cell
1x Gear Motor 10 - Geared pager motor

So build away, and when you are done, we'd love to see some pictures! Also, check out Rory's web page to see some cool photos and videos.

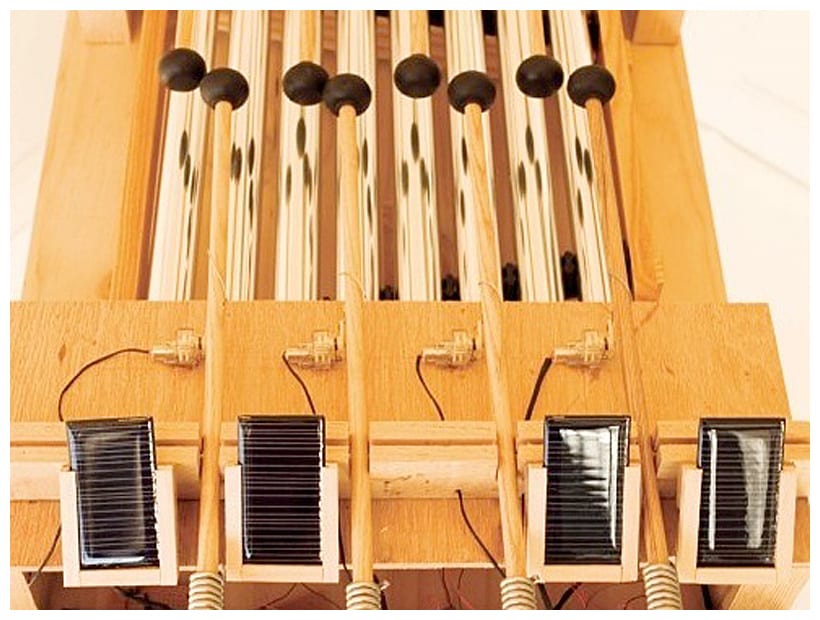

Note: The images are courtesy of Make Magazine and Rory Nugent.
