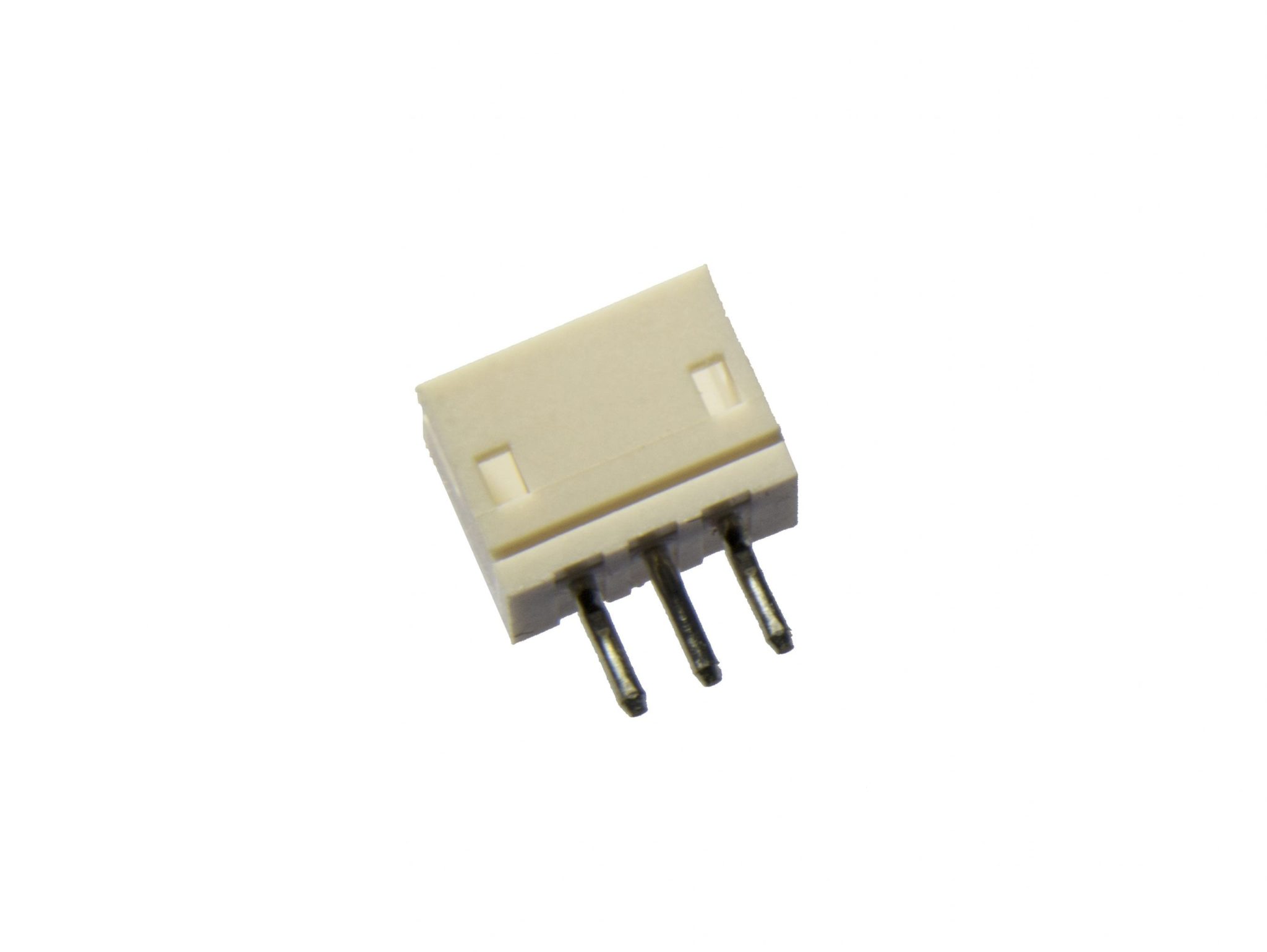

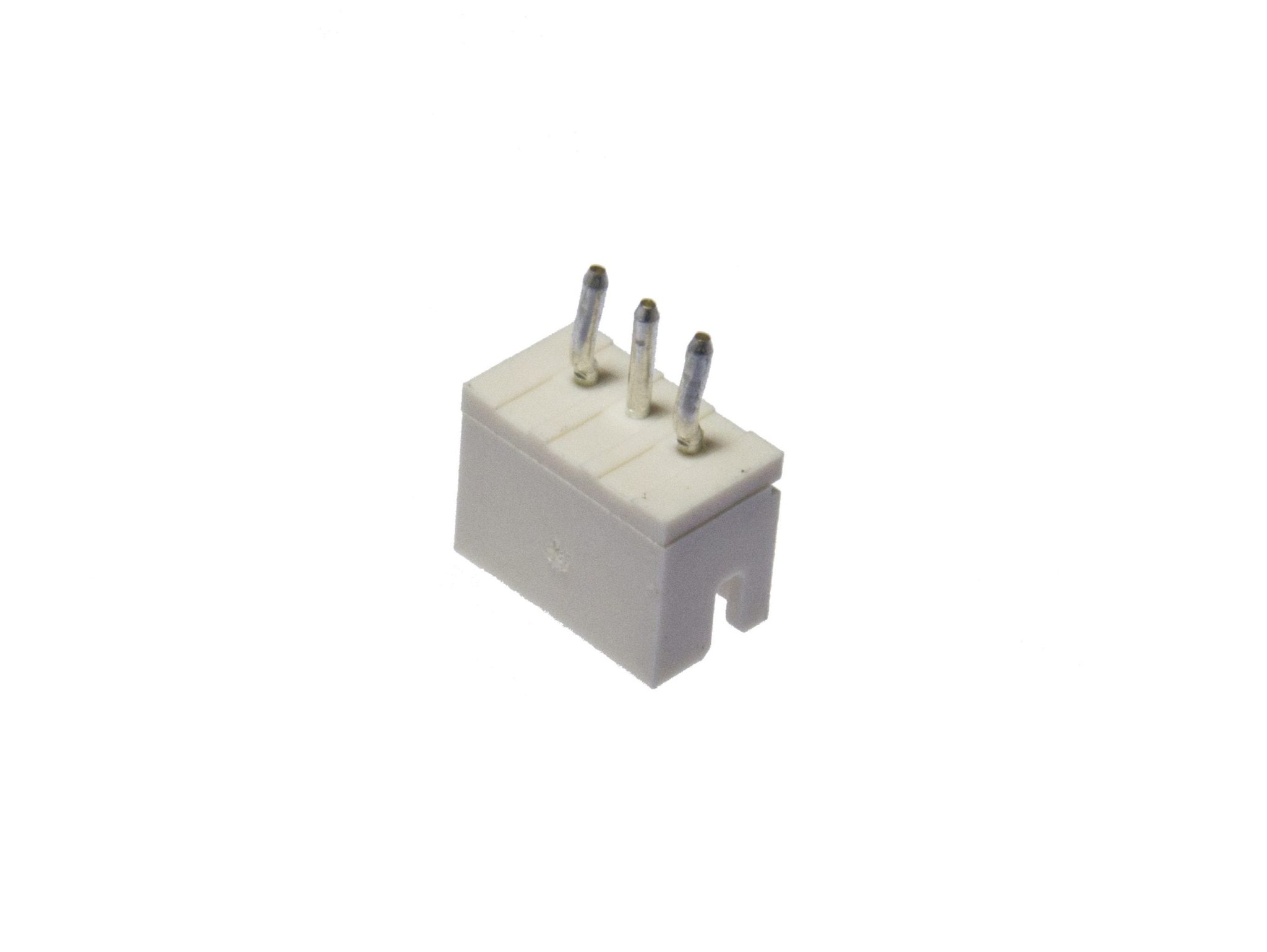

3-pin JST-ZH Connector (1.5 mm Pitch)

hvjst3

0.50 USD
Qty
Price
1
$0.50 ea.

The JST-ZH 3-pin connector is another common electronics interconnect standard.


Description [Hide]

We trip over needing to wire up some random electronics and never have the right connector on hand because there's so many standards. To round that out, we're now carrying this: The JST-ZH 3-position male connector:

Specifications:

  • JST-ZH family
  • 1.5mm pitch
  • 3 position, shrouded pin male receptacle
  • 1.0A rated current (AWG #26)
  • 50V rated (AC/DC)
  • Top entry
