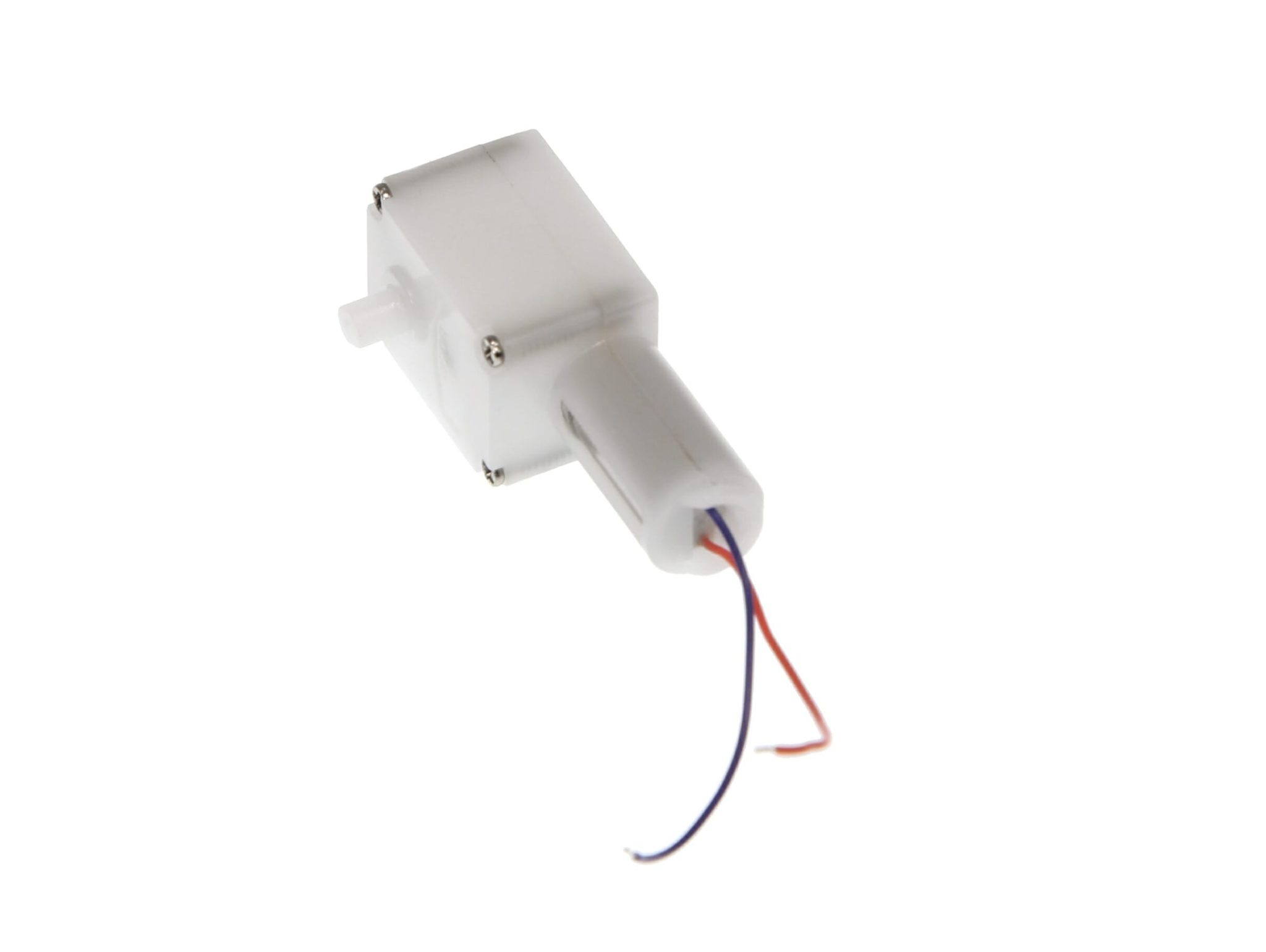

Gear Motor 24 - 1:192 90 Degree Shaft

GM24

4.25 USD
Qty
Price
1
$4.25 ea.

Call it a teeny, tiny little brother to the GM3 gearbox. With a suitably smaller appetite for power!


Description [Hide]

Borrowing the form factor of our popular GM3 gearbox, the GM24 is a pager motor powered relative that is great for tightly spaced applications. Make a robot so small that it can fit inside another robot!

Specifications

  • Gear Ratio: 1:192
  • Operating Voltage: 3.0V
  • Current Draw (no load): 30~80mA
  • RPM (no load): 100~410 rpm
  • Output Torque: 60~480 gf*cm
  • Weight: 3.6g

And we always like to take a physical sampling to see exactly how good they test in-house. Here are our results:

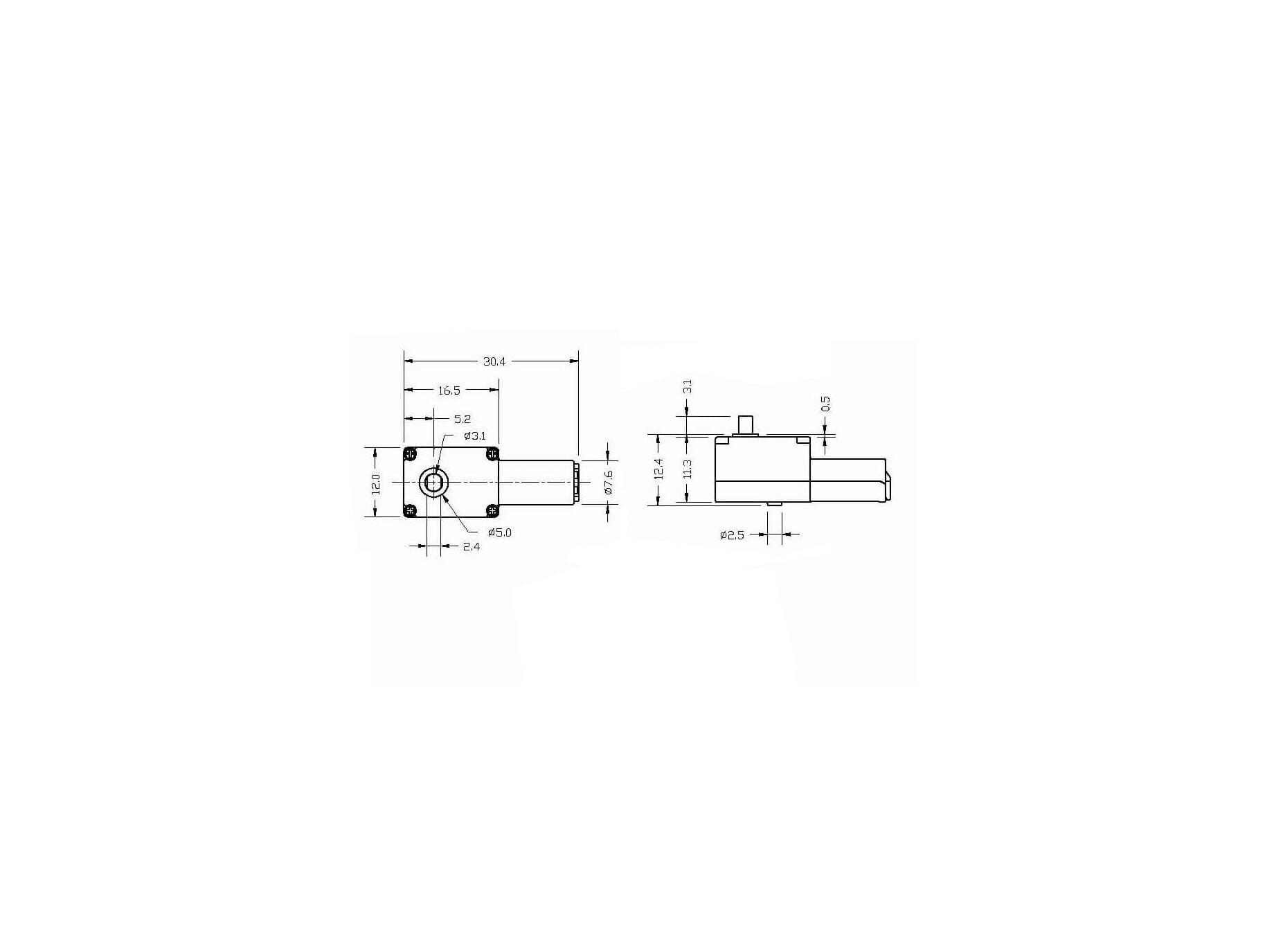

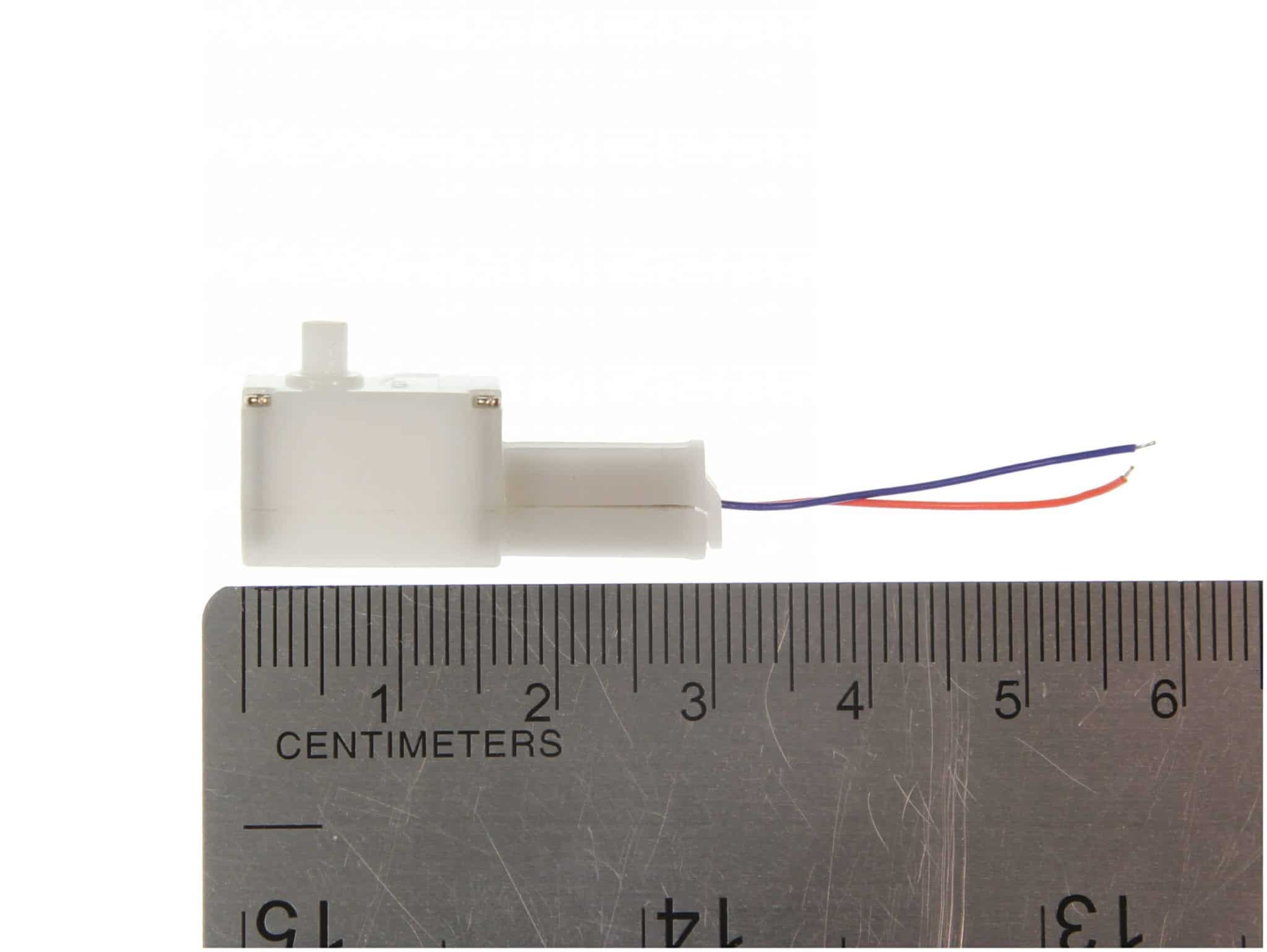

Dimension displayed above in the third product picture.
