56.8:1 Mini Metal Gear Motor

GM11a

$15.95

USD

Qty
Price
1
$15.95 ea.
2+
$12.85 ea.
50+
$11.95 ea.

Small, speedy, and all-metal construction!


Description [Hide]

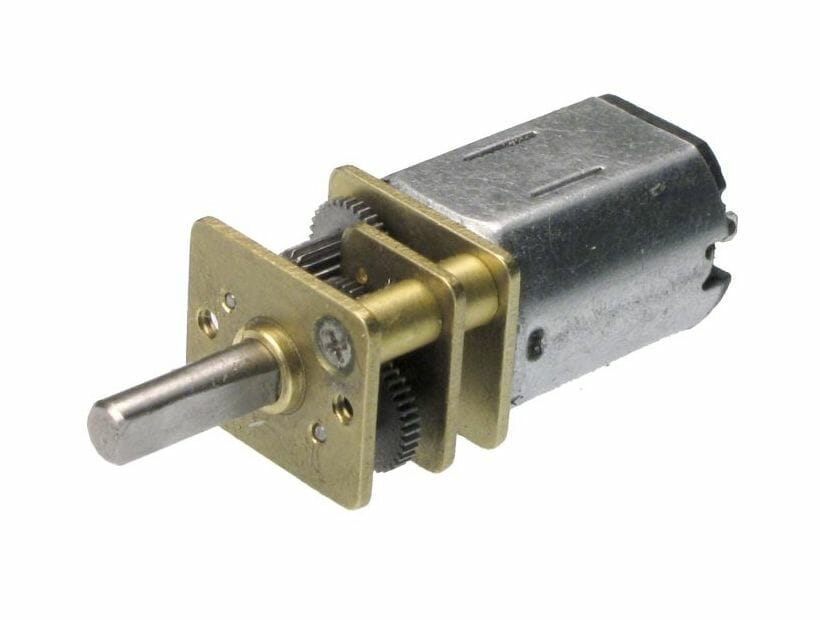

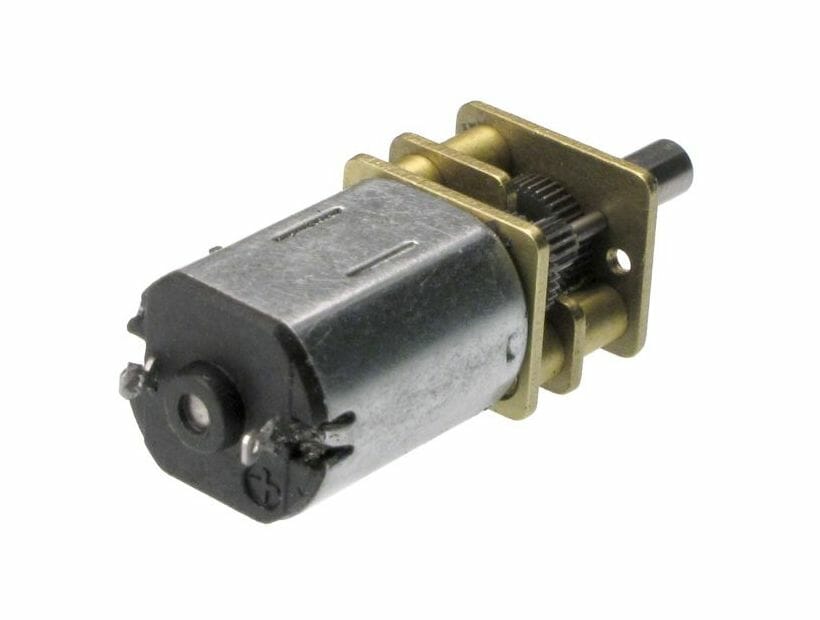

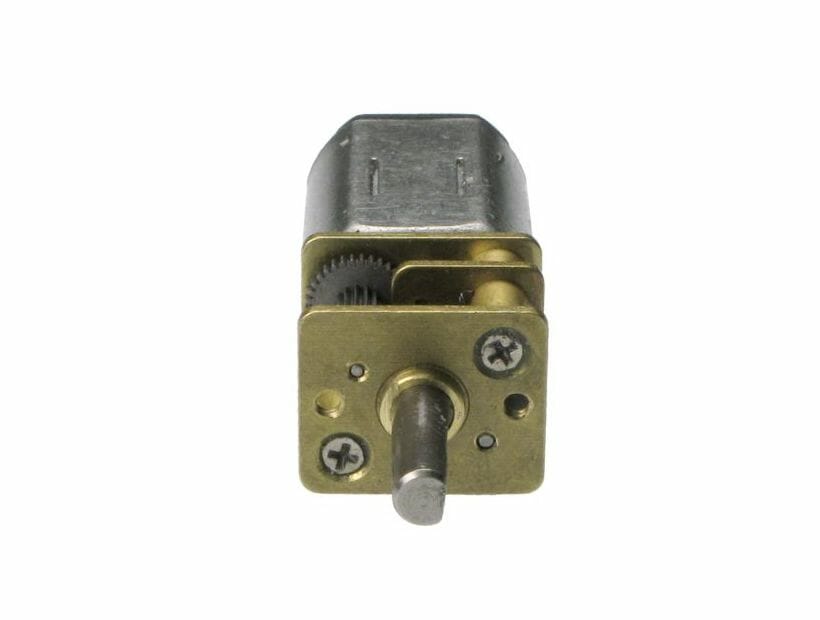

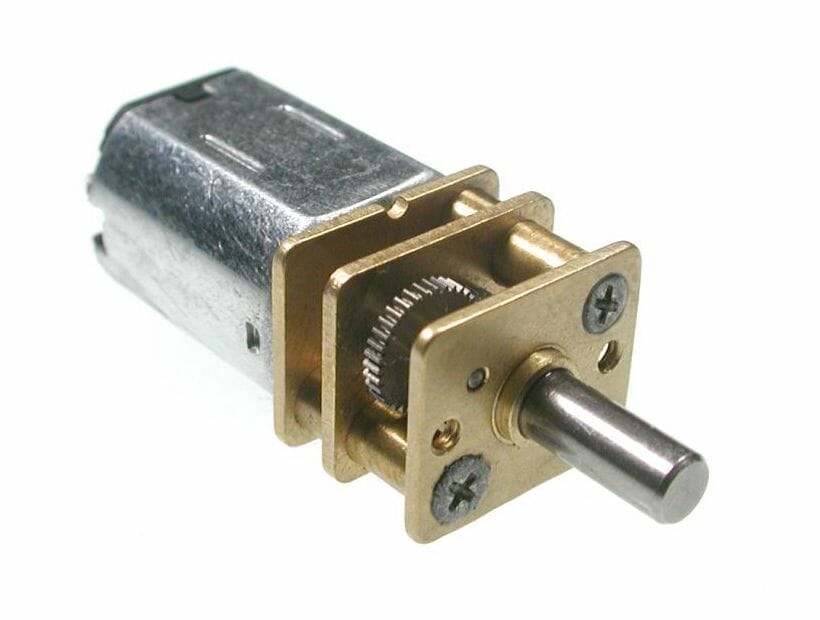

If you're looking for a speedy motor with a reasonable amount of torque (for say, moving a small robot that isn't going to fight in a Sumo contest), the GM11a is an excellent candidate. This particular motor has a 9.4mm long, 3mm dia. cylindrical output shaft, pre-ground with a flat spot for secure grub-screw mounting.

Here are the performance measurements:

Running at 3V:

  • Free running RPM - 181
  • Free running Current - 28mA
  • Stall Torque - 5.9 in*oz
  • Stall Current - 428mA

Running at 6V:

  • Free running RPM - 370
  • Free running Current - 42mA
  • Stall Torque - 6.1 in*oz
  • Stall Current - 760mA
