10-pin Shield Stacking Header
FPin10L-413
0.50
USD
Qty
Price
1
$0.50 ea.
Want to stack more than one shield at a time? Use these instead of standard 10-pin headers to add extra functionality to your shield!
Description [Hide]
Arduino is cool. Shields are cool. More shields are more cool.

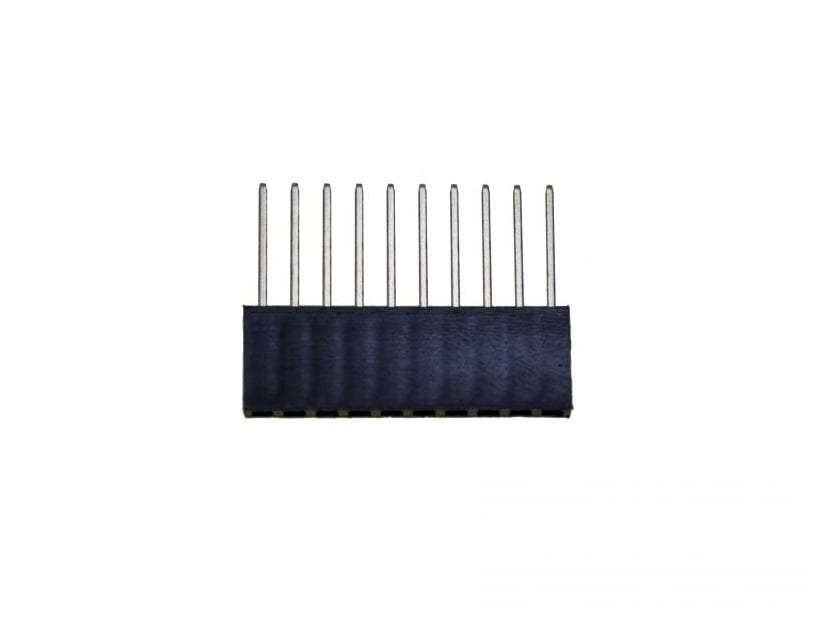

And what makes it easy to stack shields? These do! Our FPin10L. Catchy name, right? It's a female socket strip, 10 positions long, with a Long modification of 0.0413" tail. See?
In short, you solder these in where the standard Arduino Shield's interfacing pins would go, but now you also have a matching set of female sockets on top! Use them for stacking more shields, or just as convenient test-measurement points for your probes.
Documentation [Hide]
- [Schematic]: Mechanical Drawnig - Feb 2010
