» Prototyping » Connectors » DIP Carriers & ZIF sockets

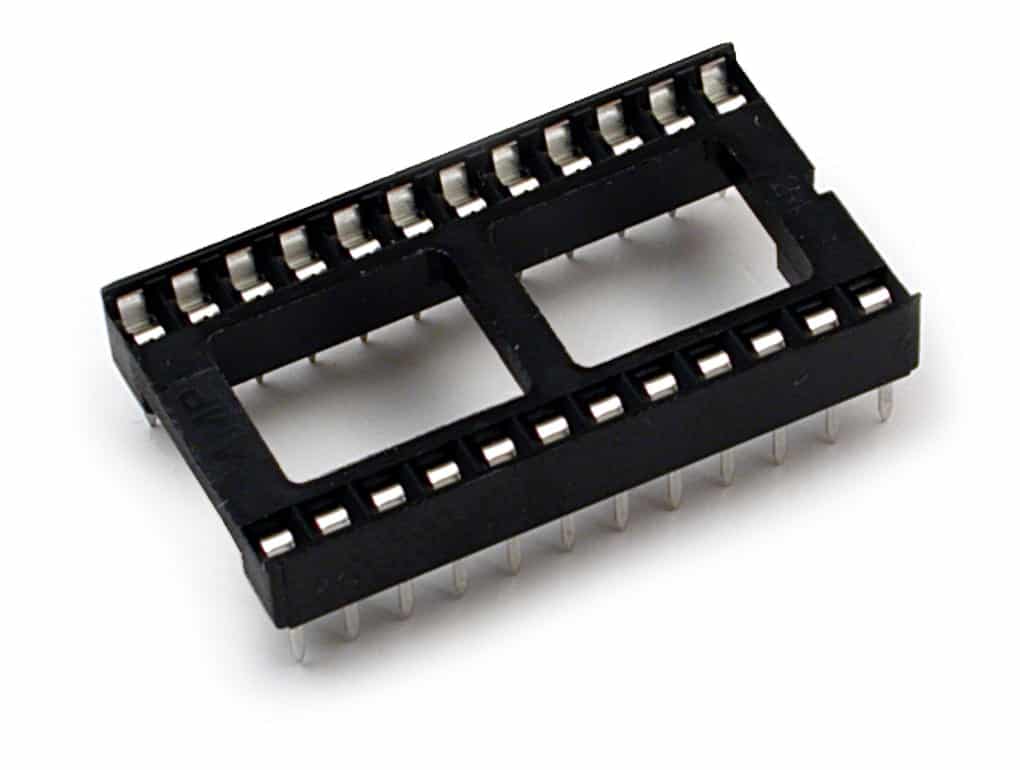

24 pins on 0.6" spacing - ideal for BS2 mounting!
We use these as part of our Sumovore BS2 brainboard adapter for mounting your own BS2-compatible modules.
The idea of a DIP socket is to allow easy insertion/replacement of chips in existing circuits.
0.1µF monolithic ceramic capacitor with many general purpose electronic applications.
28 pin DIP carrier for the ATmega8L or other 28 pin DIP devices.
A chip carrier for the 16F877A or other 40 pin DIP device.
These Zero Insertion Force (ZIF) sockets clamp onto a chip, making a good electrical connection, when you push the lever down.
This is a high-quality, easy to use 28 pin ZIF socket that is 0.3" wide.
The Microcontroller (MCU) Universal ZIF Socket Assembly is perfect for hooking up a PICKit and programming 18-40 pin PIC IC's til' the cows come home!
Bi-color LEDs light red when connected one way and green when connected the other.
The 74HC595 is very useful in expanding how many pins a microcontroller can write to. Use 3 to write to 8!
