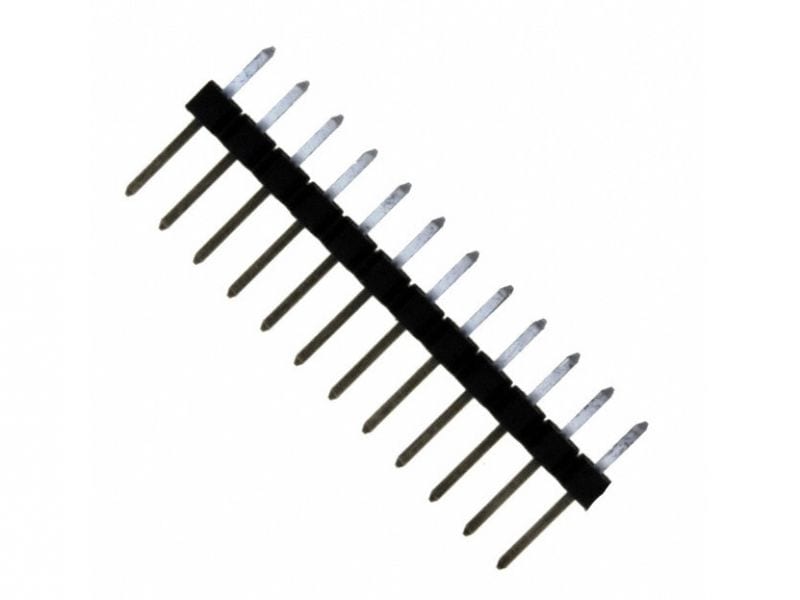

2mm Pin Strip Single Row Header - 12 per

MPin12-2mm

1.00 USD
Qty
Price
1
$1.00 ea.
2+
$0.70 ea.
25+
$0.60 ea.
50+
$0.54 ea.
100+
$0.47 ea.

Male Strip - 12 per Strip, gold flash on 2mm spacing


Description [Hide]

2mm spacing is weird, but necessary for smaller-pitched devices like XBee/Synapse wireless modules

Features:

  • FamilyRectangular - Headers, Male Pins
  • Contact Type - Male Pin
  • Connector Type - Header, Unshrouded
  • Number of Positions - 12
  • Number of Positions Loaded - All
  • Pitch 0.079" (2.00mm)
  • Number of Rows - 1
  • Contact Mating Length - 0.173" (4.40mm)
  • Mounting Type - Through Hole
  • Termination - Solder
  • Contact Finish - Gold
  • Contact Finish Thickness - 10µin (0.25µm)
  • Colour - Black

Documentation [Hide]
