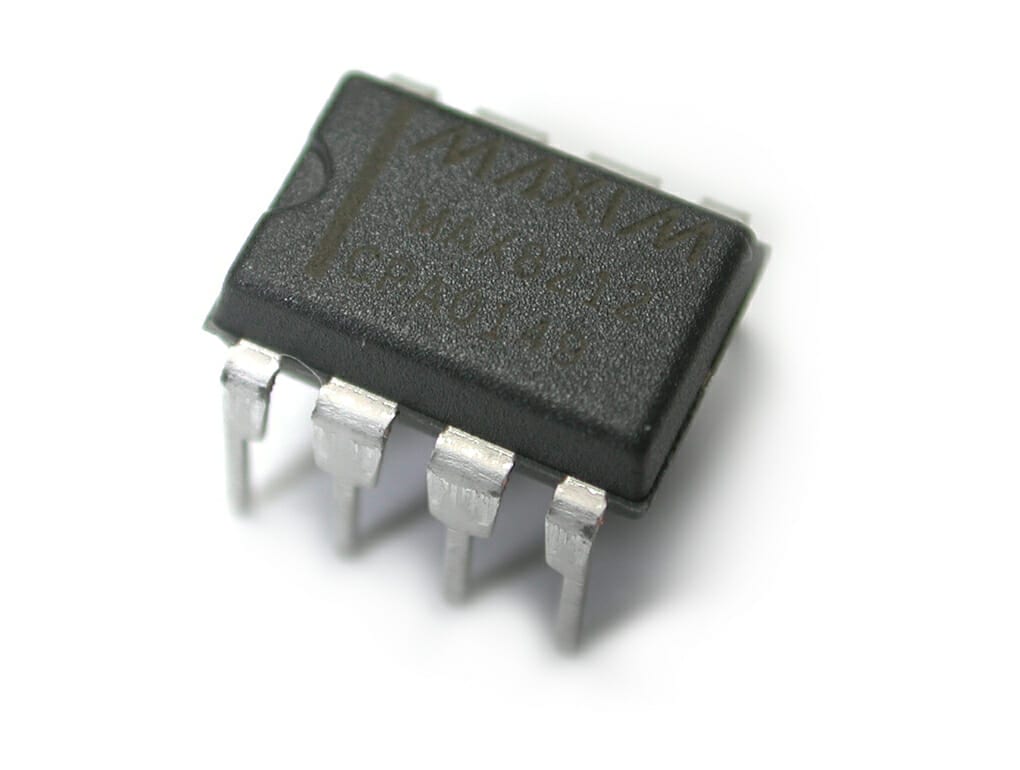

Maxim 8212 Voltage Monitor

8212

3.75 USD
Qty
Price
1
$3.75 ea.

This very configurable voltage monitor chip offers more flexibility than the 1381 series of detectors, at more complexity of setup.


Description [Hide]

This very handy chip is the heart of our very capable PM3 module we sell as part of our Bicore Experimenter's Kit  (See resources link to the Bicore information).

This chip uses a simple arrangement of 3 resistors to determine the voltage detection level and the reset voltage drop. The way we use it in the BEP boards is Maxim's Datasheet.



Documentation [Hide]
