3m 90 LED Strand, 3.3cm Spacing

60600

$6.95 USD
Qty
Price
1
$6.95 ea.

Colour

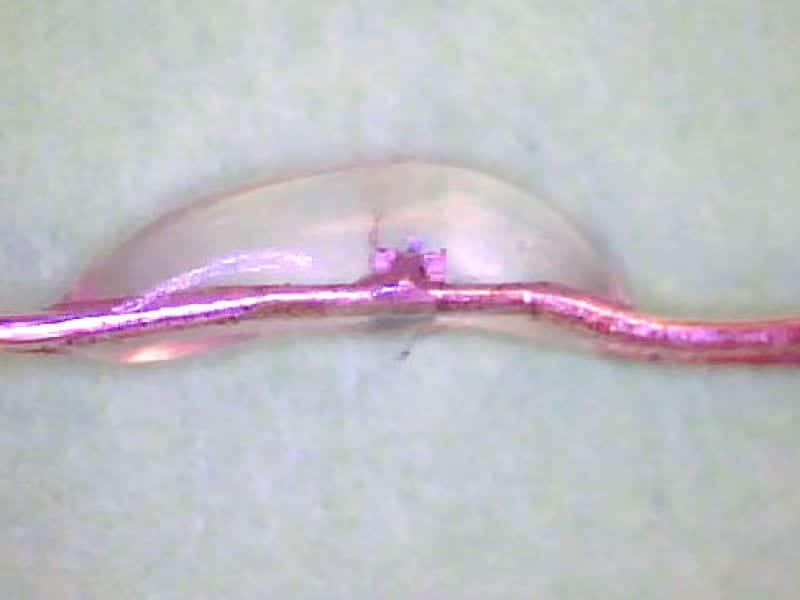

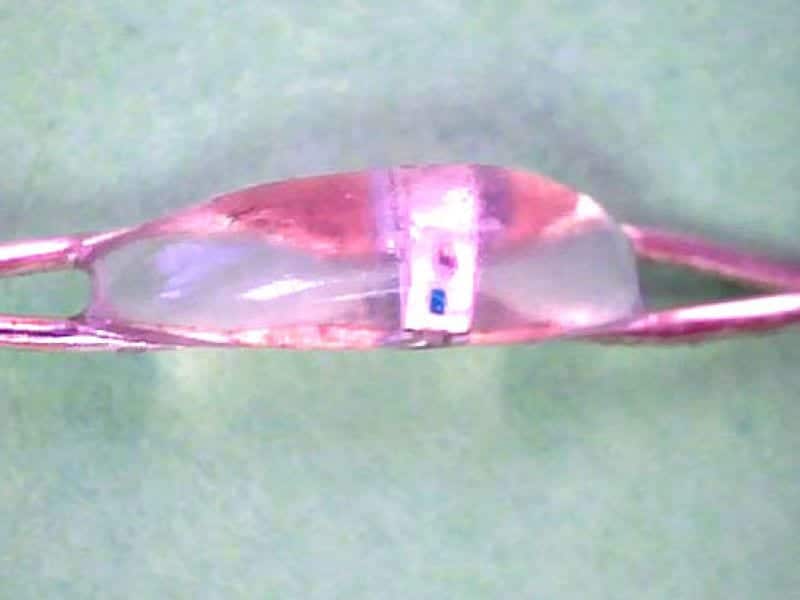

Here's a string of tiny SMD LEDs on very thin enamel wire. These are excellent for adding a string of bling to your project.


Description [Hide]

When we first saw this type of LED string, we know we had to have them. But with more bling. Instead of 10cm (4") spacing, we had our own manufactured with a much tighter 3.3cm spacing (1.3") spacing. But to keep the power requirements reasonable, these strings are a shorter 3.3M (10') length. Still very useable, especially for adding to your e-textile projects!

Specifications:

  • 3M long (10')
  • 3.3cm (1.3") spacing between LEDs
  • 26 gauge enamel wire
  • Included 12 ohm, 1 watt current-limiting resistor for 4.5VDC operation
  • LED viewable at ~0.05 mA/ea, functionally bright at 2mA/ea, very bright at 4mA/ea
  • 90 LED string current draw - 180mA (low power) to 360mA (high power)
  • CE authenticated

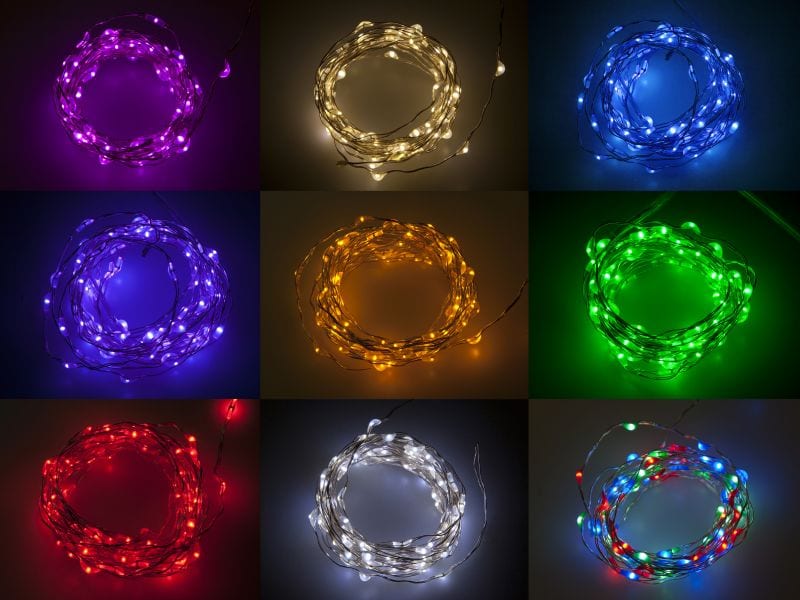

  • Colours available:
    • Red
    • Yellow
    • Blue
    • Green
    • Pink
    • Purple
    • White
    • Warm White
    • RGB (Separate Red, Blue, Green LEDs)

Note: This string is provided with a unattached resistor. Powering a string up without a resistor can result in burning out the whole string of LEDs. Soldering skill is necessary.

Performance Note: Factory datasheets suggest the LEDs are 20mA rated, but 90 LEDs @ 20mA = 1.8A. Although 26 gauge wire is 2.2A capable, we found powering up the strings over 15mA/LED causes stress to the LEDs closest to the power source. DO NOT exceed 10mA/LED (900mA for whole string) for safe operation.

See associated images for table of brightness.
