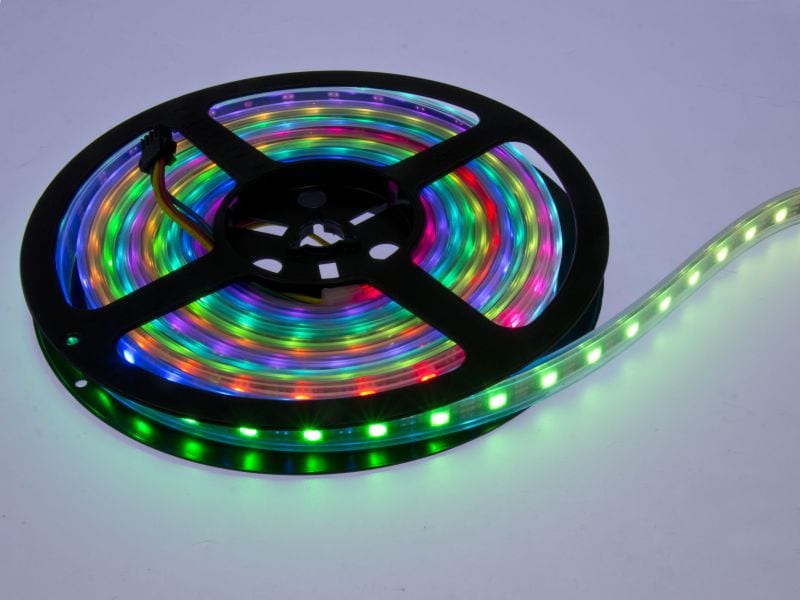

5V Addressable RGB Stripxel LEDs (60/M, APA102, Black PCB)

60551

26.95 USD
Qty
Price

This strip offer offers 4 line (Pwr/Gnd/Clk/Dat) control of APA102C RGBs, 60/M on black substrate in a silicone sleeve.


Description [Hide]

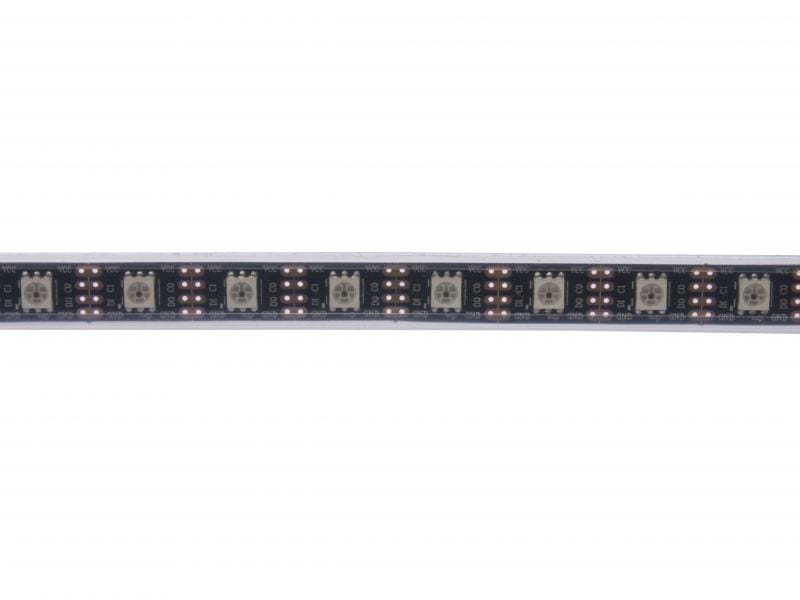

These addressable RGB stripxels feature the APA102C LED elements mounted 60 per meter, on a black PCB. This model is cased in a silicone IP65-compliant sleeve for good water resistance, but I wouldn't suggest you add exterior patio lighting to your submarine with them.

These are sold by the meter

Specifications:

  • EpistarAPA102C 5050SMD RGB LEDs (140° viewing angle)
  • Luminescence (MCD per 1m/60LED):
    • Red: 24000
    • Green: 42000
    • Blue: 11400
  • 5V
  • 2.88A current draw per meter (full brightness)
  • 18W maximum current draw per meter
  • 60 LEDs per meter (16.1mm spacing)
  • 10mm wide PCB (black)
  • IP65 water resistant (silicone sleeve)
  • -40 to 40°C operating temperature

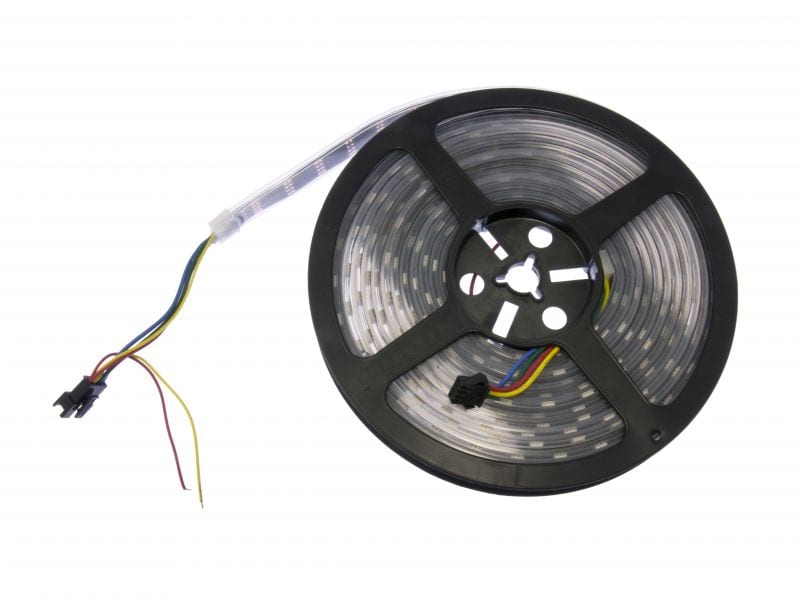

These are sold by the meter! You may or may not get a power connector pre-soldered to the end of your strip. The only way to be sure is to order a full spool (5M length). A set of 4-wire connectors may be a good idea.

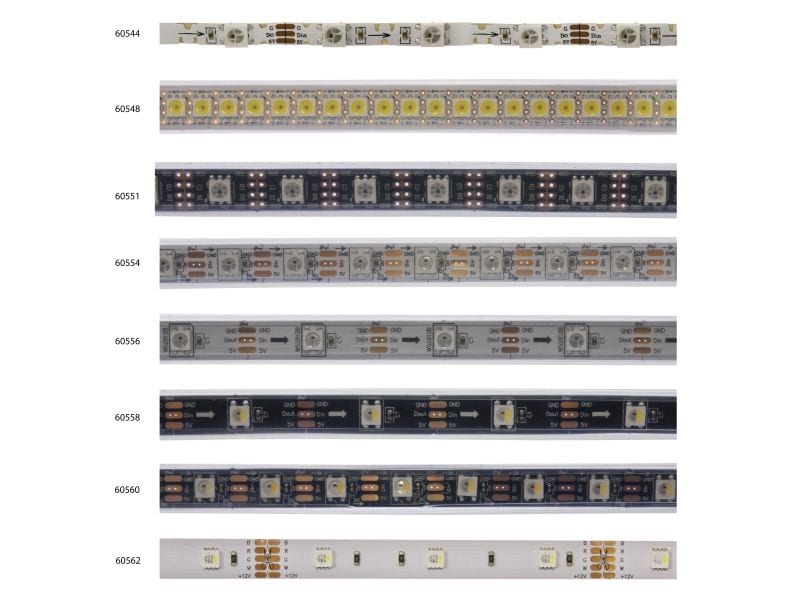

See other new LED strips that we carry:
SKU 60544 5V RGB Addressable Serpentine Stripxel (48/M, 2.5M spool)
SKU 60548 5V StripStar Addressable WHITE ONLY 144/M LED strip
SKU 60551 5V Addressable RGB Stripxel LEDs (60/M, APA102, Black PCB)
SKU 60554 5V RGB Addressable LED Stripxel (60/M, WS2812B, White PCB)
SKU 60556 Full Colour LED flexible strips WS2811/1903IC, waterproof
SKU 60558 Color LED strip, 30pcs LED SK6812RGBW IC/m, waterproof, IP65
SKU 60560 Full Colour LED strip, 60pcs LED &60pcs APA102C /m, waterproof, IP65
SKU 60562 RGBW LED flexible strips with IC, WS2811 IC/m Non-waterproof
