PCBGrip Tri Nut Accessory (pairs)

52822

4.60 USD
Qty
Price
1
$4.60 ea.

Inserting and aligning nuts into Openbeam can be a bit tricky, but this clever, simple tri-nut insert is a simple, effective solution to the problem.


Description [Hide]

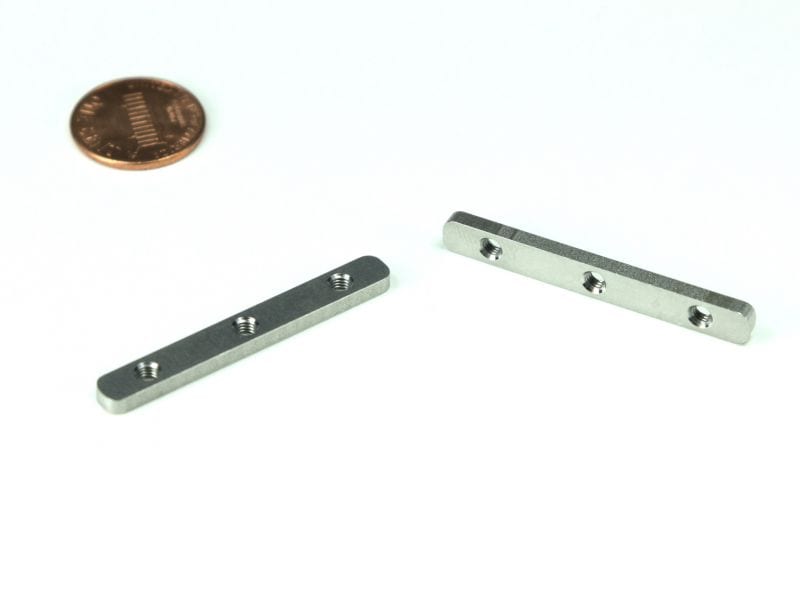

Sometimes aligning up the 3mm nuts into Openbeam channel can be a real trick, like those tricky ball-bearing puzzles. Fortunately, PCBGrip has made these really nice "tri-nuts", which are three M3 threaded holes spaced 15mm apart in a handy plate.

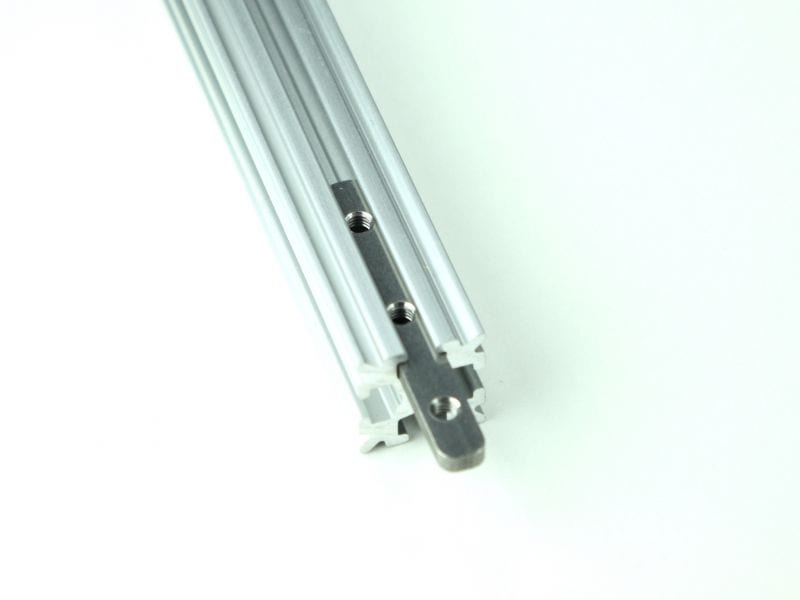

Slide the plate into an Openbeam rail, and you'll find they line up easily and precisely with the holes in your PCBGrip accessories.


Specifications:

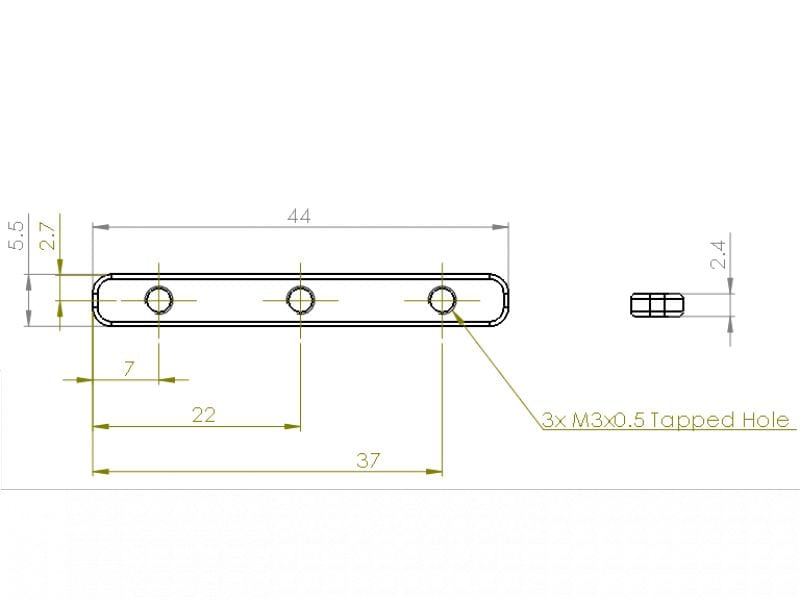

  • 3 x M3 threaded holes, on 15mm centers
  • Stainless steel plate
  • Openbeam compatible
