3W Stereo Bluetooth Interface, 3.7 ~ 5VDC

52276

12.95 USD
Qty
Price
1
$12.95 ea.

Here's a stereo bluetooth v4.2 module. Make your own portable speakers!


Description [Hide]

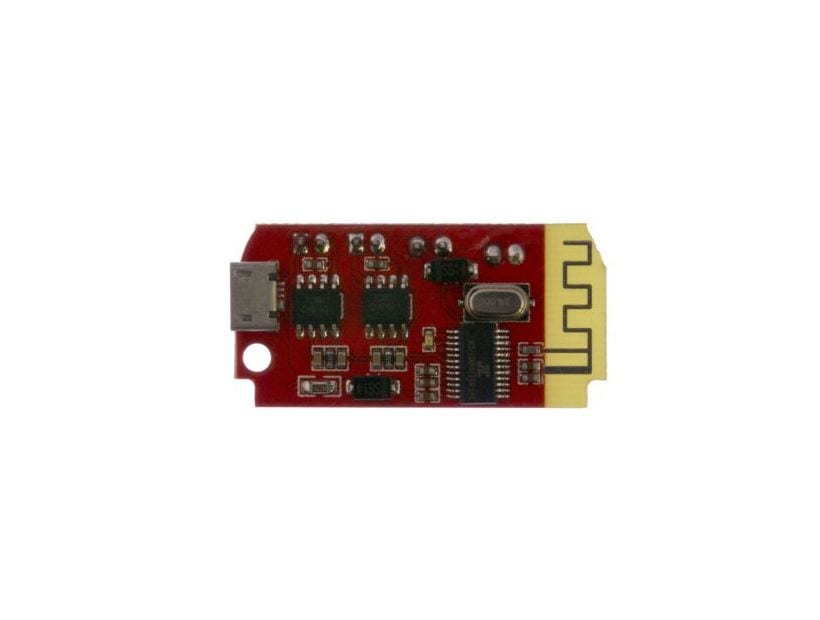

This nifty Bluetooth module does one thing, but it does it well: give it some power and it will drive 2 small speakers. Perfect for a DIY portable speaker system. When powered up, you should see a Bluetooth device called "DW-CT14+" - connect to that, then play some audio!

Bluetooth version: the bluetooth version is 4.2. It can be compatible with all mobile phone and bluetooth adapters on the market. The distance is about 15 meters. Supports automatic return of paired devices and automatically broadcasts music.

You can also power this with a lithium polymer battery to make it completely portable!

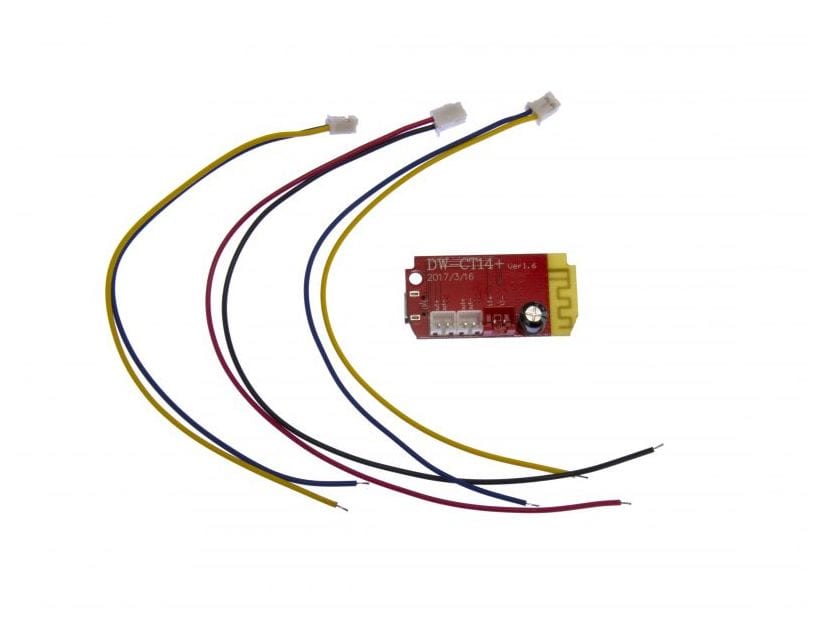

Pigtails included!

Specifications:

  • Dimensions: 19.8mm (w) x 40.5mm (l) x 11.3mm (d)
  • Transmission Distance: 15 Meters
  • Speaker Impedance: 2-8 Ohms
  • Speaker Power: 3 Watts
  • Working Voltage: 3.7V - 5V
  • Max Voltage: do not exceed 5.2V
  • Max Current: 2A

Note: Do NOT attempt to "mono sum" the speaker outputs.  They are individual amplifier chips and "summing" will cause damage.  To maximize the range, the integrated Bluetooth antenna should not be close to metal parts.
