4-channel Relay Arduino Interface Shield
52268
15.95
USD
Qty
Price
1
$15.95 ea.
It's a convenient way to add 4 channels of major power-control to your Arduino with a minimum of fuss.
Description [Hide]
If you want to drive an inductive load, or AC, or DC, or mysterious load, you can't beat a relay. It just works. It isn't fast, but it sure is powerful.

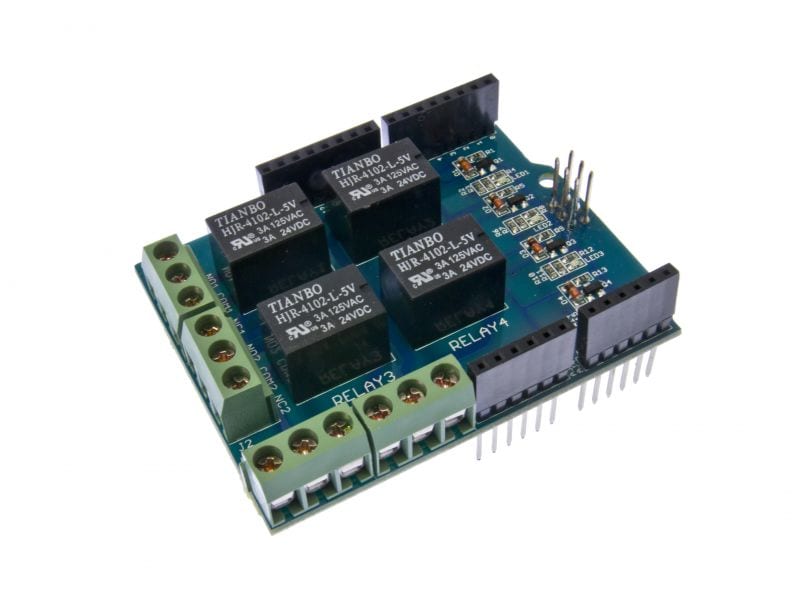

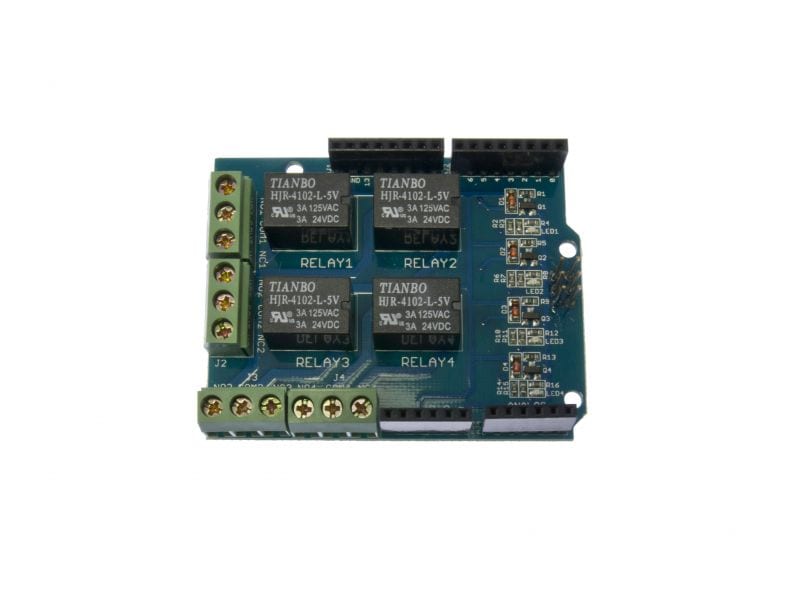

This shield plugs directly onto a standard Arduino footprint device, and you have 4 relays at your command.

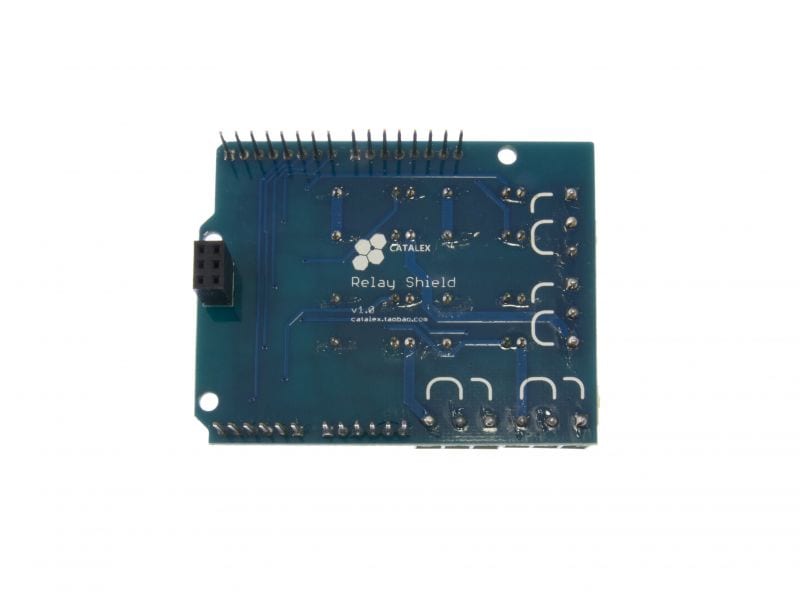

Note: Please ensure the back of the board is insulated before attaching to an Arduino main board. The green terminal blocks can short out against a metallic surface like the top of the USB connector!
Specifications:
- Operating Voltage 5V
- Operating Current 130mA
- Max Switching Current 3A
- Power voltage: 4.75~5V;
- Power consumption (at 5V): 180mA;
- Limit relay operation to no more than 30 cycles per minute
- Relay maximum ratings AC 125V@3A, DC 24V@3A
- 70 x 54 x 26mm (2.76 x 2.13 x 1.02")
- Weight 1.41 oz (40 g)
Documentation [Hide]

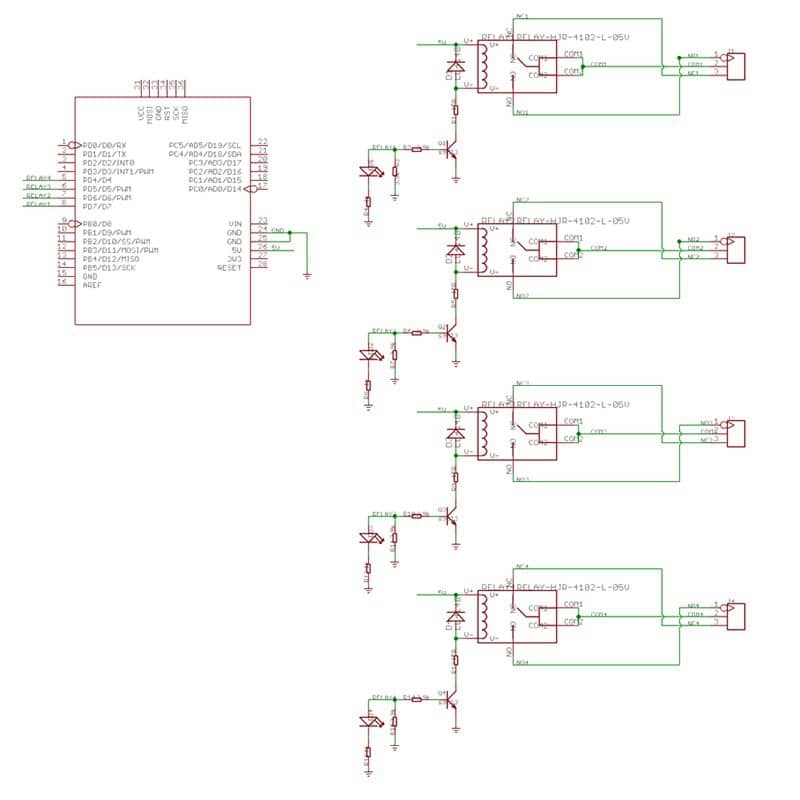

- [Schematic]: 4 Channel Relay Shield Schematic

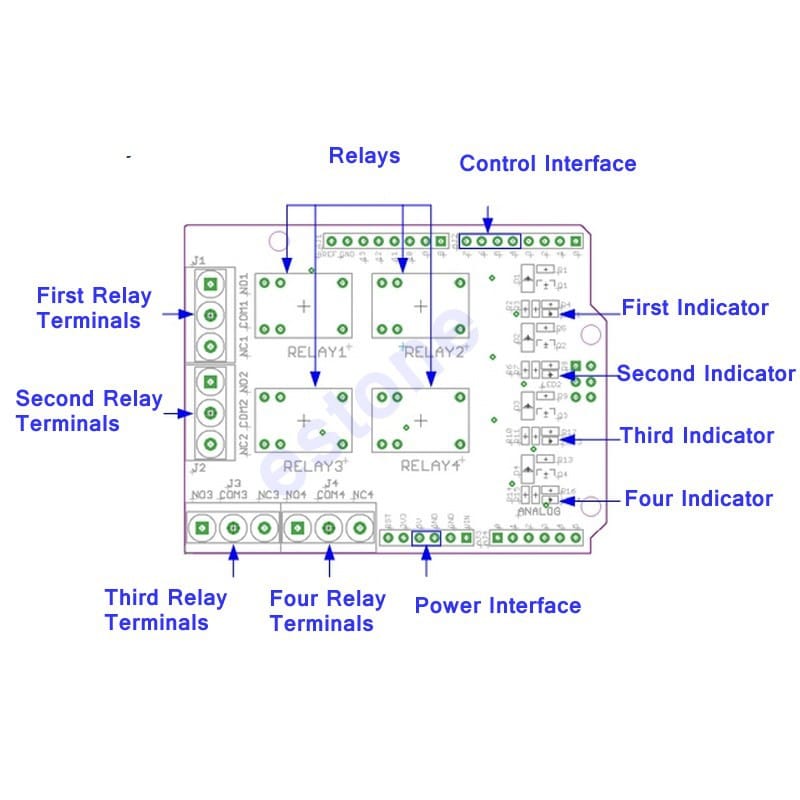

- [Documentation]: Wiring Diagram
