Teensy USB Board, Version 3.6 without Pins

52072

29.25 USD
Qty
Price
1
$29.25 ea.

PJRC did it again! Arduino compatible, 32bit, and a 180MHz ARM Cortex M4!


Description [Hide]

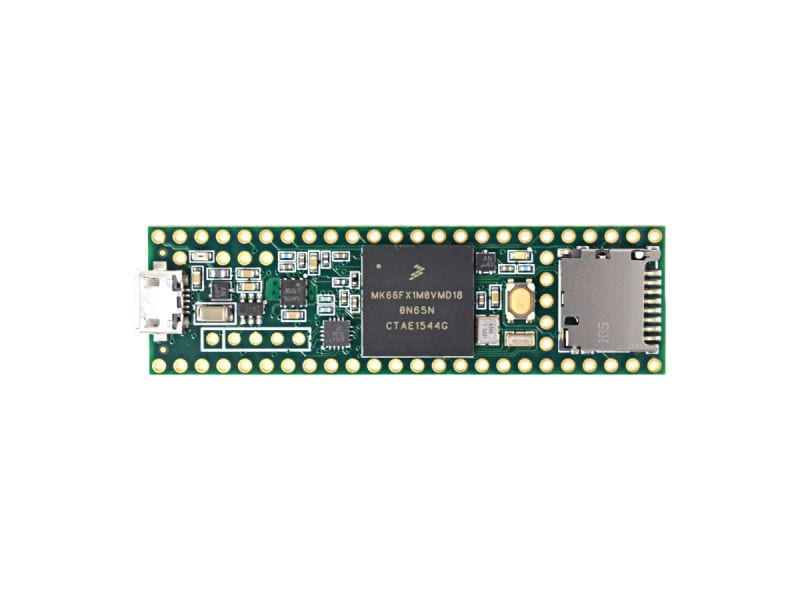

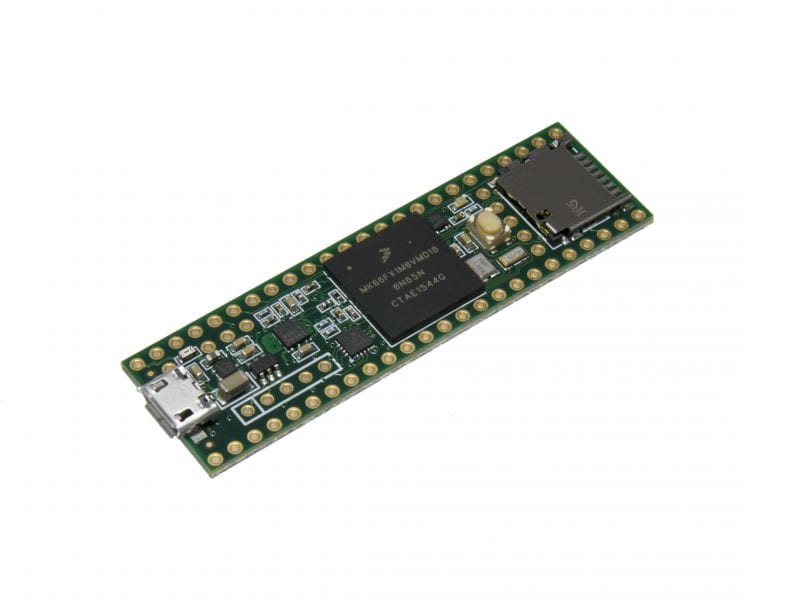

The Teensy USB Development Board is a complete USB-based microcontroller development system.

Version 3.6 features a 32 bit 180 MHz ARM Cortex-M4 processor with floating point unit. All digital and analog pins are 3.3 volts. Do not apply more than 3.3V to any signal pin.

Teensy 3.6 brings a low-cost 32-bit ARM Cortex-M4 platform to hobbyists, students, and engineers, using an adapted version of the Arduino IDE (Teensyduino) or programming directly in C language. Teensy 3.6 is an upgrade over 3.2 and 3.5, for when you need even more power!

Version 3.6 features a 32 bit 180 MHz ARM Cortex-M4 processor with floating point unit. All digital and analog pins are 3.3 volts. Do not apply more than 3.3V to any signal pin. The unique specs for the 3.6 are:

  • 180 MHz ARM Cortex-M4 with Floating Point Unit
  • 1M Flash, 256K RAM, 4K EEPROM
  • Microcontroller Chip MK66FX1M0VMD18 (PDF link)
  • USB High Speed (480 Mbit/sec) Port
  • 2 CAN Bus Ports
  • 32 General Purpose DMA Channels
  • 22 PWM Outputs
  • 4 I2C Ports
  • 11 Touch Sensing Inputs
  • 62 I/O Pins (42 breadboard-friendly)
  • 25 Analog Inputs to 2 ADCs with 13 bits resolution
  • 2 Analog Outputs (DACs) with 12-bit resolution
  • 22 PWM Outputs
  • USB Full Speed (12 Mbit/sec) Port
  • Ethernet mac, capable of full 100 Mbit/sec speed
  • Native (4 bit SDIO) micro SD card port
  • I2S Audio Port, 4 Channel Digital Audio Input & Output
  • 14 Hardware Timers
  • Cryptographic Acceleration Unit
  • Random Number Generator
  • CRC Computation Unit
  • 6 Serial Ports (2 with FIFO & Fast Baud Rates)
  • 3 SPI Ports (1 with FIFO)
  • 4 I2C Ports
  • Real Time Clock

The latest in the line of very powerful, USB-capable microcontrollers, the 3.6 development board is faster, more capable, and larger, putting even more pins on a solderless breadboard. Teensy 3.6 offers more in its features (MCU, RAM, Flash, clock and some peripherals) than Teensy 3.5, and only the 3.6 has a USB High Speed (480 Mbit/sec) port accessed using 5 pins on the board.


More Specifications, Details & Features:

Information, documentation, and specs are on PJRC's site.
