Teensy USB Board, Version 3.5 without Pins

52070

24.25 USD
Qty
Price
1
$24.25 ea.

PJRC did it again! Arduino compatible, 32bit, 120MHz ARM Cortex M4, and 5V tolerant to boot!


Description [Hide]

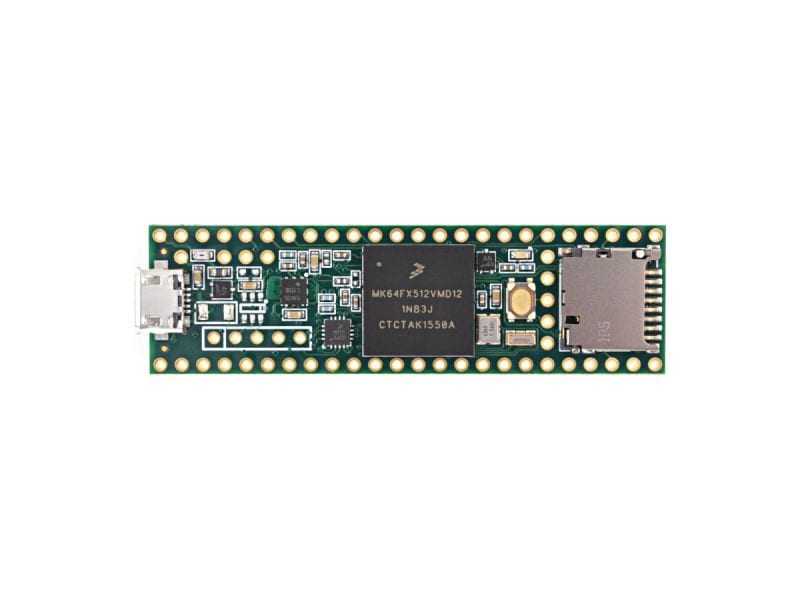

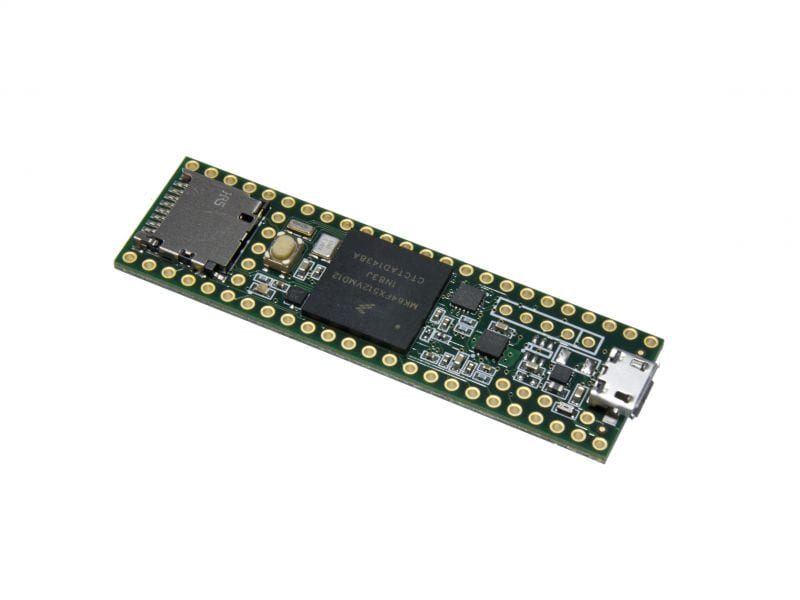

The new Teensy 3.5 is a small, breadboard-friendly development board developed by Paul Stoffregen and PJRC. Teensy 3.5 brings a 32-bit ARM Cortex-M4 platform to hobbyists, students and engineers, using an adapted version of the Arduino IDE (Teensyduino) or programming directly in C language.

Specifications:

  • 120 MHz ARM Cortex-M4 with Floating Point Unit
  • 512K Flash, 192K RAM, 4K EEPROM
  • Microcontroller Chip MK64FX512VMD12 (PDF link)
  • 1 CAN Bus Port
  • 16 General Purpose DMA Channels
  • 5 Volt Tolerance On All Digital I/O Pins

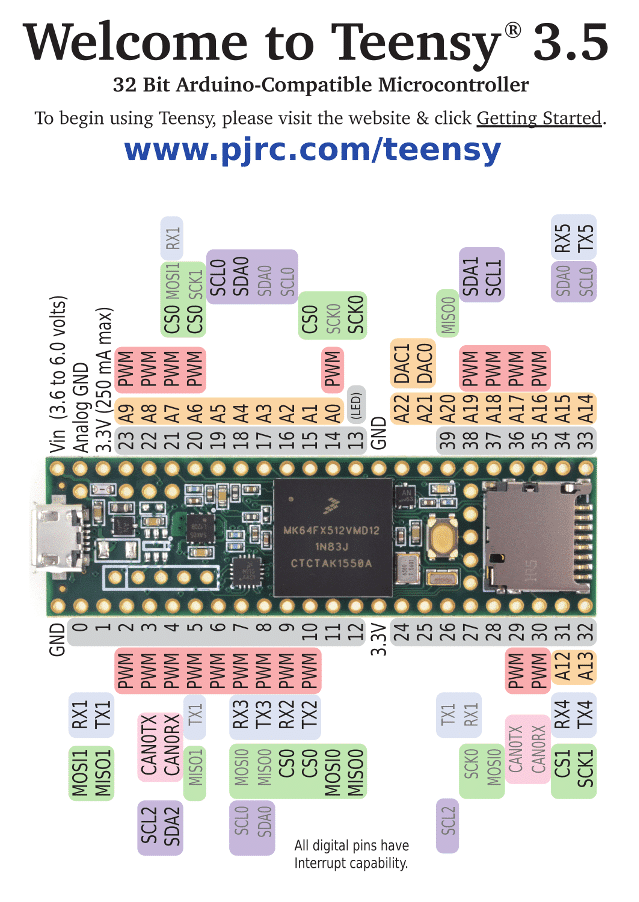

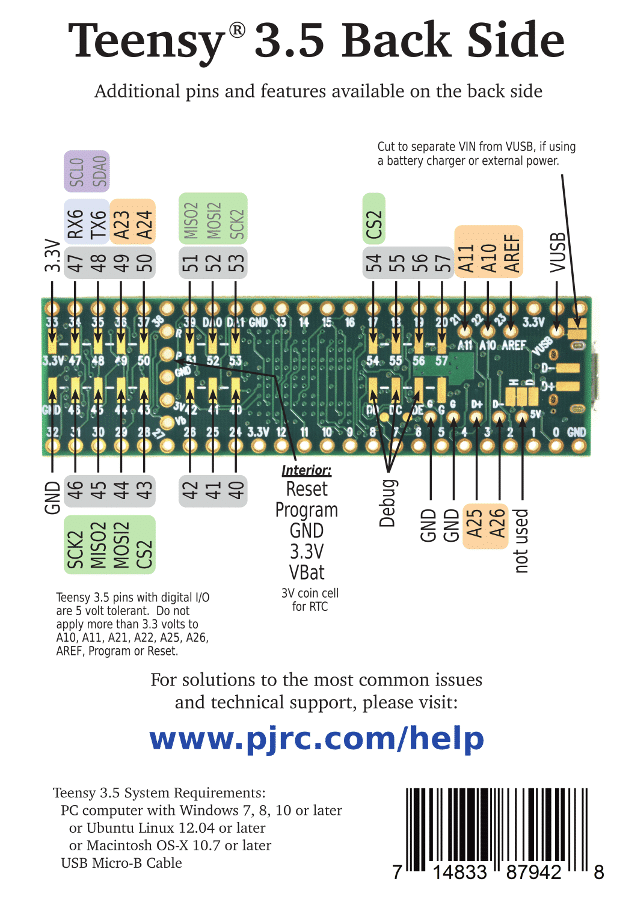

  • 62 I/O Pins (42 breadboard friendly)
  • 25 Analog Inputs to 2 ADCs with 13 bits resolution
  • 2 Analog Outputs (DACs) with 12 bit resolution
  • 20 PWM Outputs
  • USB Full Speed (12 Mbit/sec) Port
  • Ethernet mac, capable of full 100 Mbit/sec speed
  • Native (4 bit SDIO) micro SD card port
  • I2S Audio Port, 4 Channel Digital Audio Input & Output
  • 14 Hardware Timers
  • Cryptographic Acceleration Unit
  • Random Number Generator
  • CRC Computation Unit
  • 6 Serial Ports (2 with FIFO & Fast Baud Rates)
  • 3 SPI Ports (1 with FIFO)
  • 3 I2C Ports
  • Real Time Clock

The latest in the line of very powerful, USB-capable microcontrollers, the Teensy 3.5  development board is faster, more capable, and bigger, putting even more pins on a solderless breadboard.

Also available:
Teensy 3.6
