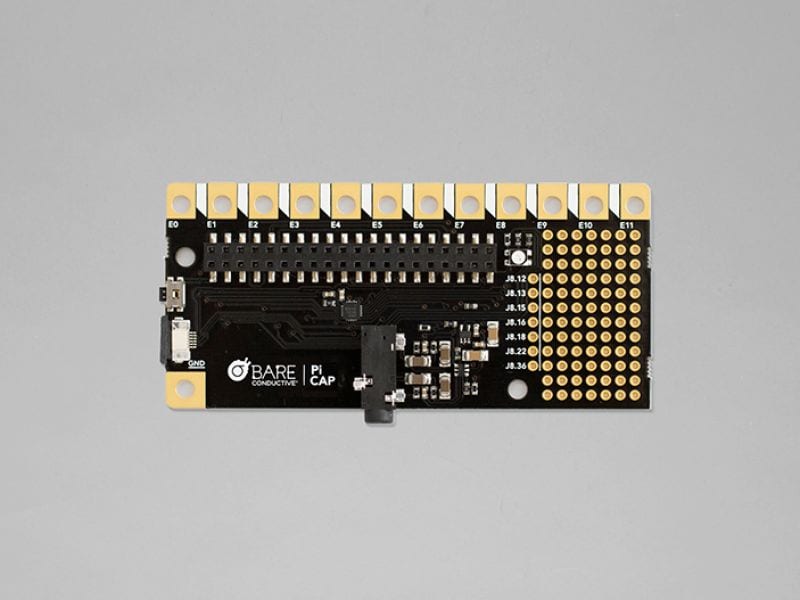

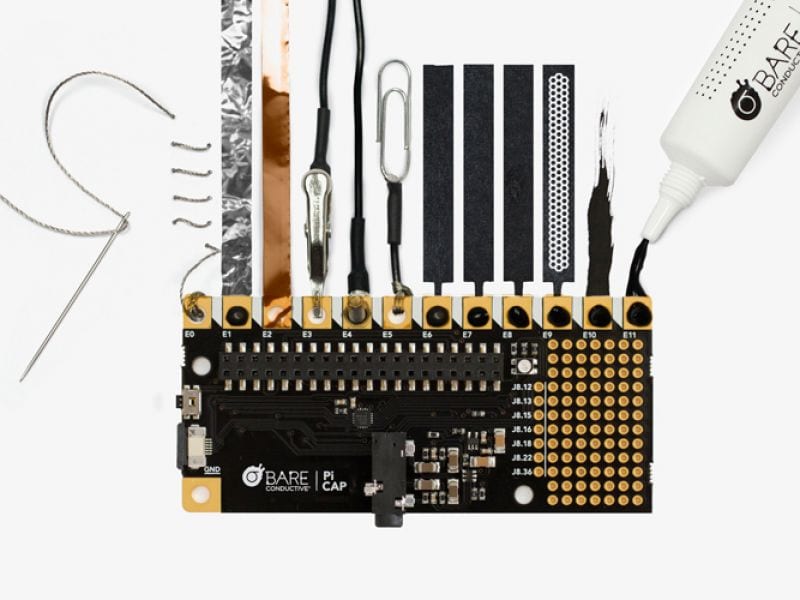

Give your RaspberryPi the functionality of Bare Conductives Touch Board with the use of this handy Pi Cap. Create sensors by connecting Electric Paint or anything conductive to one of the Pi Cap’s 12 electrodes to control audio, video or connect to the internet. Make a MIDI piano, an interactive wall, a proximity sensor. The included Raspbian package contains code examples for C++, Python and Node.js.

Features:

Capacitive touch and distance sensing
High quality audio output
User-programmable RGB LED
Multi function button
Prototyping area with GPIO breakout

Specifications:

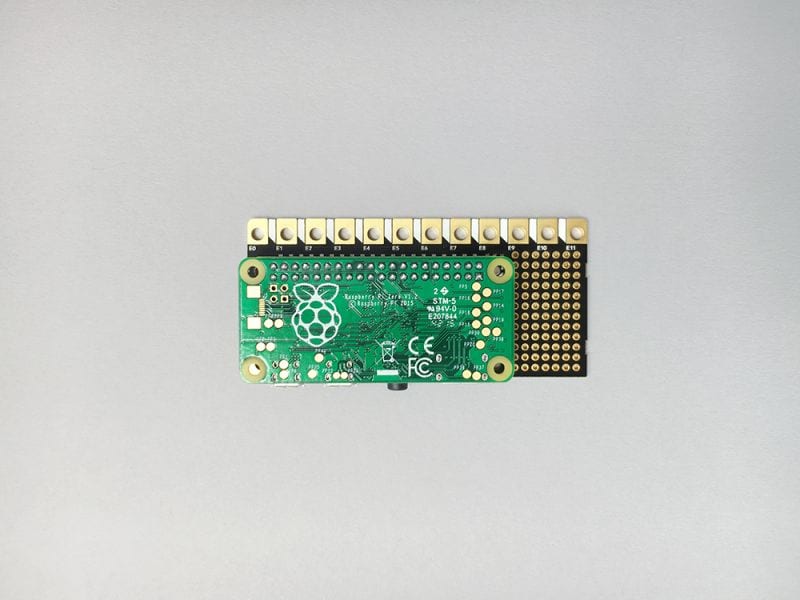

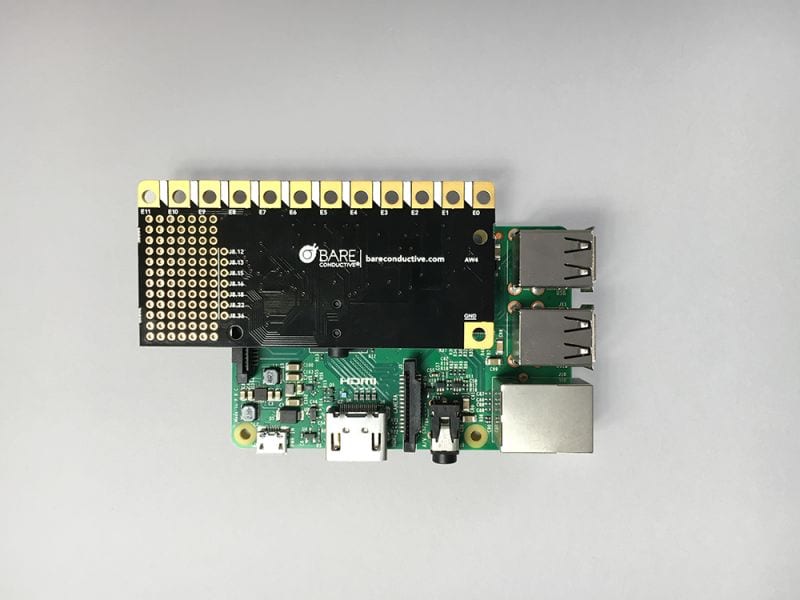

Compatible with Raspberry Pi A+, B+, Zero (or any Pi with 40 pin GPIO connector).

Documentation ^[Hide]

[Data Sheet]: Pi Cap Technical Data Sheet
[Data Sheet]: Pi Cap Pin Map
[Documentation]: Pi Cap Raspberry Pi Guide
