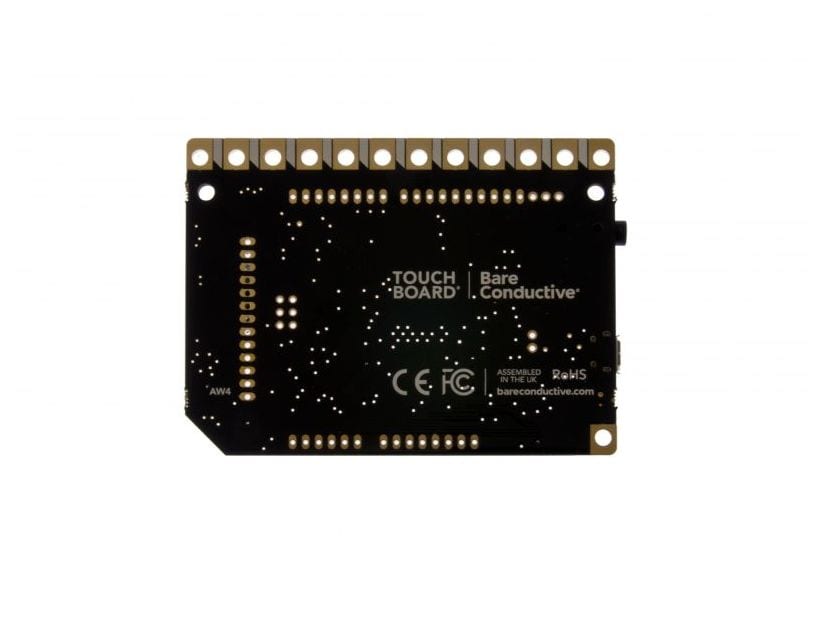

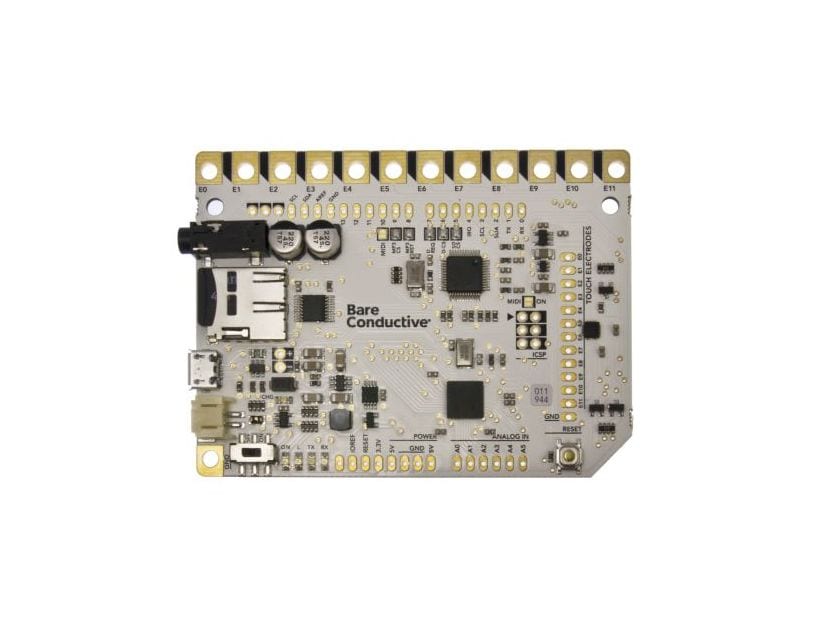

Touch Board

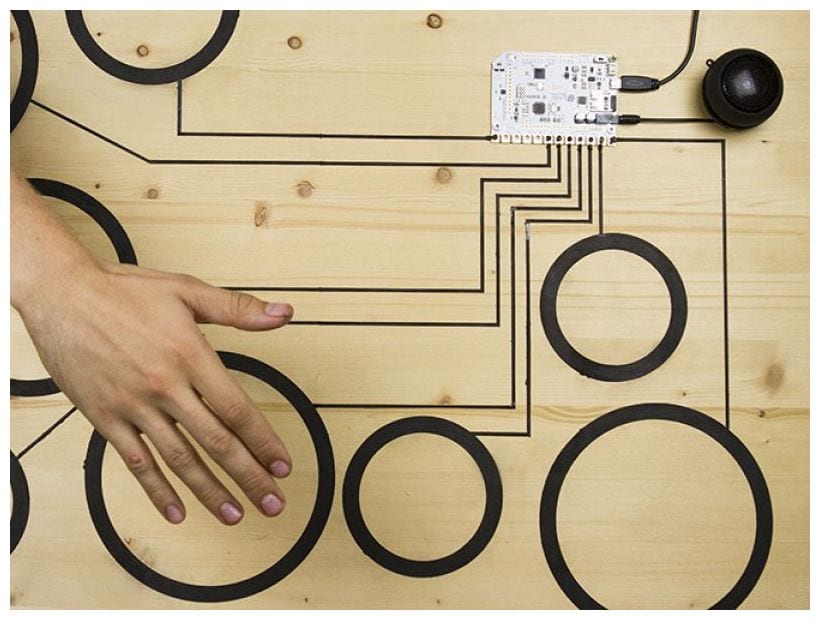

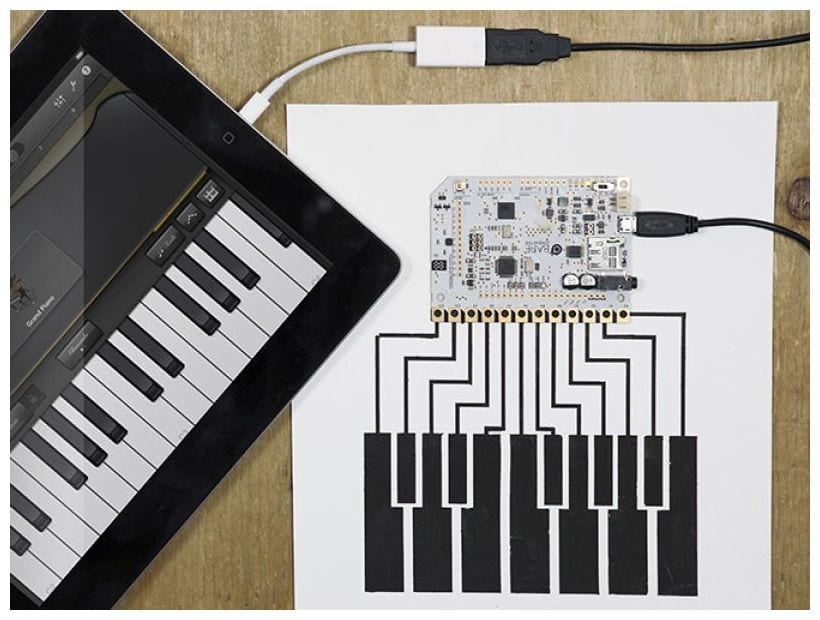

The Bare Conductive touch board lets you add interactivity to just about any medium when combined with circuitry and the Bare Conductive Electric Paint. One tool can open a whole host of possibilities such as making a MIDI piano, interactive wall, proximity sensor, or other mixed human/electronic interfaces. It can trigger sounds through its MP3 player and is completely programmable through the Arduino IDE!

Not sure where to get started? Take a look at the Touch Board Starter Kit. It comes with all the materials and ideas you need to get making today!

Included:

• 1 x Touch Board
• 1 x MicroSD card

Features:

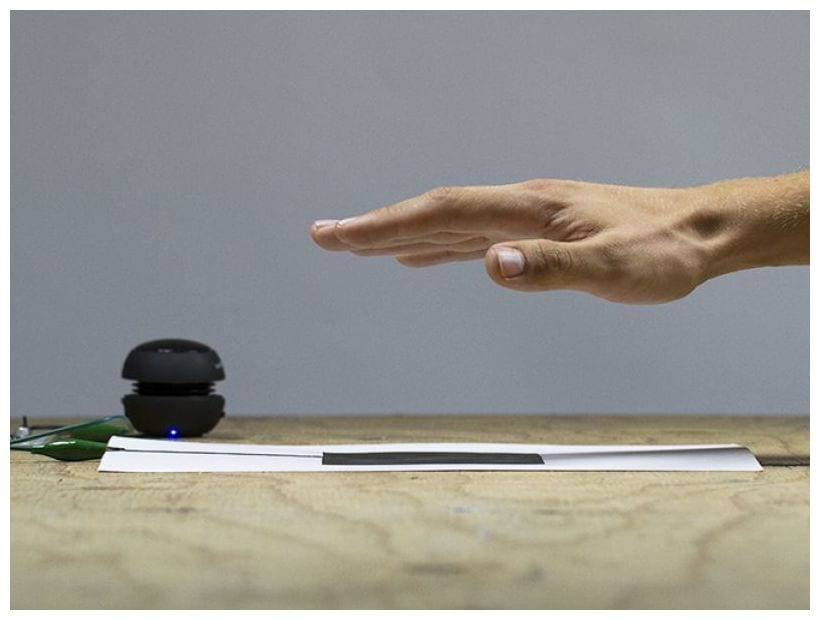

• Capacitive touch and distance sensing
• Arduino Compatible
• No programming required
• Code and libraries for the Arduino IDE available for optional programming
• Preprogrammed as an MP3 player

Specifications:

• USB HID compatible
• USB MIDI compatible
• USB CDC compatible
• Built-in LiPo charger
• 20 digital I/O pins
• 12 analog pins
• 3.5mm audio jack
• 32kB of flash memory (4kB used for bootloader)
• 5V operating voltage

Precautions of use:
Children under 14 years of age must be supervised by an adult whilst using this product. This board may be powered over USB, by an approved 3.7V Lithium Polymer cell or a 3.0~5.5V DC power supply. Observe battery polarity markings carefully before use. Do not use on conductive/met-­‐al surfaces as this may short circuit the board and damage it. Bare Conductive takes no for external circuitry connected to this board.

Resources:

Touch Board Workshop Manual
Touch Board Techniques and Inspiration
Touch Board Basic Projects
Touch Board Digital Toolkit

• [Data Sheet]: Touch Board Technical Data Sheet
• [Data Sheet]: Touch Board Shield Guide
• [Data Sheet]: Touch Board Pin Map
