GM23 Motor Brackets & 18mm Wheels

51640

$13.52 USD
Qty
Price
1
$13.52 ea.

The microbot revolution has arrived! These brackets and 18mm wheels are much needed accessories to make great use of the tiny GM23 Gear Motor.


Description [Hide]

Didel specializes in making parts for miniature robots, so when they approached us to carry the 18mm wheels and brackets, we had to accept. Using the combination of these wheels & brackets, with GM23 Gear Motors is ideal for applications such as tiny robots, business card feeders/dispensers, or use the wheels themselves to couple to something larger. A great feature of the wheels is that they incorporate mounting holes if you like to attach external items to the motors like legs, bigger wheels, blinky lights, etc.

Looking for a bit larger wheel size? Check out the 32mm wheels.

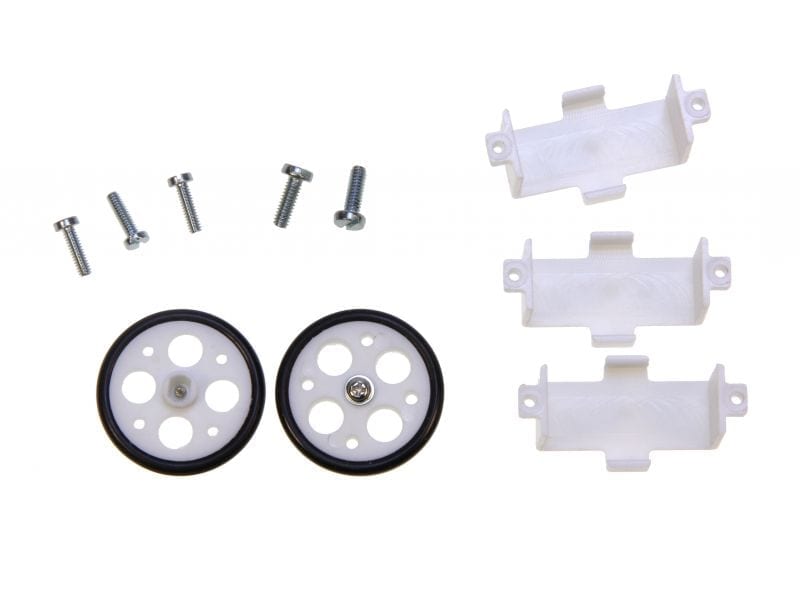

Includes:

  • 2 - GM23 Bracket
  • 2 - 18mm Wheel + Philips Mounting screw
  • 5 - 1.5mm x 5.75mm Slot-head Mounting hardware

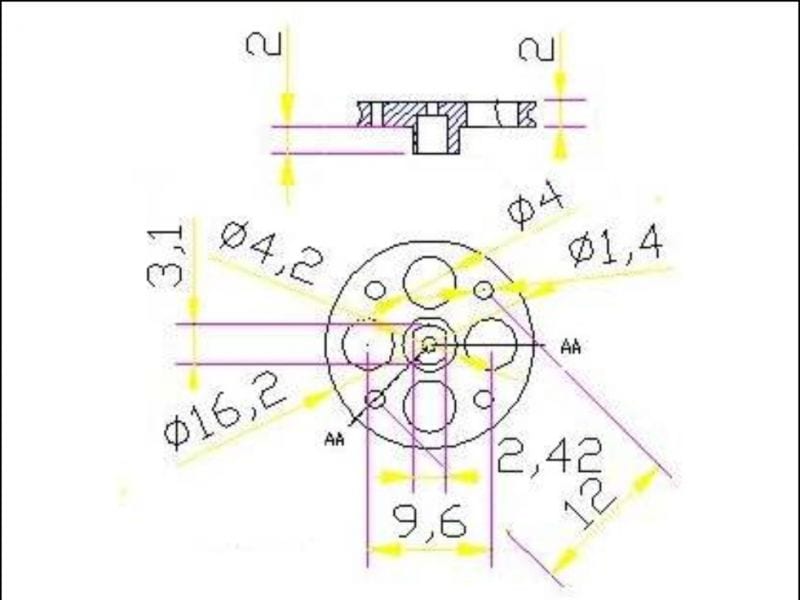

Specifications:

  • True Hub diameter: 16.2mm (0.637")
  • True Hub + O-ring diameter: 19.2mm (0.753")
  • Hub thickness: 2mm (0.080")

 Note: You'll need to find your smallest philips (PH000) and slotted precision screwdrivers or bits for fastening down the hardware.
