Didel GM17 Encoder

51510

11.95 USD
Qty
Price
1
$11.95 ea.
2+
$10.20 ea.

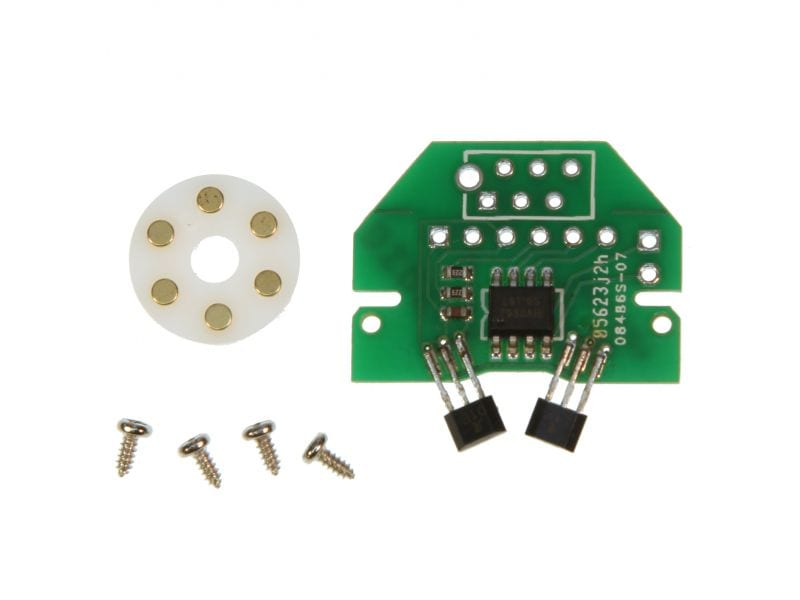

Here's a really cool quadrature encoder and motor driver for the GM17 Gear motor designed by the micro-specialists at Didel.


Description [Hide]

The DIDEL ROM-Enco is not just a simple encoder that counts the blips as the wheel turns. It's specially designed to mate with our GM17 gearmotors to offer these features:

  • Magnetic encoding detection, not optical!
  • Quadrature detection - know if it's going clockwise or counter-clockwise
  • 12 pulses per motor rotation * 228:1 gearbox = 2736 pulses per rotation! (Can be reduced to 912 by removed extra magnets)
  • Built-in motor driver
    • 3.5 to 6VDC input
    • PWM / PFM input frequency of 500~1000 Hz
    • 800mA drive current (and with this motor, that's plenty of power)
  • 6-pin connection interface (0.1" spacing) with
    • 1 - Gnd
    • 2 - Vcc (3.5~6VDC)
    • 3 - Encoder channel 1
    • 4 - Encoder channel 2
    • 5 - Motor control 1
    • 6 - Motor control 2

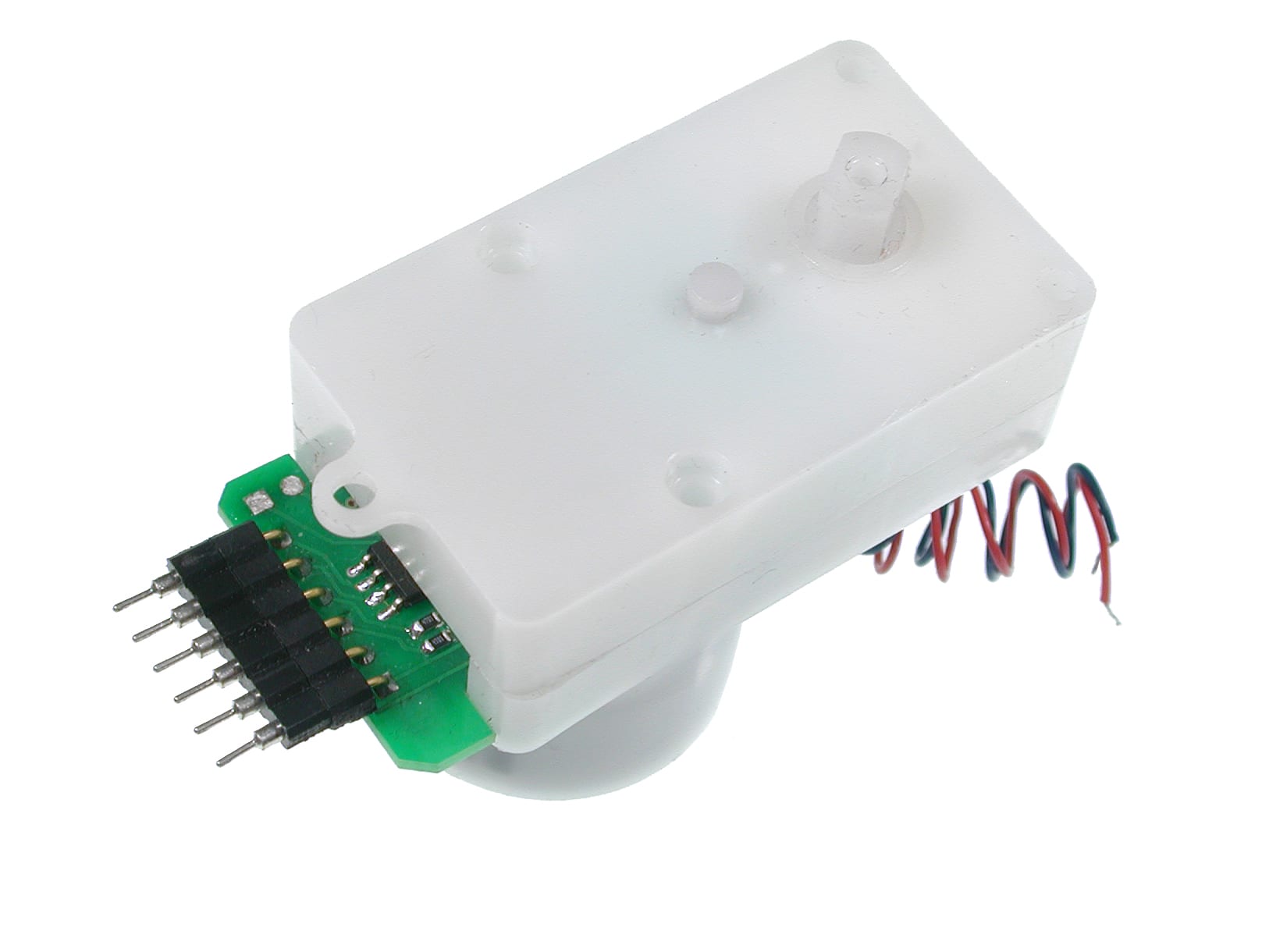

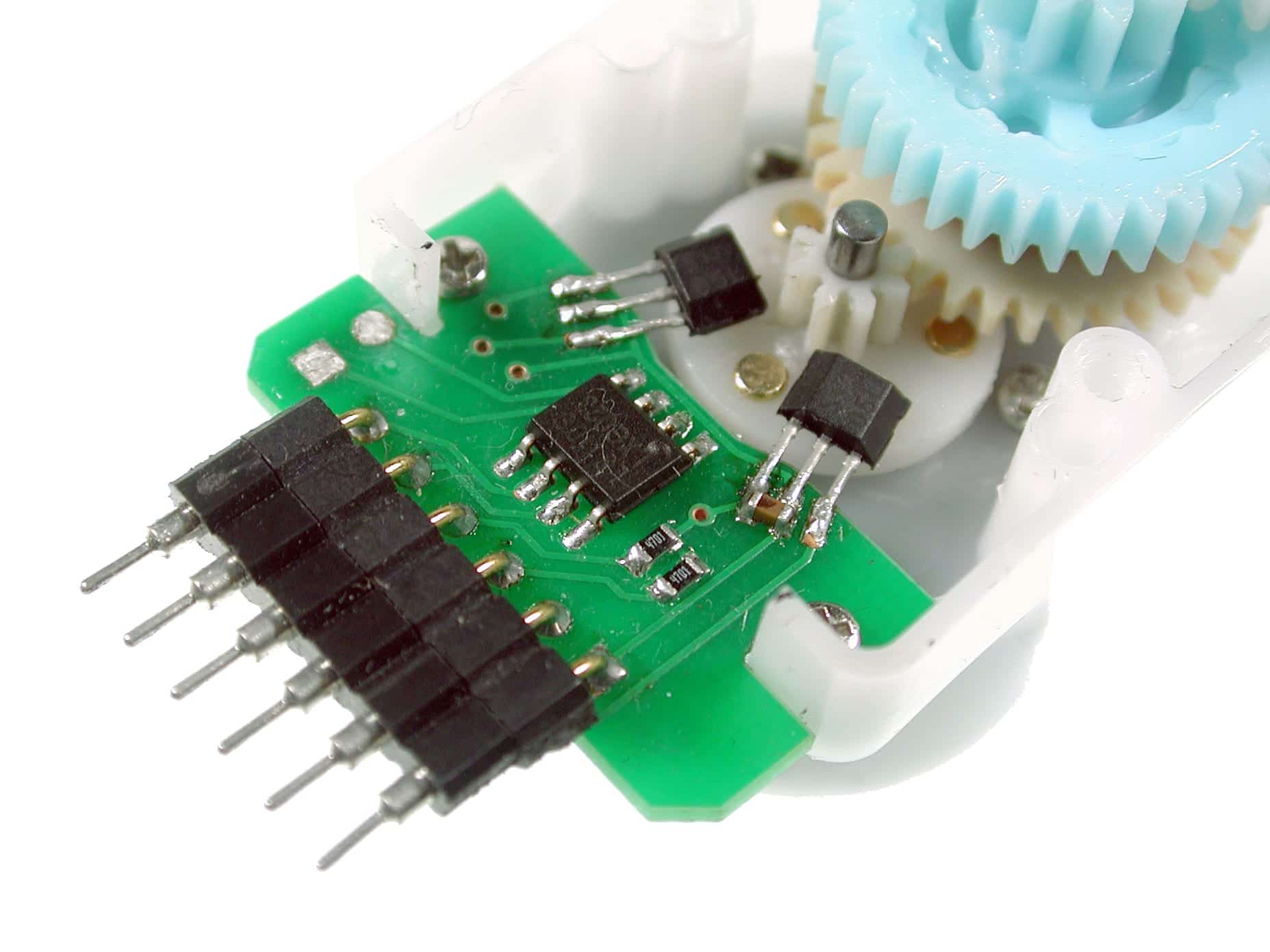

We must warn you that to mount these encoders into the GM17 requires some skill. It requires some dismantling and modification to the motor body to install the ROM-Enco. Fortunately, DIDEL has put together an excellent step-by-step set of instructions for this purpose.

Note: This is just the encoder - GM17 gearmotor not included
