15.5D mm Metal Gearmotor Bracket
51075
4.95
USD
Qty
Price
1
$4.95 ea.
10+
$4.25 ea.
Long have we waited for an efficient way to mount micro metal gearmotors to our projects, that day has finally arrived! The 15.5D mm Metal Gearmotor Bracket has come to save the day, who needs Superman...
Description [Hide]
These light-weight aluminum brackets (under 2 g each) are specifically designed for micro metal gearmotors. Each bracket features 4 mounting holes for the motor and 6 mounting slots & 4 mounting holes to secure the bracket down. A total of 6 M2 screws (3 for each bracket) are included.
Note: While these brackets can be used to mount all our micro metal gearmotors, the included M2 screws only fit our GM21 motor. For the rest you'll need a pair of M1.7 screws to mount the motors to each bracket (sold separately).
Documentation [Hide]

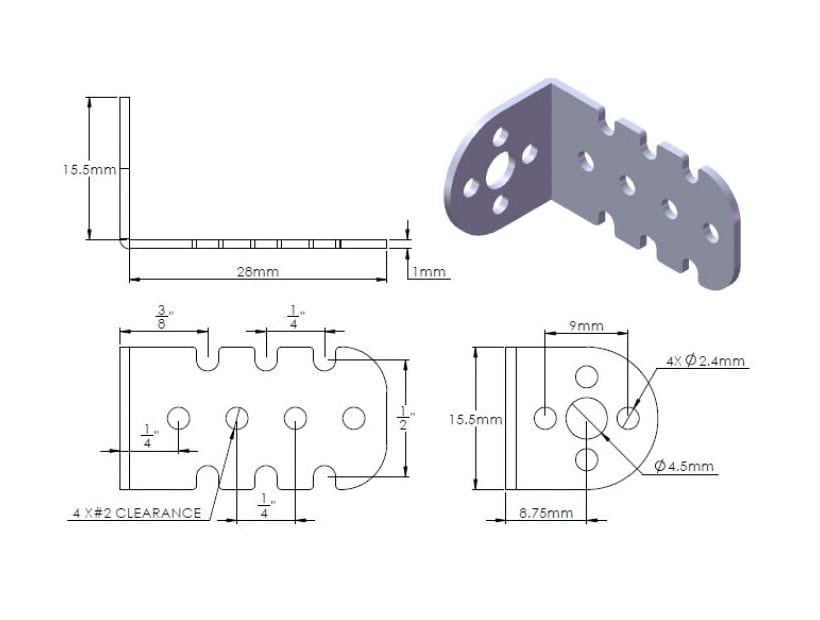

- [Schematic]: Pololu Bracket Mechanical Drawing - Nov 2012
