DSO Nano - Pocket-Sized Digital Oscilloscope

50850

$109.95

USD

Qty
Price
1
$109.95 ea.

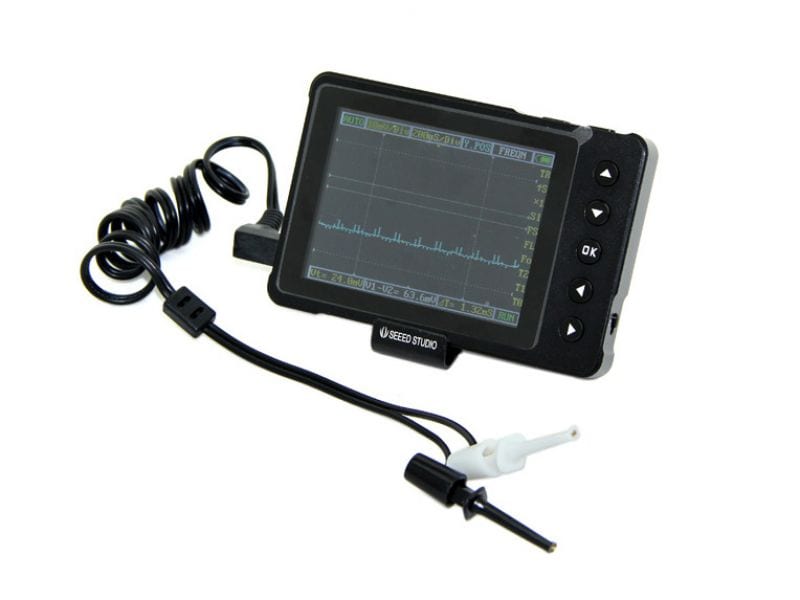

This is a compact digital oscilloscope based on an ARM Cortex™-M3 compatible 32 bit platform, equipped with a 320x240 color display, microSD card capability, USB connection, and rechargeable LiPo battery.


Description [Hide]

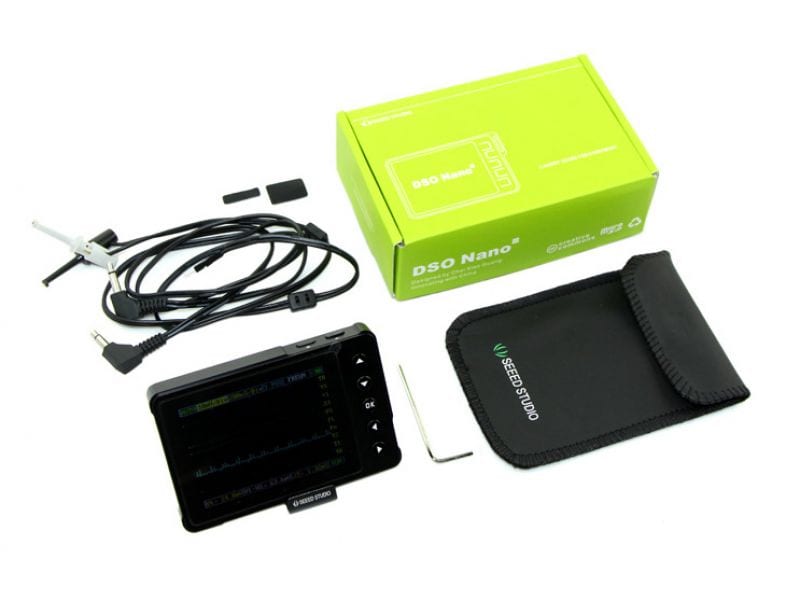

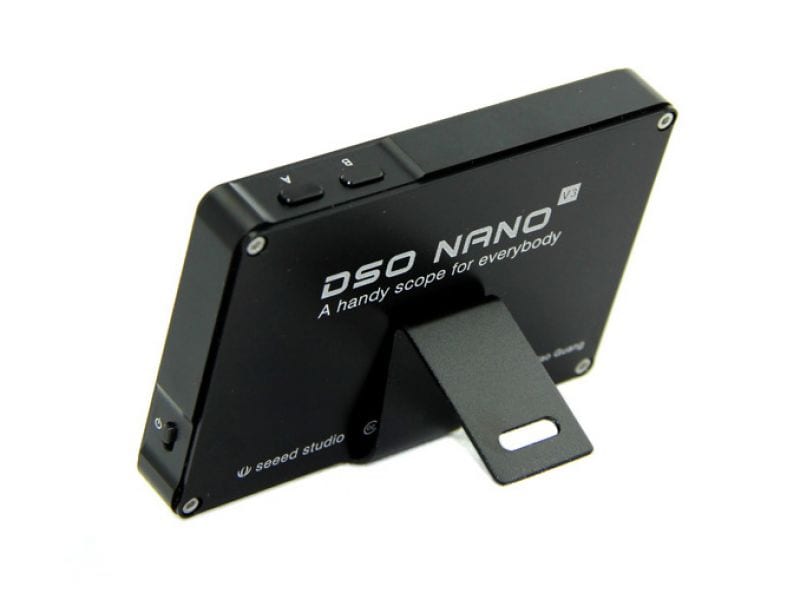

DSO Nano v3 is a 32bit digital storage oscilloscope. Based on ARM-M3, it’s equipped with 320*240 color display, SD card, USB port and recharging function. It’s compact, simple to operate; meets the basic demands of school lab, electric furniture repairmen and electric engineering. The version 3 of DSO Nano differs from version 2 in that it does not use white plastic shell. Instead, it uses black metal shell which is more durable and strong. Due to palm size and handy performance, it fits in-field diagnosis, quick measurement, hobbyist projects and wherever convenience matters. Schematic and source files are also open for re-innovating.

Features
  • Portable and lightweight
  • Color display
  • Waveform storage and playback
  • 6 triggering modes
  • 200Khz Analog Bandwidth
  • Complete measurement markers and signal characteristics
  • Built-in Signal Generator
  • Accessories available
  • Open Source
Specifications

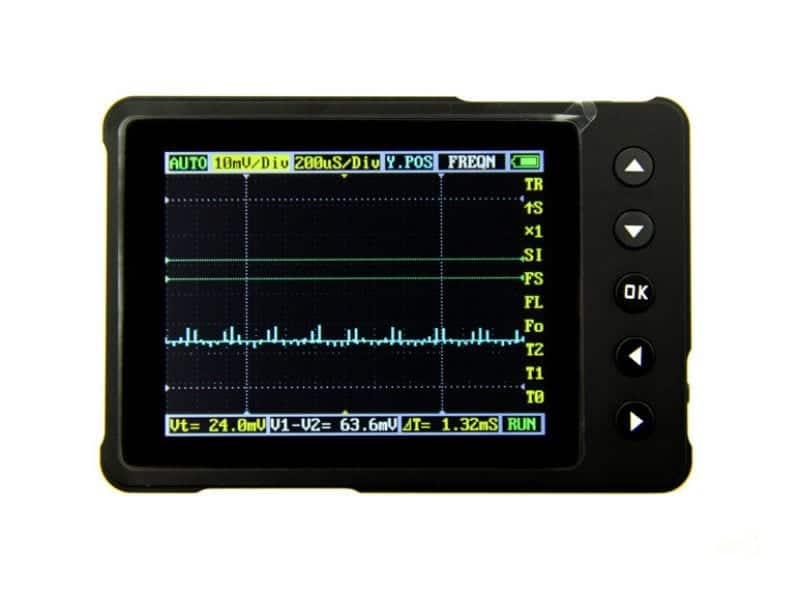

  • Display: Full Color 2.8" TFT LCD 65K 320×240
  • Analog bandwidth: 0 - 200KHz
  • Max sample rate: 1Msps 12Bits
  • Sample memory depth: 4096 Point
  • Horizontal sensitivity: adjustable with indicator
  • Vertical sensitivity: 10mV/Div~10V/Div (with ×1 probe)/ 0.5V/Div~100V/Div (with ×10 probe)
  • Vertical position: adjustable with indicator
  • Input impedance: >500KΩ
  • Max input voltage: 80Vpp (by ×1 probe)
  • Coupling: DCs
  • Trig modes: Auto, Normal, Single, None, Scan and Fit; Rising/Falling edge/level trigger; Trig level adjustable with indicator; Trig sensitivity adjustable with indicator.

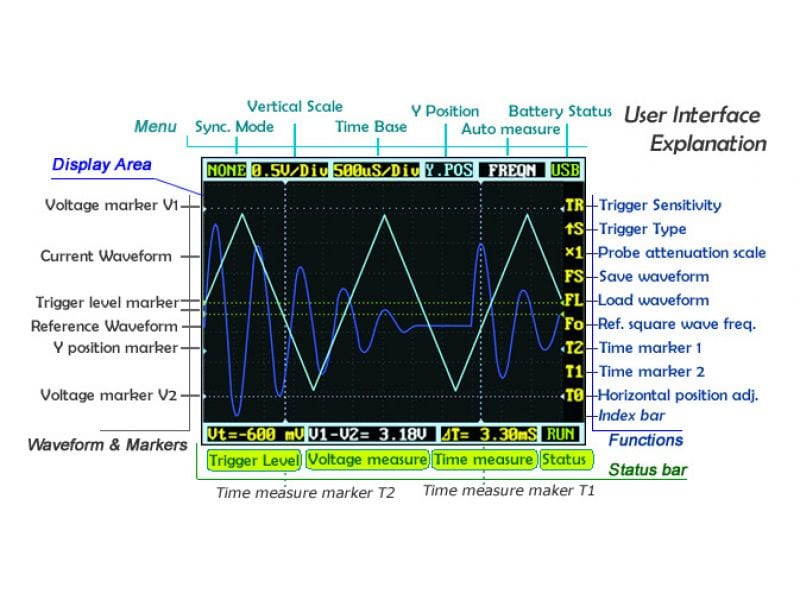

  • Waveform Functions: Auto measurement: frequency, cycle time, duty cycle, peak voltage, RMS voltage, Average voltage and DC voltage; Precise vertical/horizontal measurement with markers; Hold/Run.
  • Signal Generator: 10Hz~1MHz square wave
  • Waveform storage: Micro SD card
  • PC connection via USB: as SD card reader
  • Upgrade: USB
  • Power supply: 500mAh 3.7V Lithium battery/ USB
  • Dimension (w/o probe) 91mm*62mm*13mm
