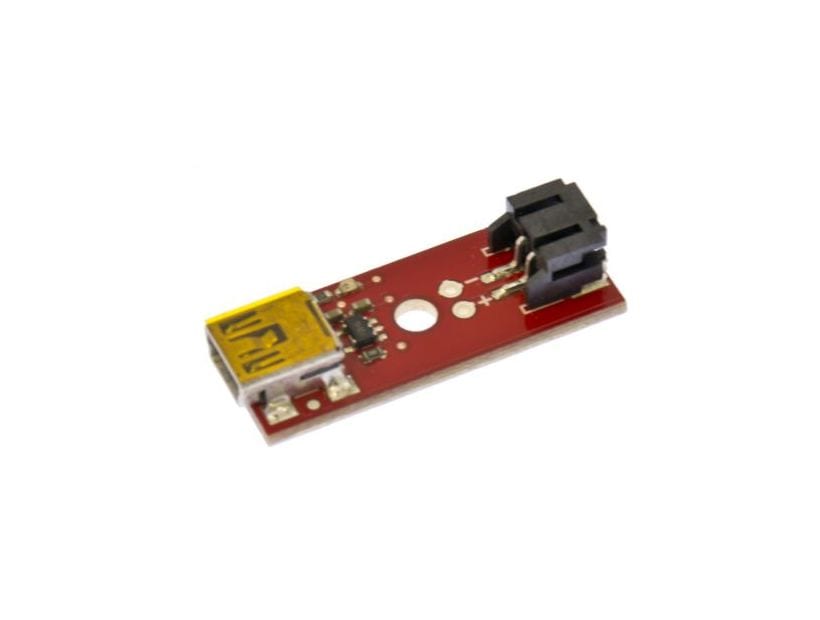

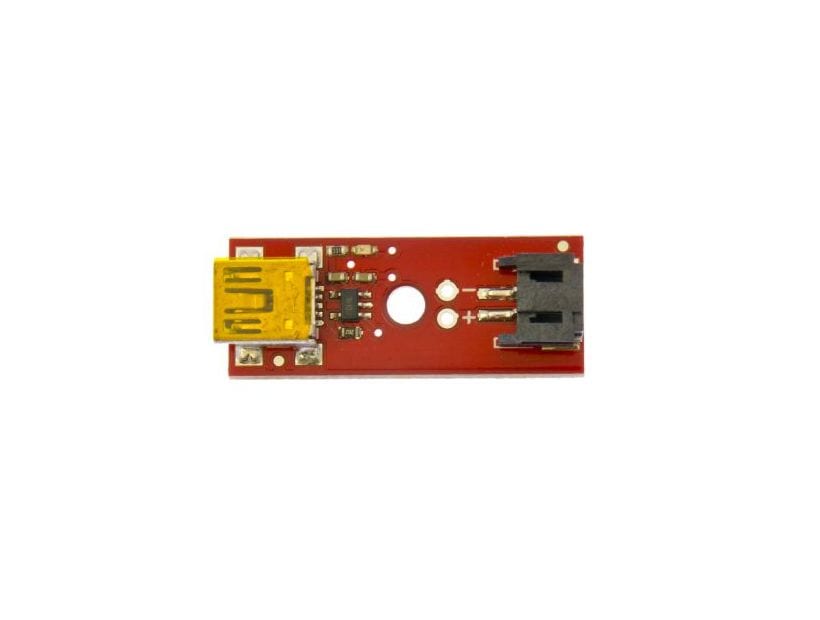

SparkFun LiPo Charger Basic - Mini-USB
50816
7.95
USD
Qty
Price
1
$7.95 ea.
Simple, no-brainer method to charge up a single cell Li-Ion / LiPo battery.
Description [Hide]
Just a simple, USB-mini connector, single-cell Li-Ion / LiPoly charger. Excellent for those emergencies when you need to get that wearable recharged from a laptop!
Features
- JST battery connector
- mini-USB connector (cable not included)
- Charging status LED
- Auxiliary solder points for custom charge connectors
Specifications
- MCP73831T charging IC
- 500mA maximum charge current
- 29.4 x 10.8mm (1.16 x 0.43")
Note: Make sure your battery matches the wiring scheme on the JST connector!
Documentation [Hide]
- [Schematic]: LiPo Charger Basic - Mini-USB Schematic - Mar 2009
- [Documentation]: Eagle Files
