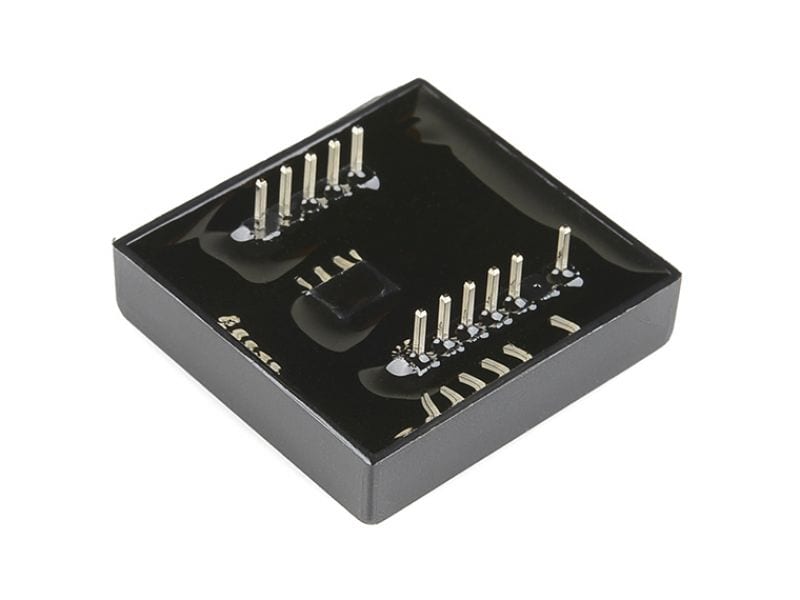

RFID Reader ID-12LA (125 kHz)

Updated from the standard ID-12, the ID-12LA revision is essentially the same, but with a lower input voltage supply

For prototyping the only holdup is the 2mm pin spacing which is rectified by using a breakout board that we also have available.

Features:

• 2.8 - 5V supply
• 125kHz read frequency
• EM4001 64-bit RFID tag compatible
• 9600bps TTL and RS232 output
• Magnetic stripe emulation output
• 120mm read range

Dimensions: 25x26mm

Links:

• mbed RFID Twitter project
• mbed Example

• [Documentation]: RFID Reader ID-12 - Jan 2013
• [Data Sheet]: Datasheet - Mar 2005
