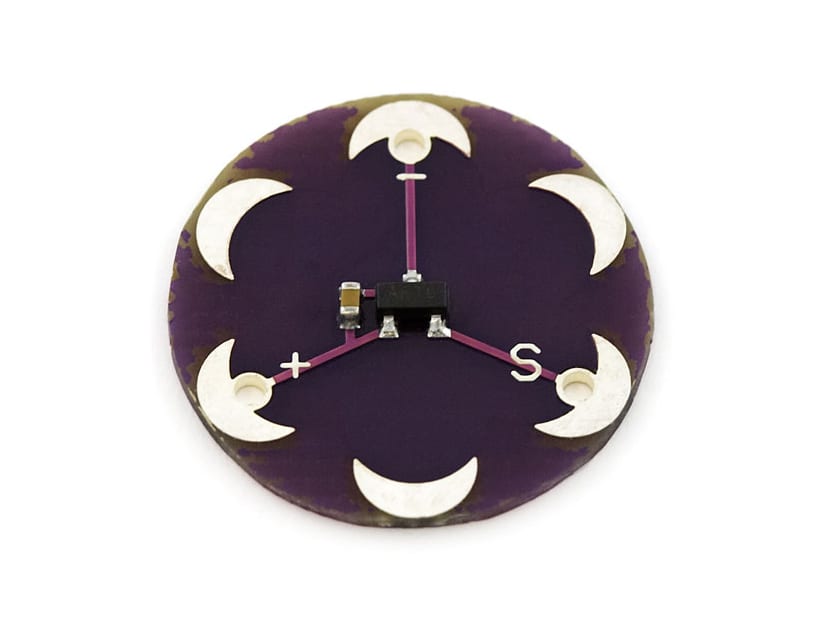

LilyPad Temperature Sensor
50654
5.00
USD
Qty
Price
1
$5.00 ea.
Detecting temperature changes has never been easier. The MCP9700 is a small thermistor type temperature sensor.
Description [Hide]
Detecting temperature changes has never been easier. Well, you can poke your nose outside and make a guess, but how accurate is that?
The MCP9700 is a thermistor temperature sensor that outputs 10mV per °C. For example, it outputs 0.5V at 0°C, and 0.75V at 25°C. This is a simple measurement to convert using any microcontrollers analog-to-digital function.
Being a LilyPad module, it's designed to be sewn into clothing. Measure body and ambient temperature, and have it toggle on your self-designed personal air-conditioning unit!
Dimensions:
- 20mm outer diameter
- Thin 0.8mm PCB
Documentation [Hide]
- [Data Sheet]: MCP9700 Datasheet
- [Schematic]: LilyPad Temperature Sensor Schematic
