SparkFun DC/DC Converter

50515

21.95 USD
Qty
Price
1
$21.95 ea.

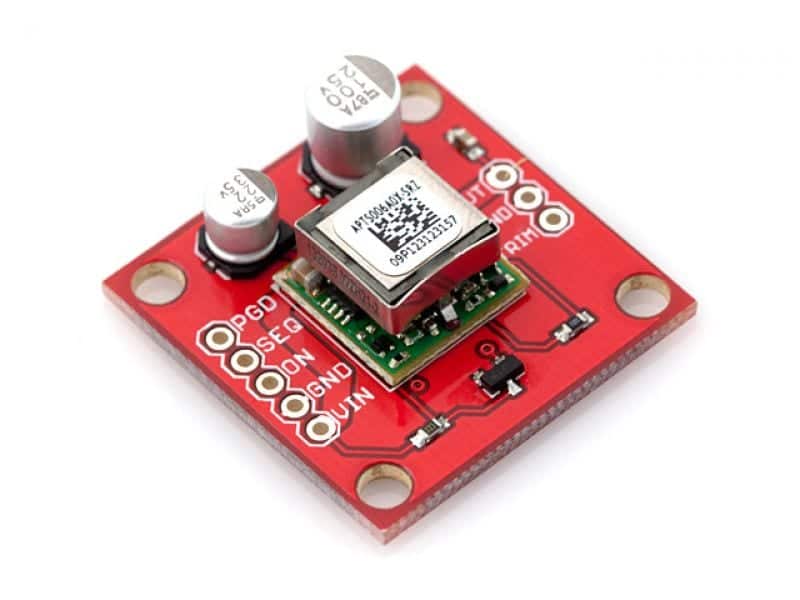

Need a tidy DC-to-DC converter? This SparkFun breakout board offers 6 amperes of conversion, taking any DC voltage between 4.5-14VDC, and turning it to a selectable voltage between 0.59 and 5.5VDC.


Description [Hide]

SparkFun adds to the collection of useful breakout boards with a non-isolated, 6A DC-to-DC Converter Module. The module can convert any DC voltage between 4.5-14VDC to a selectable voltage between 0.59 and 5.5VDC.

Set the desired voltage with a resistor between the Trim and GND pins - that's it. For example, to get a 5V output, use a 1.34kΩ resistor. Use a 2.2kΩ to get approximately 3.3V. All details are in the module's datasheet.

For added convenience, you can toggle the power via the board's ON/OFF pin (high=on, low=off)

Just add your resistor, and you're converting DC!

Features:

  • 4.5-14V Input voltage
  • 0.59V-5.5VDC Regulated output
  • 6A max output current
  • Low output ripple and noise
  • -40C to 85C operating temperatures
  • All pins of converter module broken out to 0.1" headers
