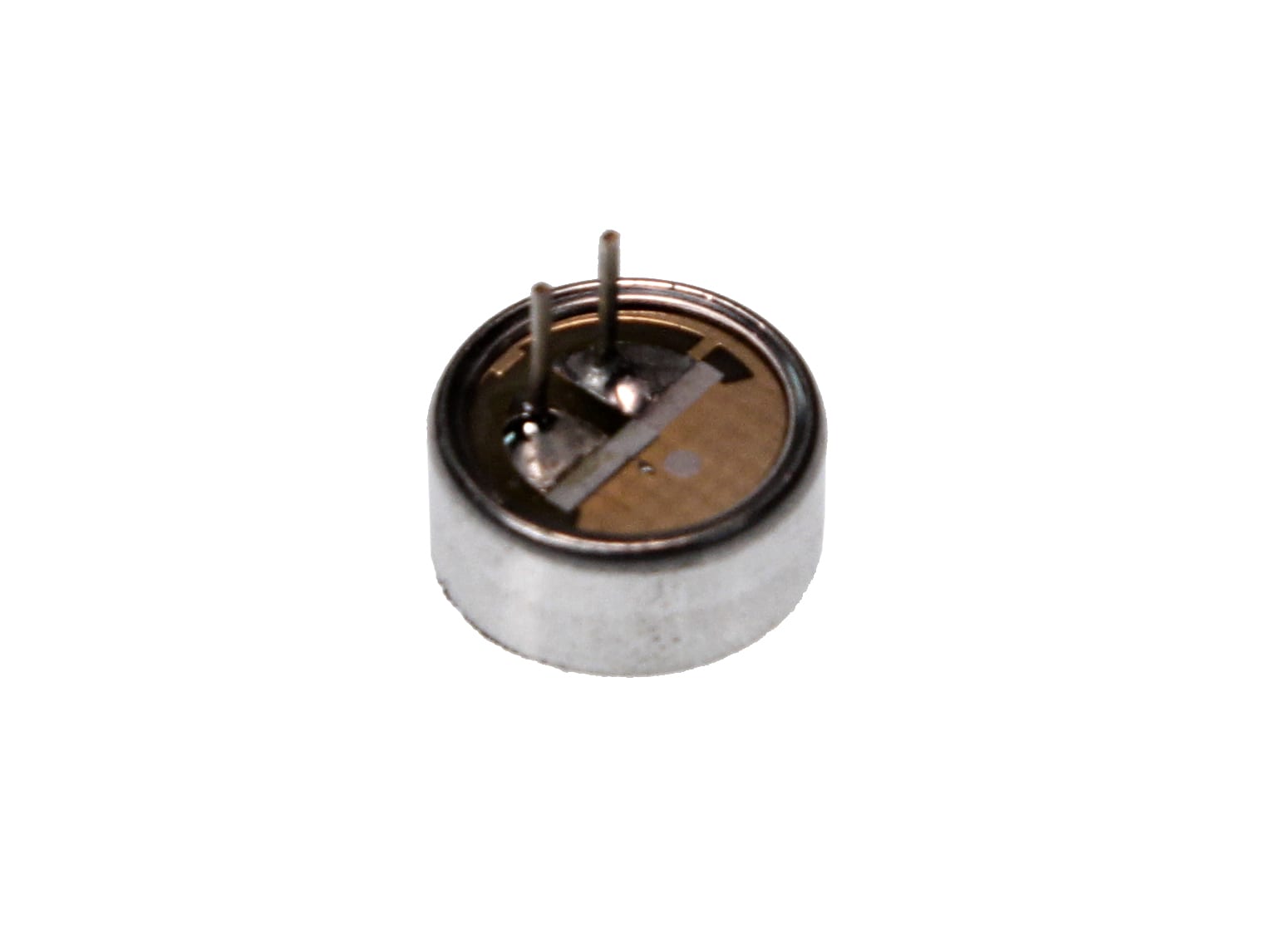

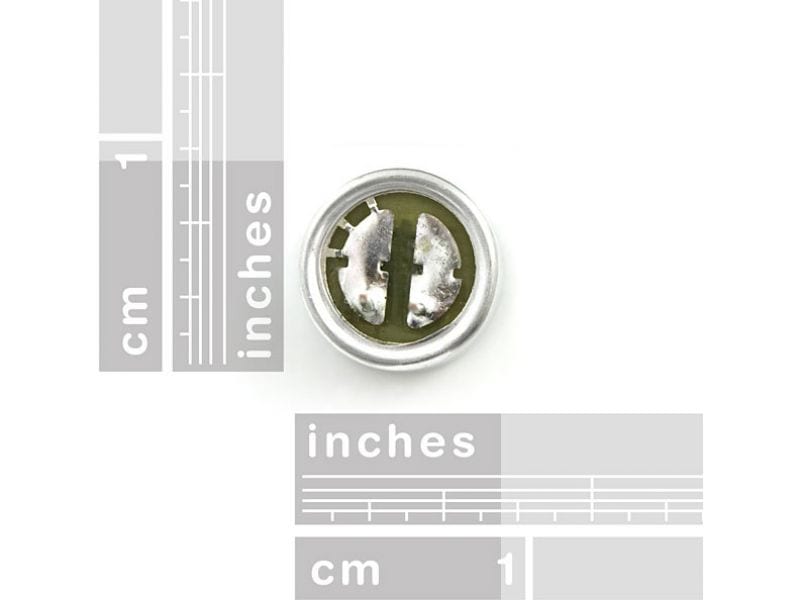

Electret Microphone

50404

1.25 USD
Qty
Price
10
$1.13 ea.
100+
$1.00 ea.

Small electret microphone. Useful in acoustic and audio applications, voice recordings.


Description [Hide]

Features:
Sensitivity:                       -44 dB (0 dB = 1V/Pa)
Impedance:                       2.2 kOhm
Directivity:                        Omni-Directional
Current consumption:         0.5 mA
Frequency Range:             100...10 000 Hz
Frequency Response:        +5...-7 dB
Weight:                             less than 1g
Operating Voltage:             3...10 V DC
