MEMS microphone board

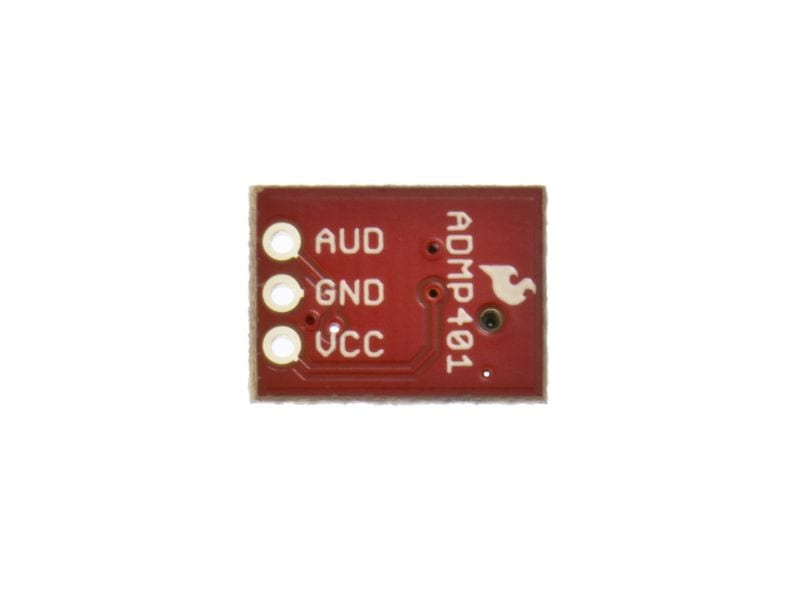

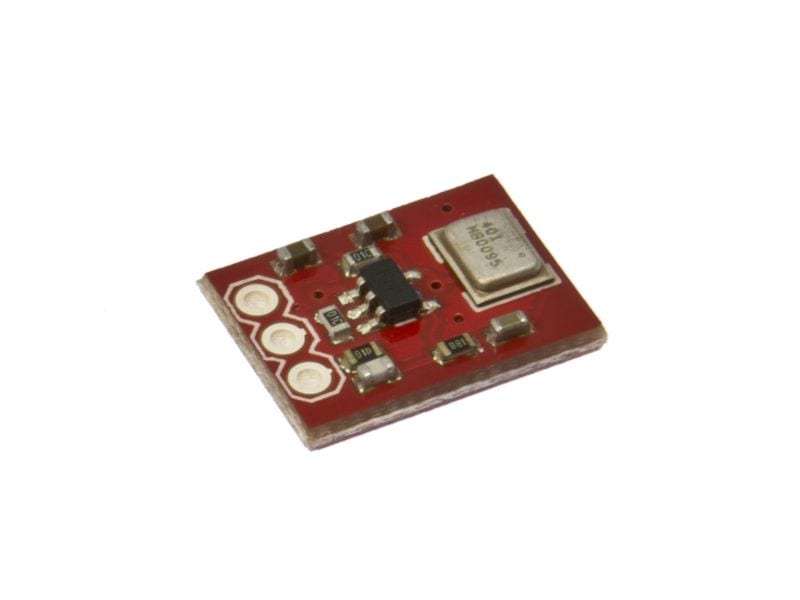

This Sparkfun breakout for the ADMP401 MEMs microphone makes it easy to add the quality sound reception found in most cellphones to your project. It's super tidy, and sits flat for easy addition to your enclosure.

The breakout board's amplifier has a gain set to 67, which is well suited to the microphone's requirements. The output is set up to float at 1/2 Vcc (half the power provided) at quiet levels, and peaks at +/- 200mV when subjected to a speaking voice an arm's length away.

Specifications:

• ADMP401 MEMS microphone module
• 67 gain
• -3dB roll off at 100Hz and 15kHz
• 1.5 to 3.3VDC supply voltage
• Should comfortably output 40mW
• SNR of -62dBA

• [Schematic]: Schematic - June 2010
• [Data Sheet]: Datasheet - 2010
• [Support Software]: Eagle Files
