AnyVolt Micro Universal DC-DC Converter

50225

$19.99

USD

Qty
Price
1
$19.99 ea.

The AnyVolt DC-DC converter is small, powerful, and very useful for applications needing efficient voltage switching. The guys as Dimension Engineering know their stuff!


Description [Hide]

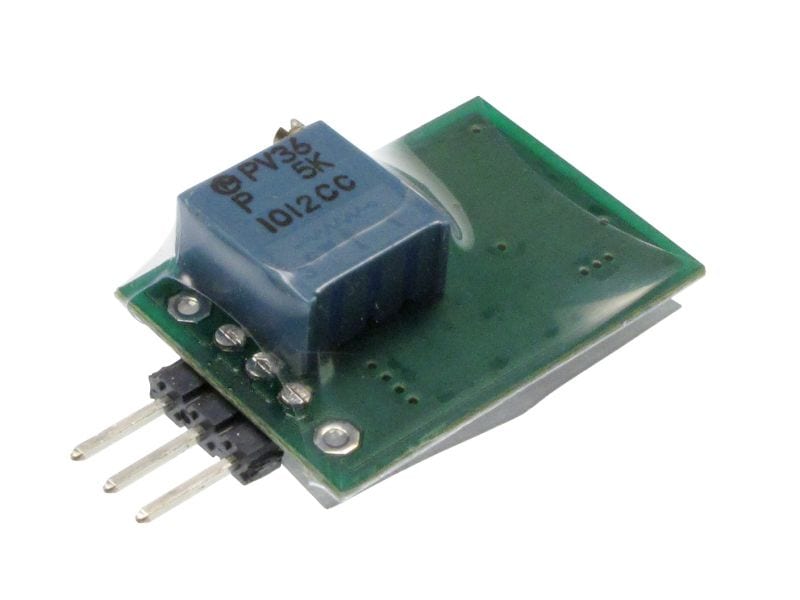

The AnyVolt Micro is a miniature step-up / step-down switching DC-DC converter. The output is adjustable from 2.6V to 14V and currents up to 0.5A can be drawn. AnyVolt Micro is useful when you need to step from a lower voltage to a higher voltage, or when your input voltage occasionally dips below the output voltage.

The output voltage is set with a small screw potentiometer on the side of the AnyVolt Micro. Once the output voltage is set, it does not matter whether input voltage is higher, lower, or the same as the desired output i.e. there is no dropout voltage. The AnyVolt Micro is pin-compatible with the common 78XX series of linear voltage regulators, so it will work with breadboards and other popular prototyping methods.

AnyVolt Micro is very different from any other DC-DC converter on the market so please read the entire datasheet thoroughly before buying or using one. AnyVolt Micro is the smaller, lighter and cheaper successor to AnyVolt Mini. It also adds thermal, overcurrent and short circuit protection, making it very hard to kill (like zombies).

Specifications:

  • 78xx IC compatible footprint
  • 2.6 to 14VDC output voltage
  • 2.6 to 12VDC input voltage (input can be higher or lower than output)
  • Up to 77% efficiency
  • 500mA continuous current at 3.3V from 5V input (falls to 134mA at 14V output - see documentation for full voltageécurrent specifications)
  • Less than 0.50mV ripple
  • 3g
